4. OPERATION (Type 2)
4.1 Control Panel

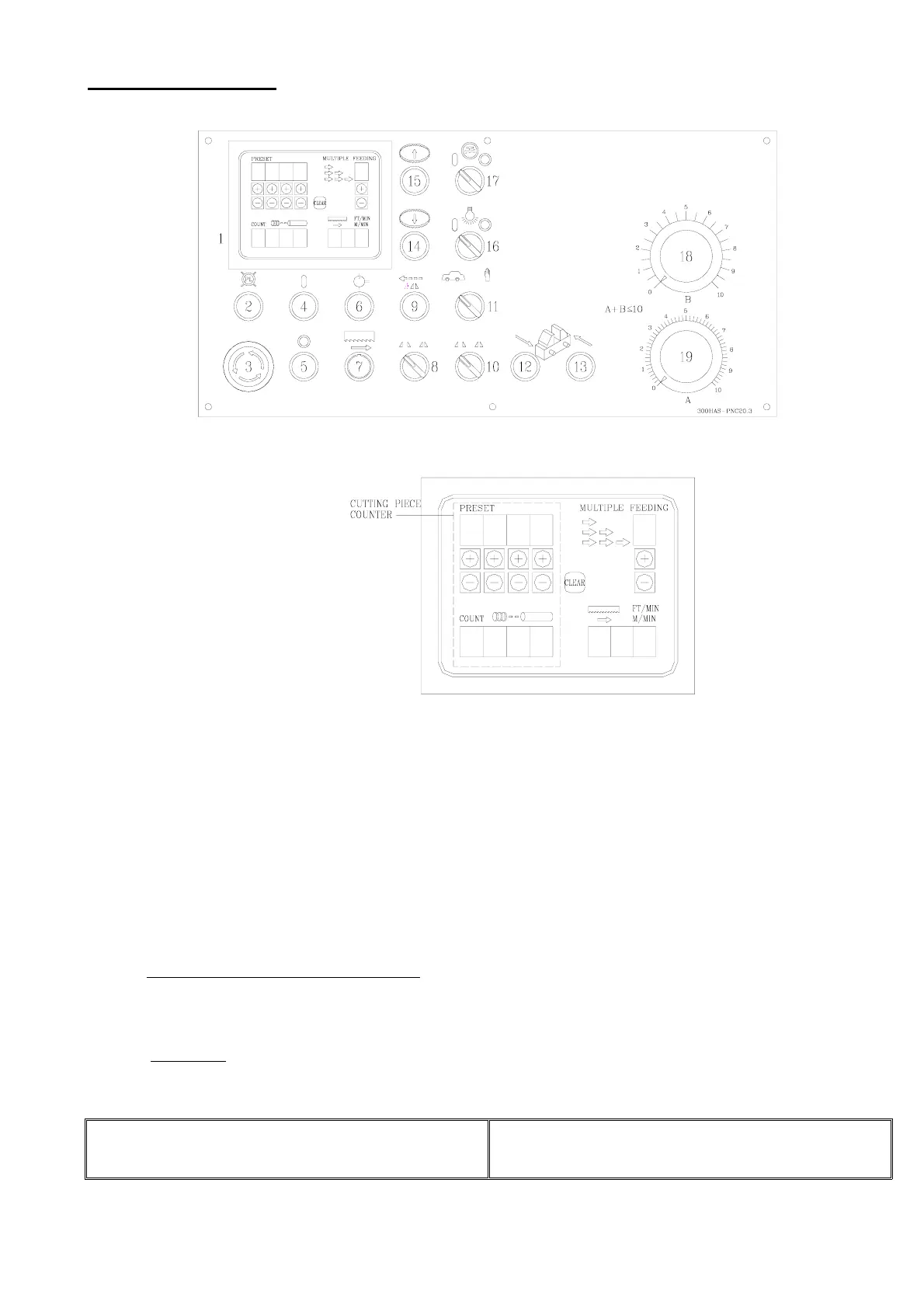

(1) PNC Control Panel
Cutting Piece Counter – This counter is used to preset the number of cuts required on the automatic
operation. When the counter reaches the preset number, the machine stops automatically . To activate the
counter, preset the counter switch with number at least “1”.
Clear – This key is used to clear the counted number cut already and to have new number input available.
Multiple stroke feed counter – This counter makes it possible to multiply the number of index cycles
when off-cut pieces longer than 500mm are required. Maximum 9-time stroke can be set.
Blade speed LED-Display -- This blade speed tachometer indicates how fast the saw blade is running in
meter per minute by LED display.
To see digital cut length counter
L (length req.) + K (blade thickness)
S =
N (multiple feed times)
- K
EXAMPLE:
1200 +1.5
S =
3
-1.5 = 400.5-1.5 = 399
L = Required cut length N = Multiple feeding times
K = Cutting loss ( Blade thickness ) S = Digital counter length setting
