10. VICTRON Inverter CAN Communication Setting

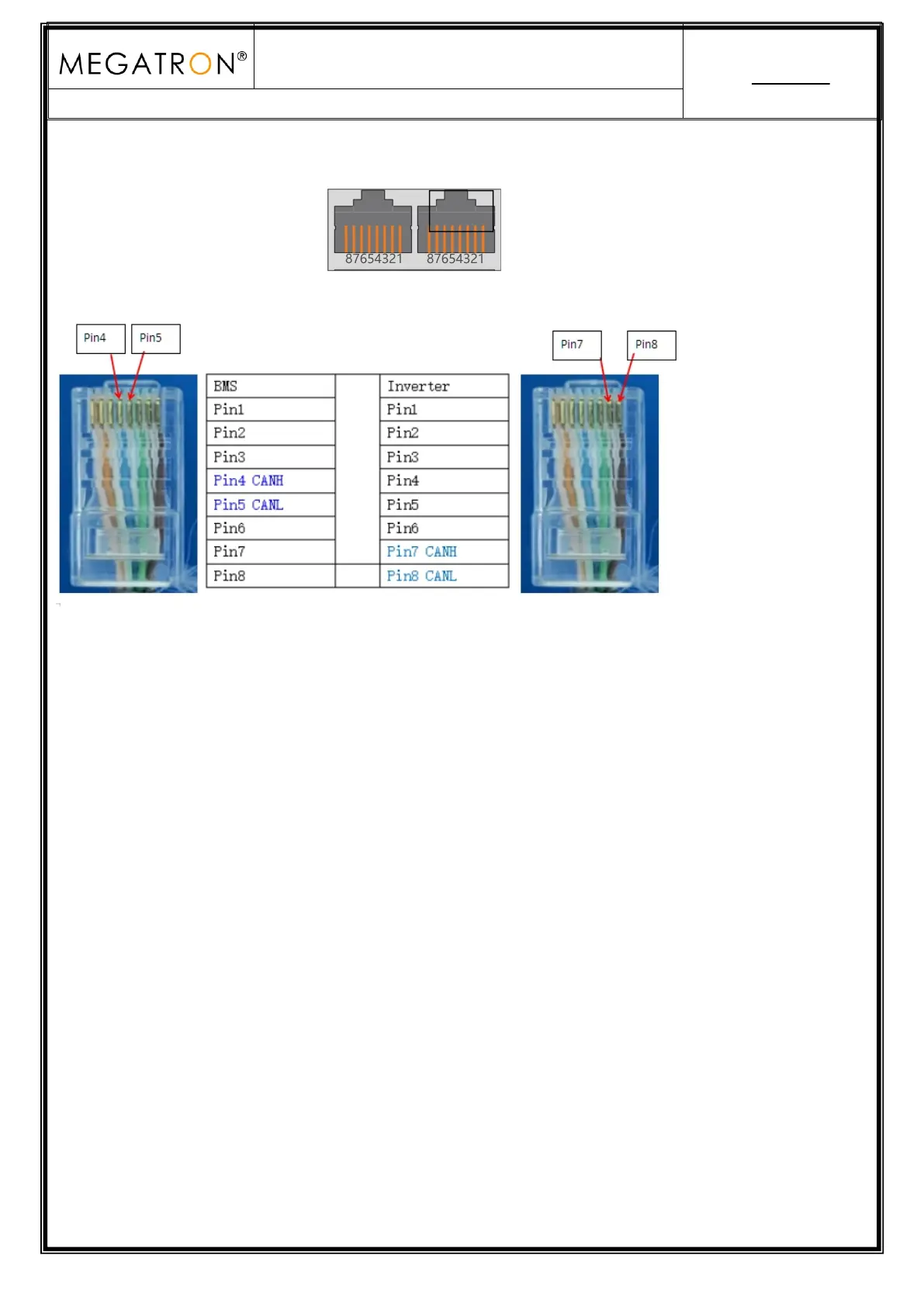

Dual RJ45 Port(RS485 & CAN):
Process of installation:
Step 1. Use the CAN cable to connect inverter and lithium battery .
Step 2. Press the button to start lithium battery , power output ready . Replace the battery BMS
protocol to “VICTRON” by BMS tool and host computer.(Please refer to page 4,point 4.2)
Step 3. Turn on the inverter (Warning: Turn on the battery first and then the inverter).
Step 4. The inverter setting refer to the user manual of Victron, this setting is available in the
Settings -> DVCC menu on the GX device.
