Delta Control User Interface
!
AVTMDELTA4000-EN Rev 6 April 2018
33

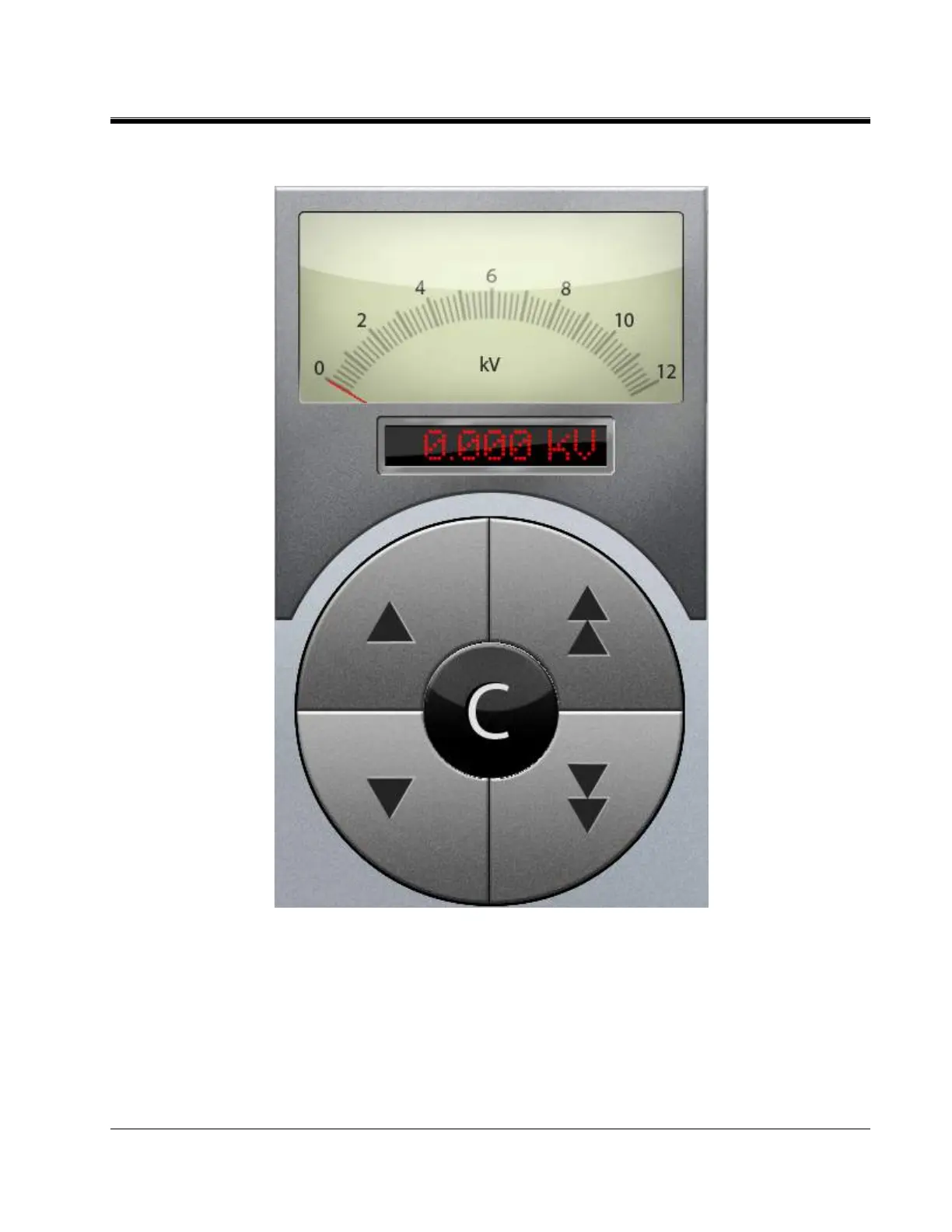

Voltage Control
The voltage control has three sections.
The top section is the voltmeter that shows the voltage in real time. Under the
voltmeter is a display showing the set voltage (target voltage). You can click on
this display to enter the target voltage or increase or decrease it using the buttons
in the centre control. Below the display area is a round control where you can
manually adjust voltage up or down. The single arrows step up or down in steps
of 100 volts while the buttons with two arrows steps up or down in steps of 1000
volts. The C button in the middle clears the selection.
