High Voltage Unit Connector Panel

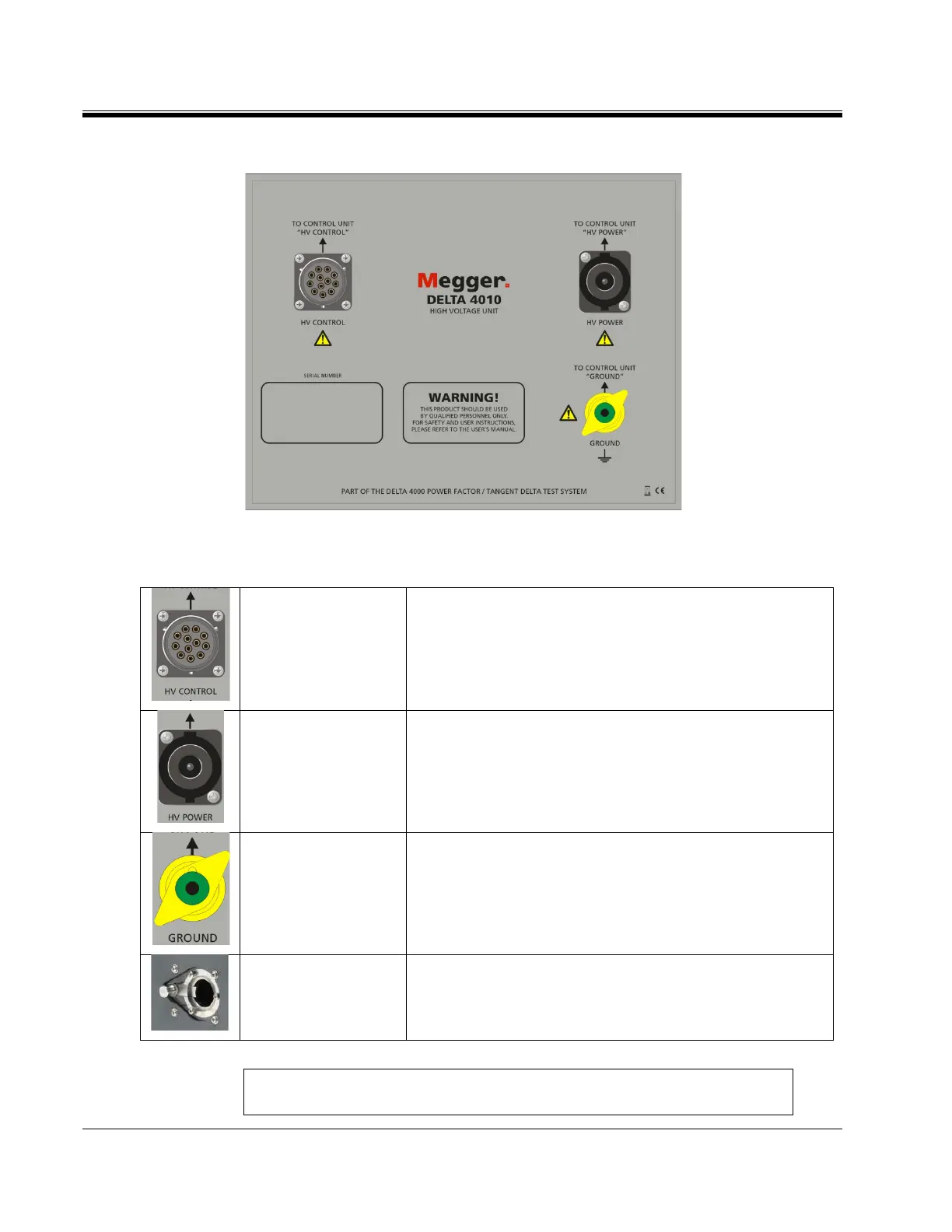

Figure 2: Connector panel – HV Unit

HV CONTROL

Receptacle for the control cable between the control and

HV units

HV POWER

Receptacle for the power cable between the control and

HV units

GROUND

This wing nut is for connecting an additional safety

ground between the control and HV units

HV Output

Receptacle for the high voltage cable (located on the

side exterior of the equipment box) Comes with a spring

loaded lock mechanism to secure HV cable.

NOTE: The HV cable is connected on the other side of the unit. Note the sliding

pin to secure the cable. Do NOT use excessive force to unplug.
