Delta Control User Interface
!
AVTMDELTA4000-EN Rev 6 April 2018
39

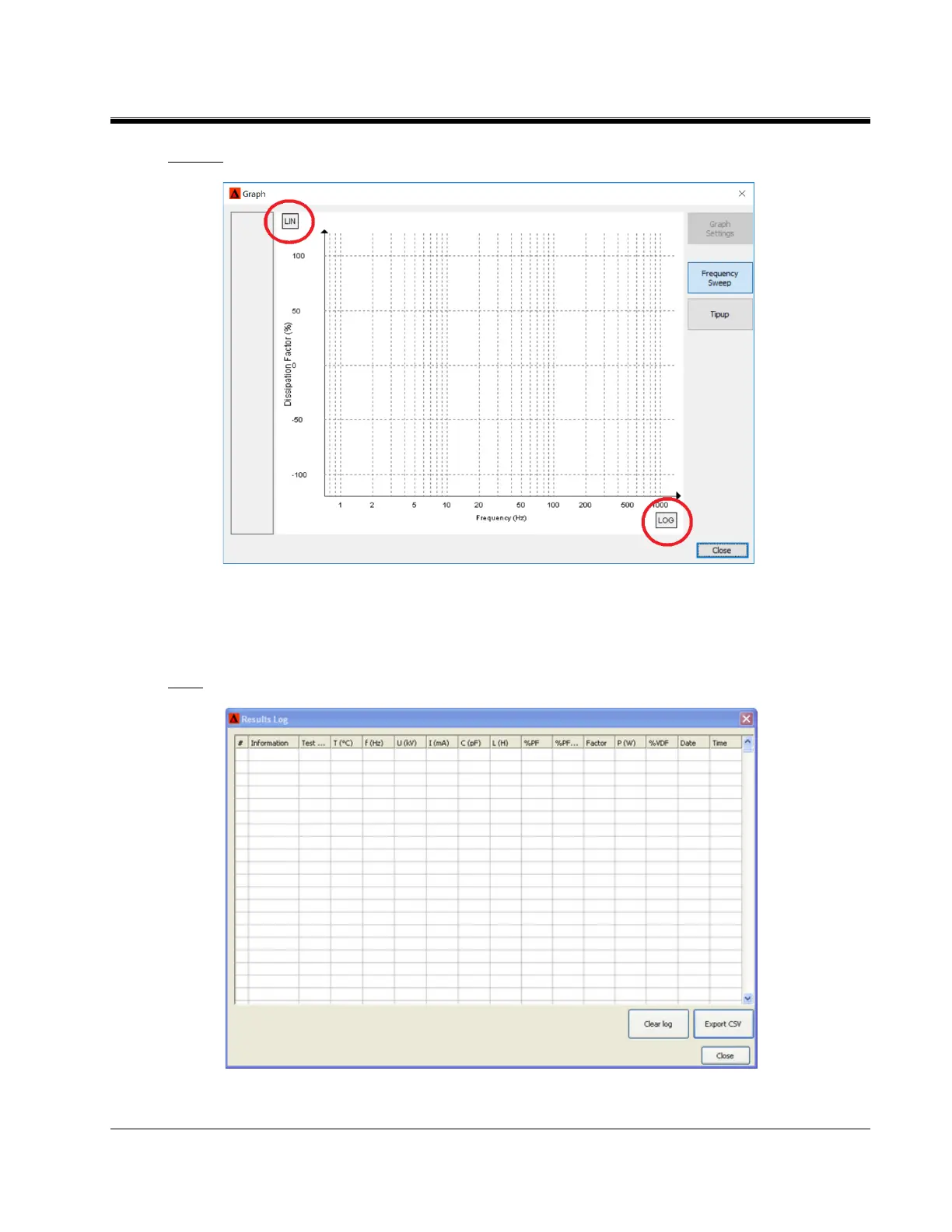

Graph
The graph dialog shows graphs of the measured values. Results can be shown in
log as well as linear scale for either axis and autoscales as results appear. Numeric
results of test can be seen under LOG.
Log
The log shows all measured values from the performed tests.
