8
Accessories
Supplied with Instrument Part Number
User Guide 6172-064
Mains power cord 25424-860
O
il test vessel fitted with spherical electrodes 12,7 mm diam. 6231-445
Oil test set preparation kit 6121-486
comprising:-
two magnetic stirrers
pair of cylindrical electrodes 1 inch diam.
pair of mushroom electrodes 36 mm diam.
*electrode spacing gauges for 1 mm (0,04 inch), 2 mm (0,08 inch),
2,5mm, 2.54mm (0,1 inch) and 4,0 mm (0,16 inch)
Protective cover 5340-334
Optional
Voltage calibration meter (0-100kV) OTS/VCM100
Oil test vessel fitted with mushroom electrodes 36 mm diam. 6231-447
Oil test vessel fitted with cylindrical electrodes 1 in diam. 6231-446
Oil test vessel for ASTM D1816 specification (motorised stirrer) 6111-146
A pair of mushroom electrodes 6220-482
A pair of cylindrical electrodes 6220-483
A pair of spherical electrodes 6220-484
A pair of cylindrical electrodes with 0,5 mm edge radius for use with any test vessel 6220-538
Printer paper 57,5 mm wide, 15 m long, 50 mm diam. 25995-001
Printer ribbon Epson part no. ERC-09 (IRC160) 25995-002
Printer lead, 9 pin female ‘D’ connector to 25 way male ‘D’ connector 25955-026
PC Download lead
25955-025
T
ransportation trolley
6320-224
Note:- Capacity of oil test vessels is 400 ml, except for the ASTM D1816 vessel which is 800 ml.
*
The new spacer gauges are no longer big enough to have the diameter marked on them.
They now
have a series of grooves cut into them to state the difference between them which is as follows:
1 rings - 1mm
2 rings - 2mm
3 rings - 2.5mm
4 rings - 4mm

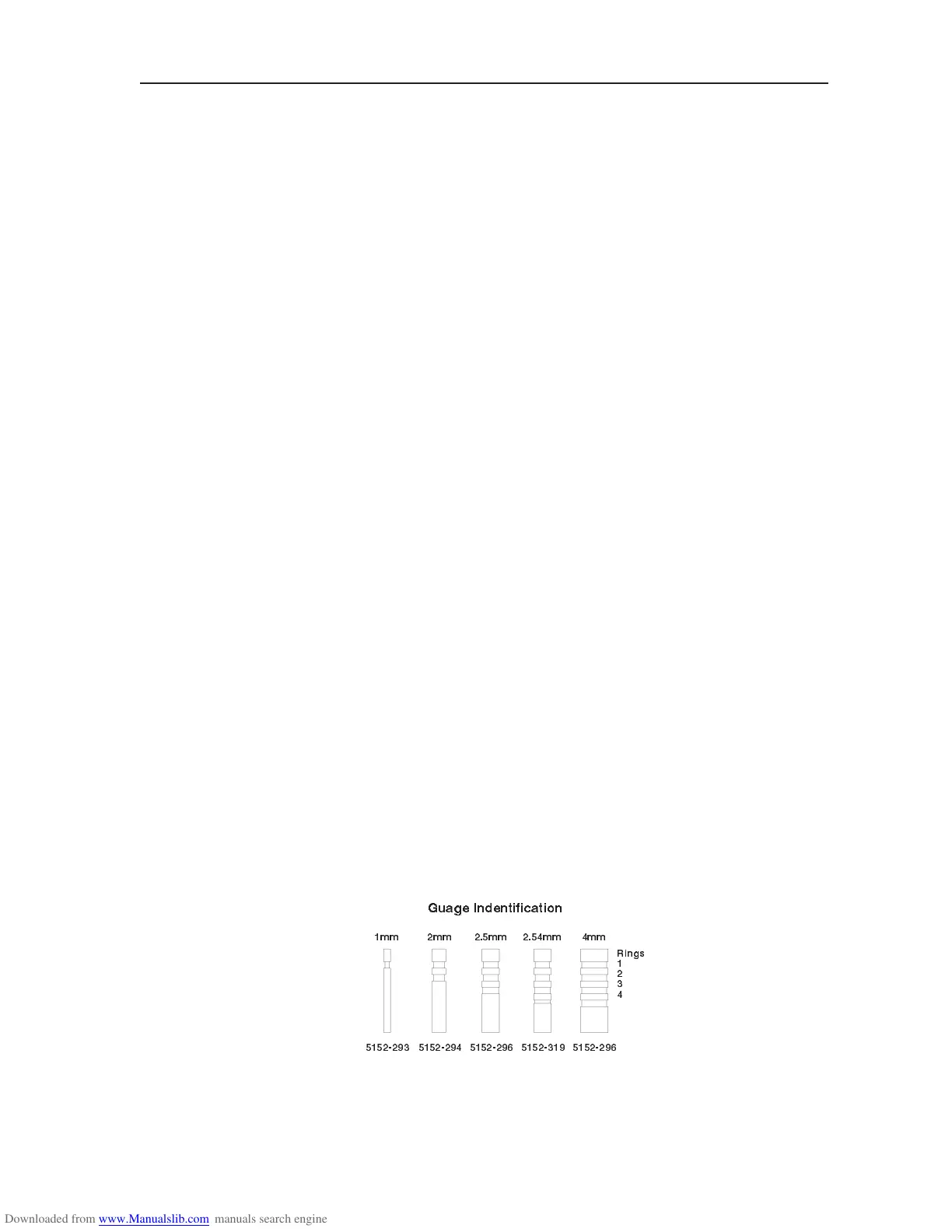

Guage Indentification
5152-293
5152-294
5152-296 5152-319 5152-296
1mm 2mm 2.5mm 2.54mm 4mm
Rings
1
2
3
4
