Megger S1-1568 User Manual

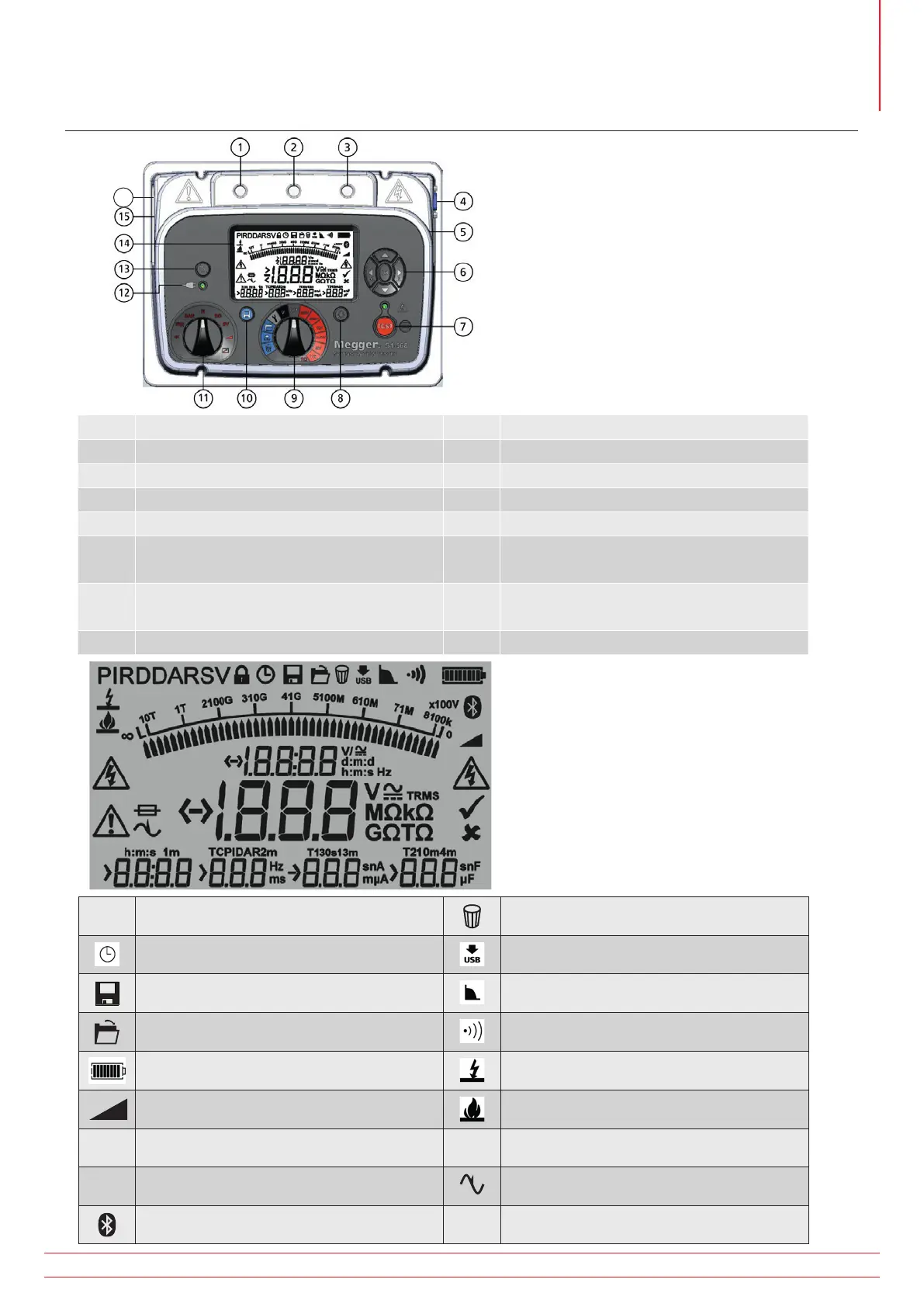

4. Instrument Controls and Indicators
1. Positive (+) terminal 9. Range rotary switch
2. GUARD terminal 10. Save button
3. Negative (-) terminal 11. Test mode rotary switch
4. 9-pin remote control socket 12. LED indicating line power / mains
5. USB device interface 13. Filter button
6. Navigation/OK buttons and select burn/
breakdown (Brd)
14. Display
7. TEST button with associated HV warning
lamp
15. Power socket
8. Backlight button 16. Functional earth terminal – S1-1568 only
VL
User lock voltage Delete records
Timer Download via USB
Save Filter
Open records Alarm
Battery Breakdown mode
Ramp test Burn mode
F
Danger HV
G
Refer to manual
f
Fuse Noise detected
Bluetooth
®
16
www.megger.com S1-568 / S1-1068 / S1-1568
7
Instrument Controls and Indicators

Megger S1-1568 Specifications

General

Brand	Megger
Model	S1-1568
Category	Test Equipment
Language	English
