Information subject to change without notice 9
15. Beacon Connection
Optional accessory
Functions similar to Warning Indicator
16. Side panel reference
Quick reference for the various connections

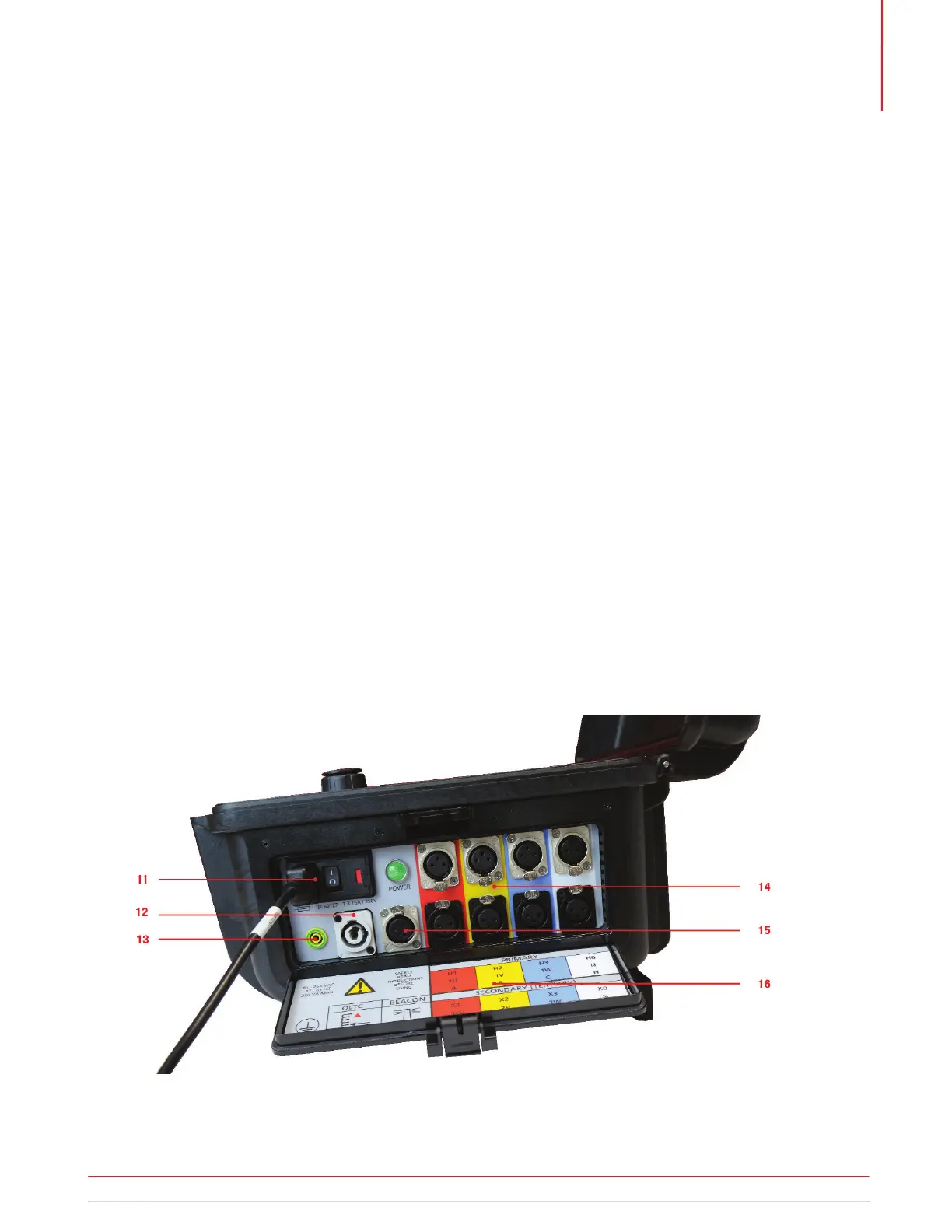

1.6 Side Panel
11. Power Input
IEC 320 interface to mains power.
Integrated fuse holder and filter.
O = Off
I = On
12. OLTC Connection
Used in conjunction with Manual OLTC Control
13. Ground
14. Lead Connections
Latching connectors (press tab to release)
Color coded windings
silver/black for primary/secondary
Color coded phases
red, gold, blue, white
