U.FL-LP series connecting line can be an alternative to UF.L-R-SMT.

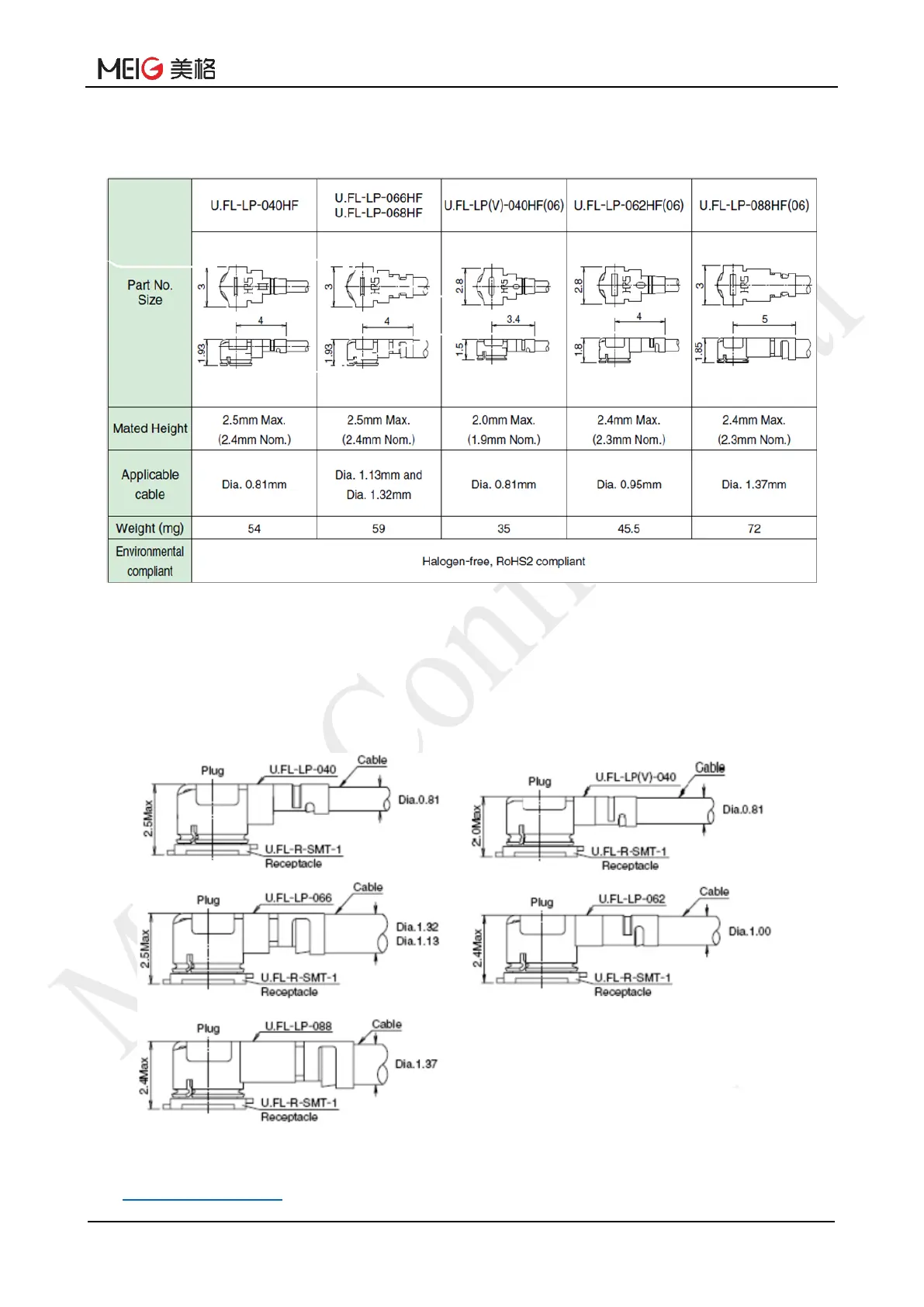

Figure 22 UF.L-LP Series Connecting Line
The following figure shows the installation dimension of connection line and connector:
Figure 23 Installation Dimension (unit:mm)
Visit http://www.hirose.com for detail information.
