MEIG SLM156 - Mechanical Dimensions; Mechanical Dimensions of the Module

MeiG_SLM156_Hardware Design Manual
MeiG Smart Technology Co., Ltd
54/63
7 Mechanical Dimensions
7.1 Mechanical Dimensions of the Module

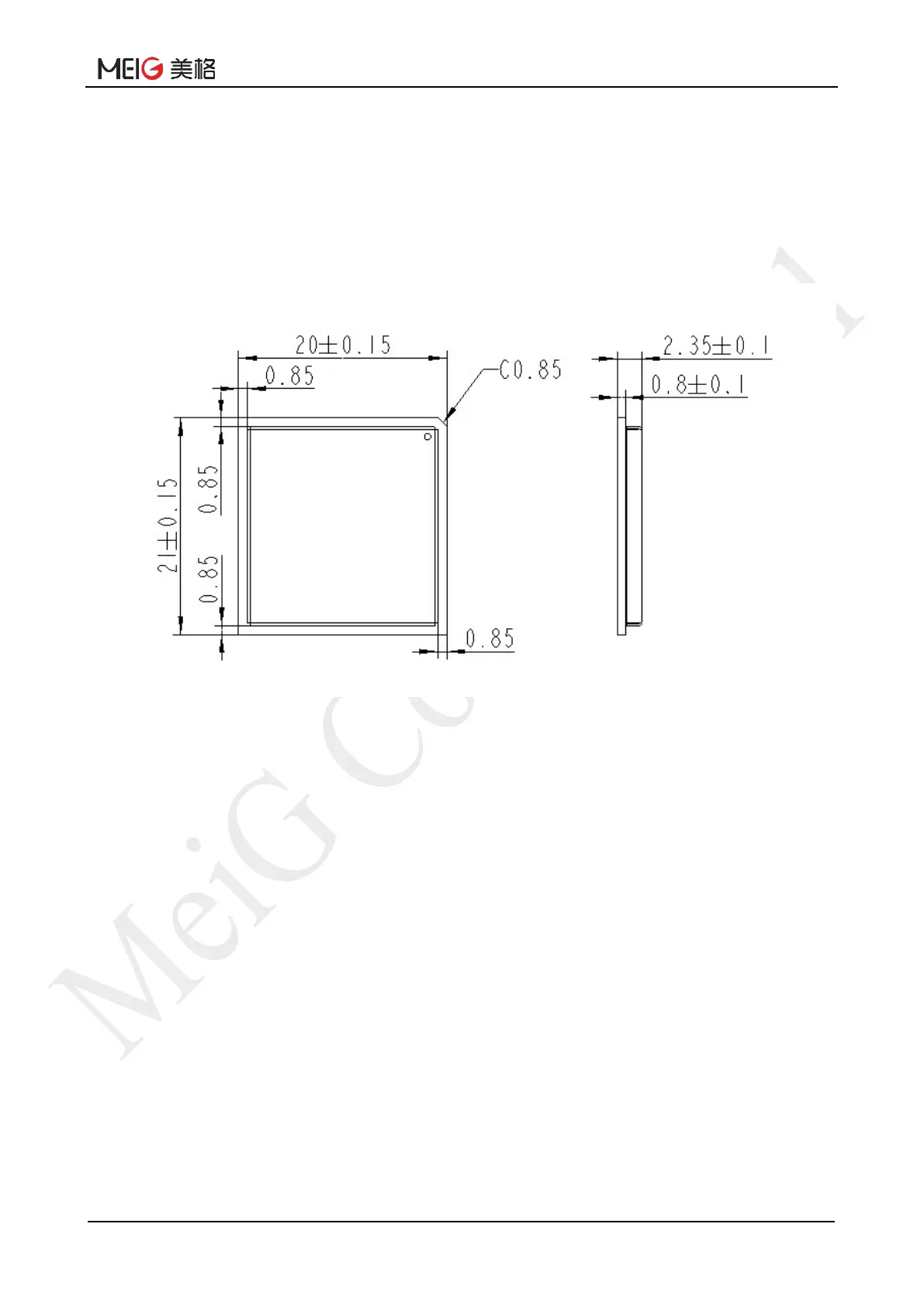

Figure 24 Dimension of the Module from Top View and Side View (unit: mm)
