5.3.2 Recommended RF Connector in Antenna Installation
If you choose to use RF connector to connect antenna, Hirose’ UF.L-R-SMT connector is
recommended.

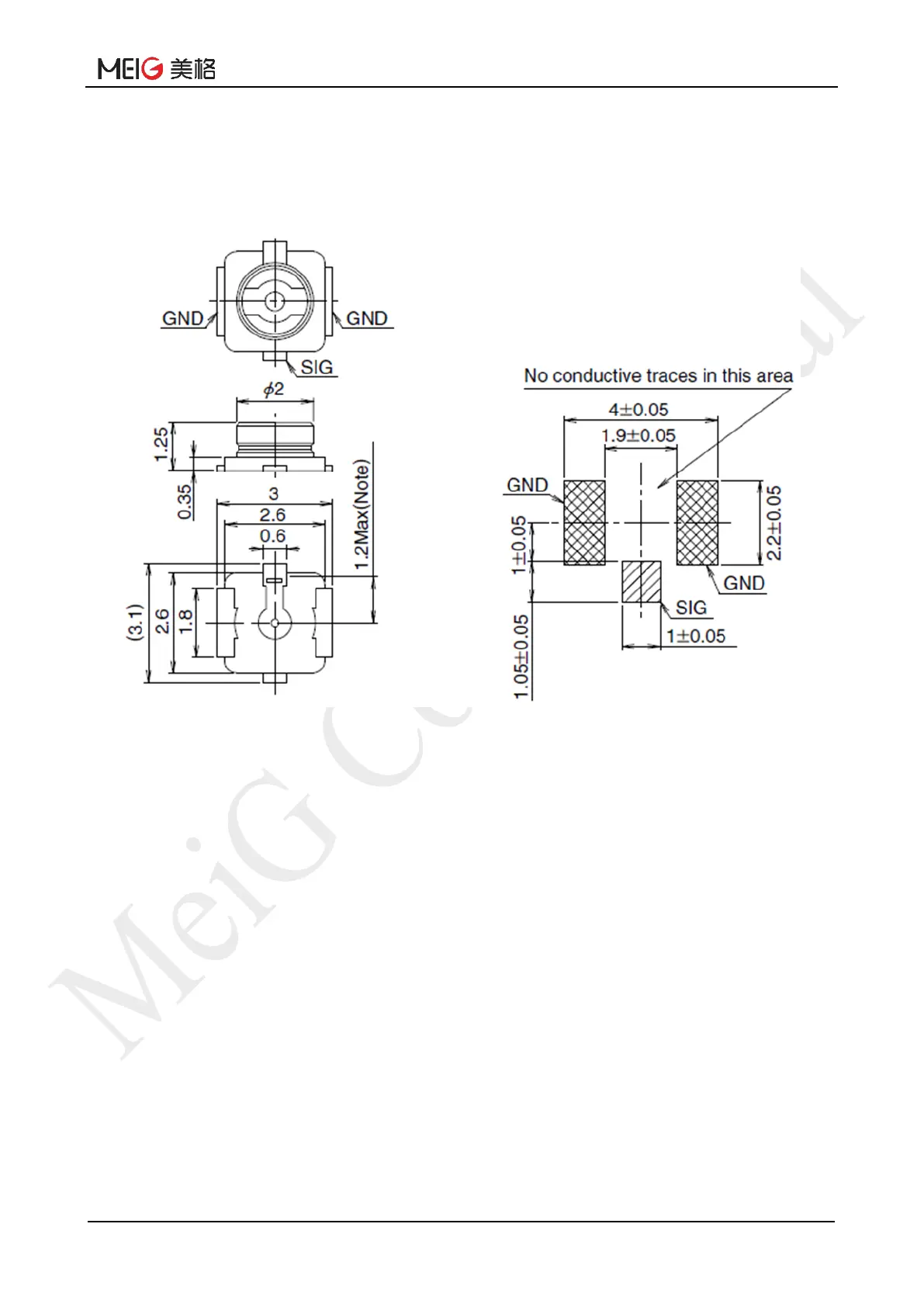

Figure 21 Connection Dimension of UF.L-R-SMT (unit: mm)
