FMT24-SUPER
Owner’s manual & Technnician Settings
Pg. 5

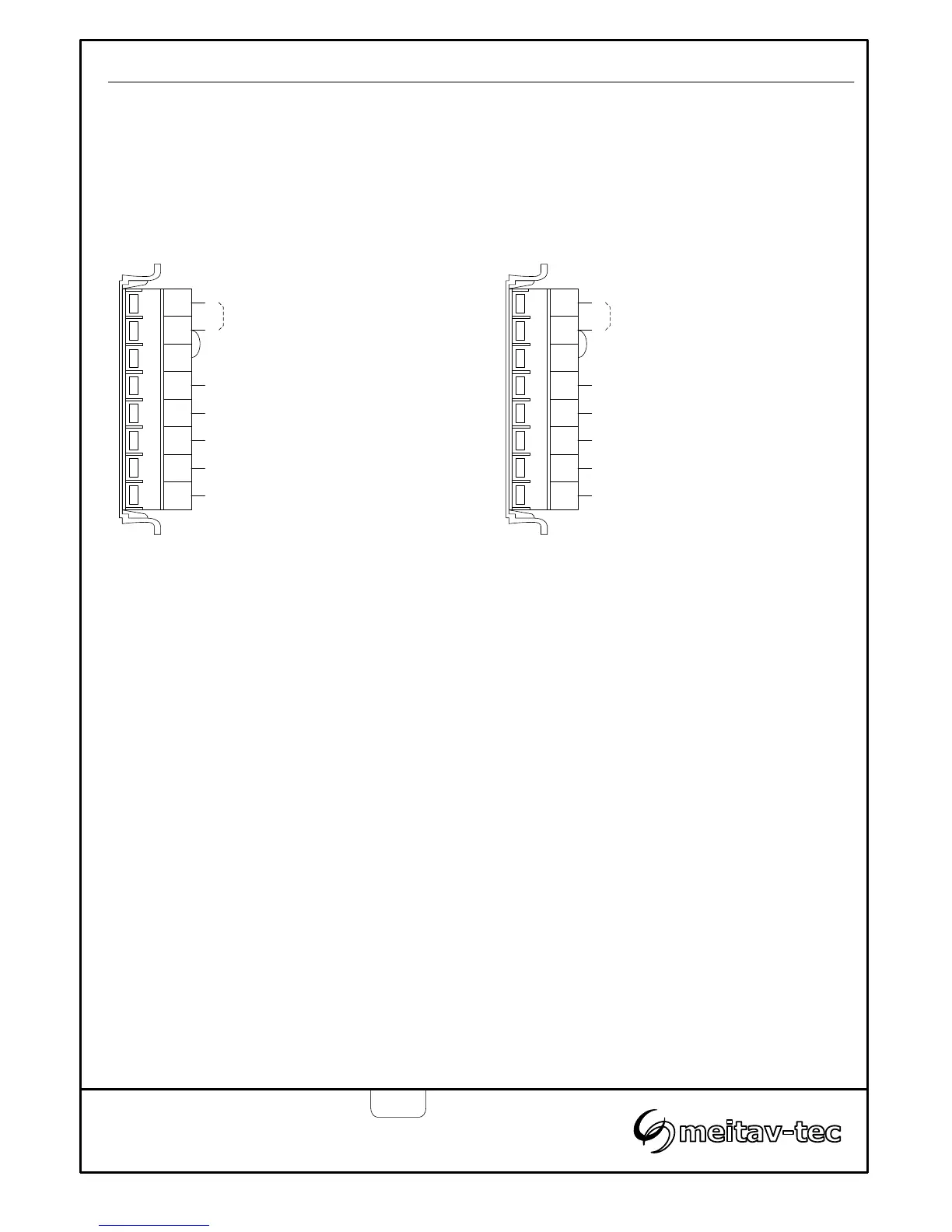

Wiring
Before connecting or disconnecting any wires, ensure that all power supplies have been switched off and all
wires are potential-free to prevent equipment damage and avoid electrical shock.
Do not run wiring close to transformers or high frequency generating equipment. Complete and verify all
wiring connections before applying power to the controller to which the module is connected.
C
RC
RH
G
W2
W1
Y2
Y1
Fan
Compressor 1
Heat element 1
Compressor 2
**Main supply 24VAC
Heat element 2
Notes:
1. For a non heat pump system with one heat element, leave terminal “W2” free.
2. When Emergency heat mode is selected, the compressor and heat pump will close and the heat
element will turn ON (Emergency heat is available in heat pump configuration only.
3. RC-RH, - When using one transformer, RC,RH terminals must be shorted.
C
RC
RH
G
W2
W1
Y2
Y1
Fan
Compressor 1
Heat pump
Compressor 2
**Main supply 24VAC
Heat element (2
nd
stage) (Emergency heat)
System without heat pump
(heat elements only)
System with heat pump
