FMT24-SUPER
Owner’s manual & Technnician Settings
Pg. 4
Installation
The FMT24-SUPER is designed for flush mounting in the room to be controlled. It should be located where
the occupant can easily read the LCD display and use the controls. The module should be placed in such
location which represents the room general conditions. Cold or warm air draughts; radiant heat and direct
sunlight should be avoided.
General points to follow:
- Disconnect power to the main board before installing the unit.
- The unit MUST be fitted into a standard electrical box (Carlon – B114R or similar)
- The unit should not be installed on an outside wall or where there is an air draft.
- The unit must not be exposed to a direct sunlight.
- The standard height to install this unit is 1.5 meter (5 feet) from the floor.

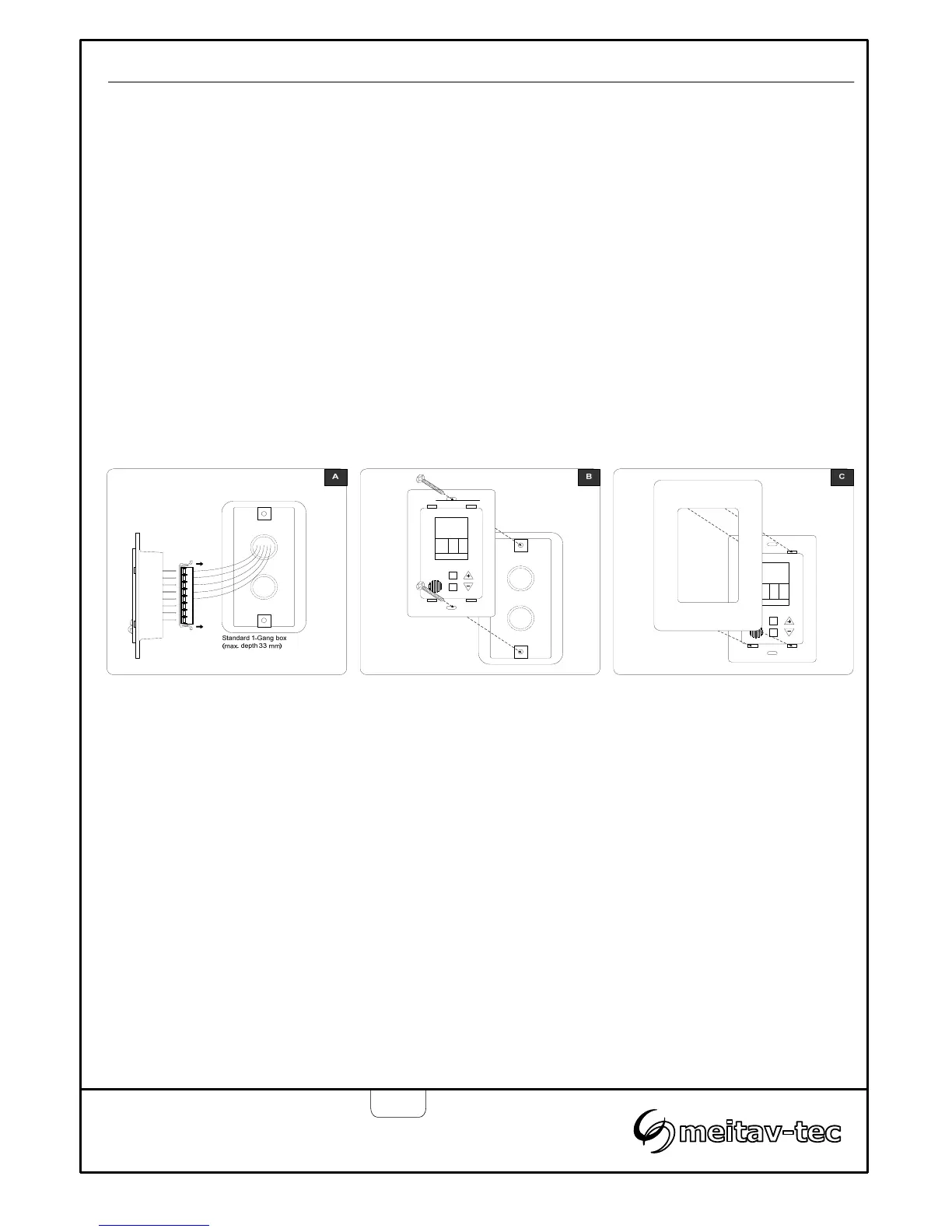

Installation procedure:
A. Connect the wires as shown in the enclosed wiring diagram. All terminals accept 1x0.5 mm
2
/24 AWG.
B. Place the thermostat in the electrical box and tighten up the 2 screws.
C. Adapt the front frame-panel into its place, by pushing it towards the wall.
