Brief description of how to
use this manual
This manual is designed to provide
you with a working tool to help you
easily operate and program the
Central Unit Applicator.
The installation, operating and
maintenance of the C.U.
Applicator each have their own
section.
At the beginning of the manual is a
Table of Contents in which all the
functions, all the assembly compo-
nents as well as all the necessary
operating and maintenance details for
any given moment can be found.
In addition a list of all the error and
alarm messages which could appear
while using the C.U. Applica-
tor has been added, as well as a list of
spare parts and an electrical system
diagram.
WE RECOMMEND THAT YOU
READ THIS MANUAL BEFORE
STARTING UP THE C.U.
APPLICATOR.
STRICT OBSERVANCE OF ALL
THE SAFETY RECOMMENDATIONS
AND DANGER WARNINGS MUST BE
FOLLOWED AT ALL TIMES.
1.
LED indicator of the component
whose temperature is displayed on the
screen. Tension resistance outlet
indicator
2.
Buttons for program selection and
modification of data that appears on
screen
3.
Screen display to show
information
4.
Selection buttons to the
temperature control components
5.
TIME MODE button to display or
to modify daily program
6.
Button with LED indicator for
manual start-up and shutdown of the
equipment
7.
Activate and deactivate button to
standby
8.
LED indicator to "Parent Machine
Interlock"
9.
LED indicator "pump activated"
10.
LED indicator "standby" status
I. 4

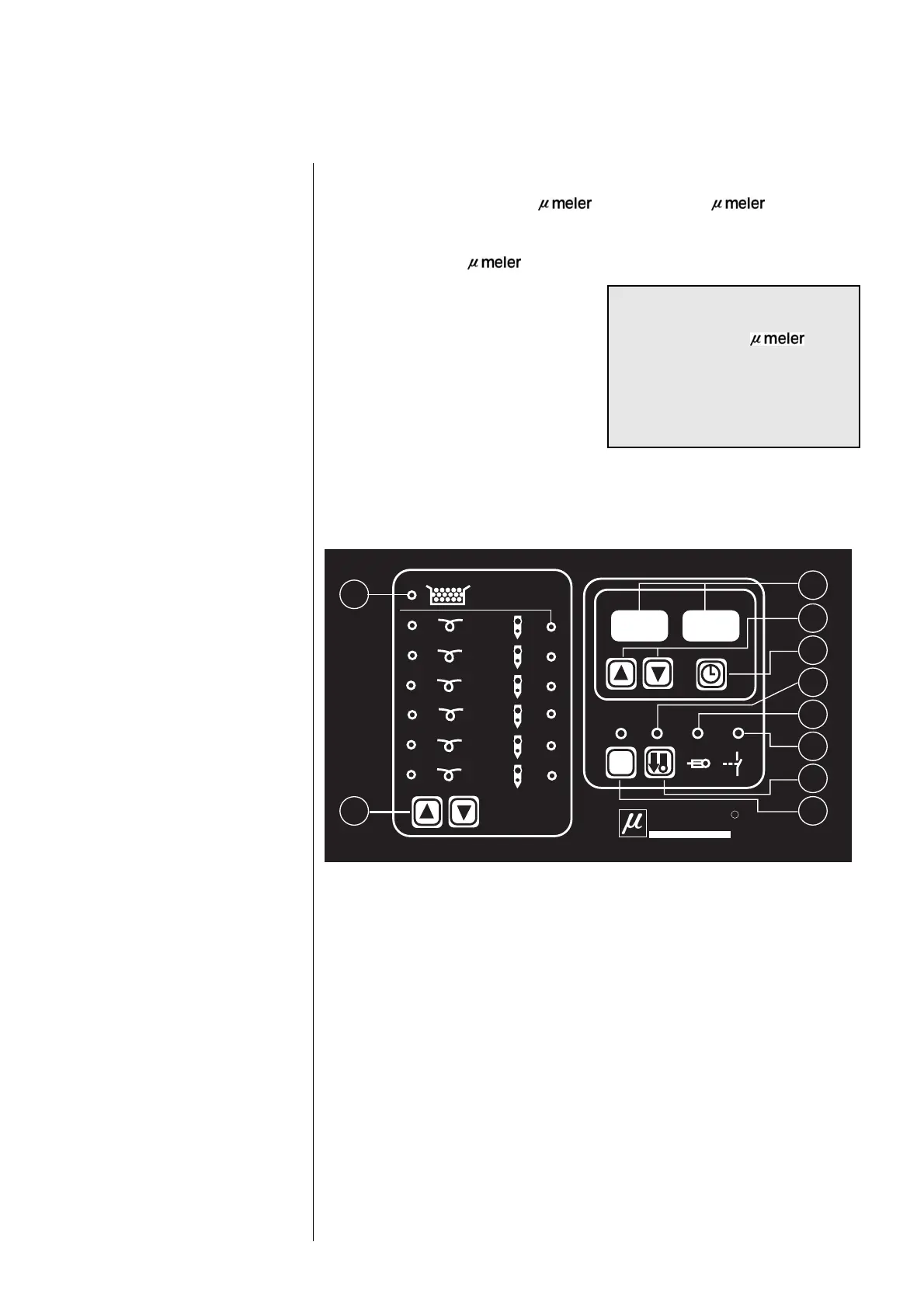

Description of the control
board of the ML-200 ST
Central Application Unit
