Locking Mechanism
3.8 SN2740/SN2410 Static Rail Kit
Kit OPN Rack Size and Rack Depth Range
MTEF-KIT-BP Short: 19.7"-23.6" (50 to 60 cm)
MTEF-KIT-SP Standard: 23.6"-31.5" (60 to 80 cm)

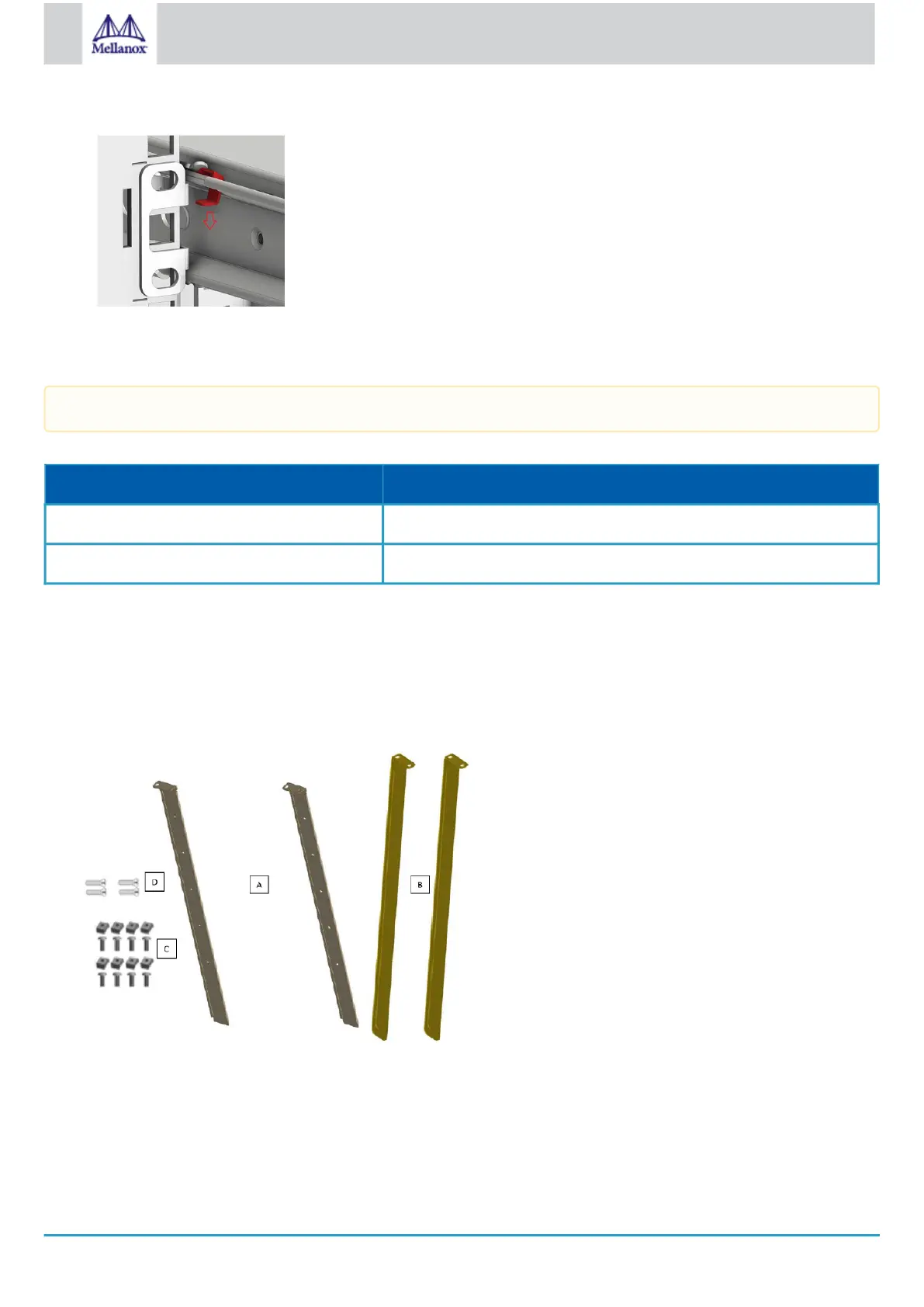

The following parts are included in the static rail kit (see figure below):
2x Rack mount rails (A)
2x Rack mount blades (B)
8x M6 Standard cage nuts¹ ² and 8x M6 Standard pan-head Phillips screws¹ (C)
4x Phillips100 DEG F.H TYPE-I ST.ST 6-32 X 1/4 screw with around patch (D).
¹ Other threads are available by special order: M5, 10-32, 12-24. ² G-type cage-nut is available by special order.
Rack Rail Kit Parts
Prerequisites
Before mounting the system to the rack, select the way you wish to place the system. Pay attention to the airflow within the rack
cooling, connector and cabling options.
While planning how to place the system, consider the two installation options shown in the Installation Options figure below, and
review the following points:
By default, the system is sold with the standard-depth rail kit. The short-depth rail kit can be supplied upon request.
