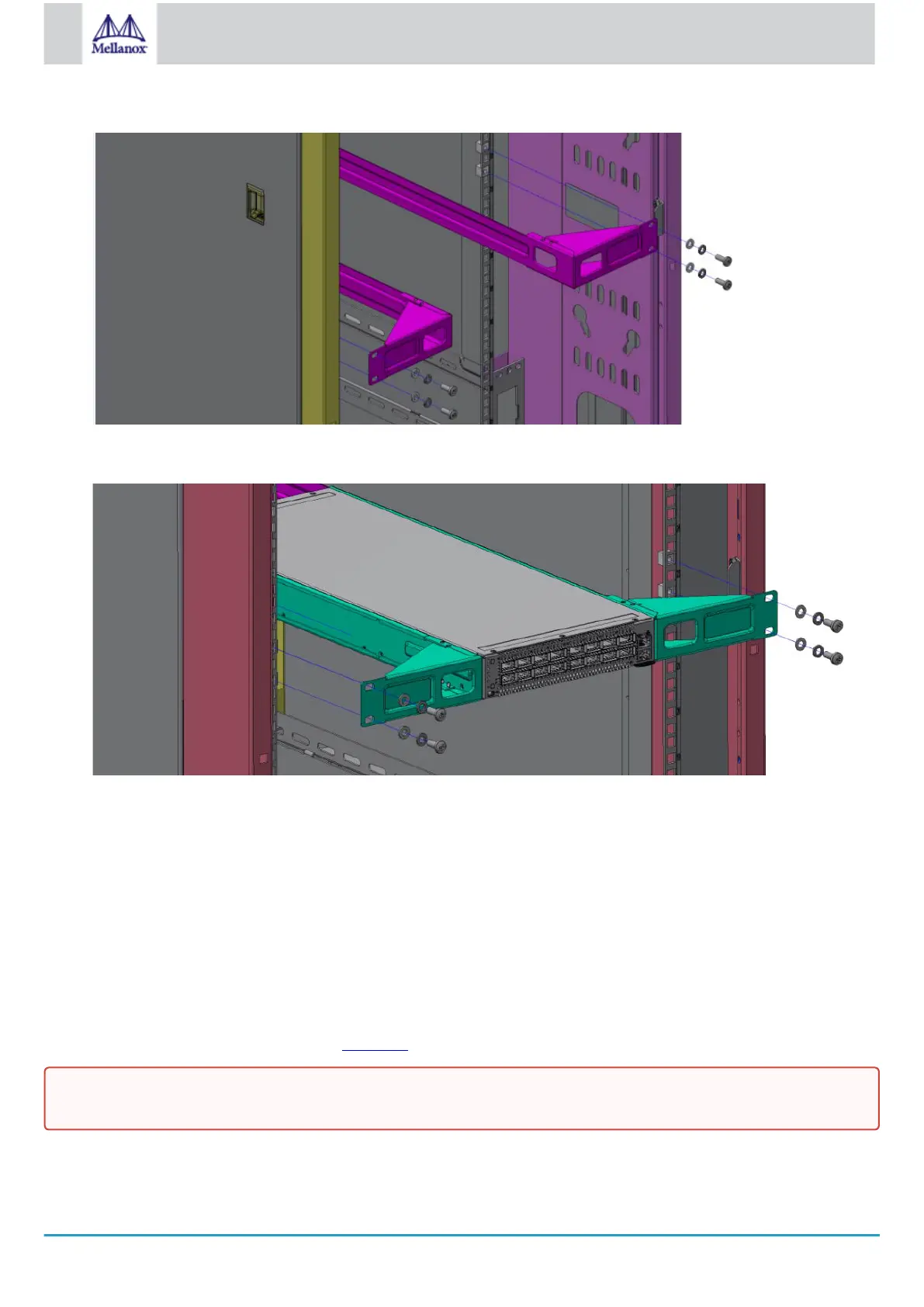

Attaching the Blades to the Rack
Mount the system into the rack enclosure by sliding the rails in the rack. Secure the brackets to the rack’s posts by inserting
four M6 screws and washers (C+D+E) in the designated cage nuts - 2 in each side. Tighten all screws.
Attaching the Brackets to the Rack
3.11 Cable Installation
All cables can be inserted or removed with the unit powered on.
To insert a cable, press the connector into the port receptacle until the connector is firmly seated. The LED indicator, corresponding to
each data port, will light when the physical connection is established. When a logical connection is made, the relevant port LED will
turn on.
To remove a cable, disengage the locks and slowly pull the connector away from the port receptacle. The LED indicator for that port
will turn off when the cable is unseated.
For full cabling guidelines, ask your Mellanox representative for a copy of
Mellanox Cable Management Guidelines and FAQs
Application Note.
For more information about port LEDs, refer to Port LEDs.
SN2700, SN2100 and SN2010 QSFP Cable Orientation
Do not force the cable into the cage with more than 40 newtons / 9.0 pounds / 4kg force. Greater insertion force may cause
damage to the cable or to the cage.
