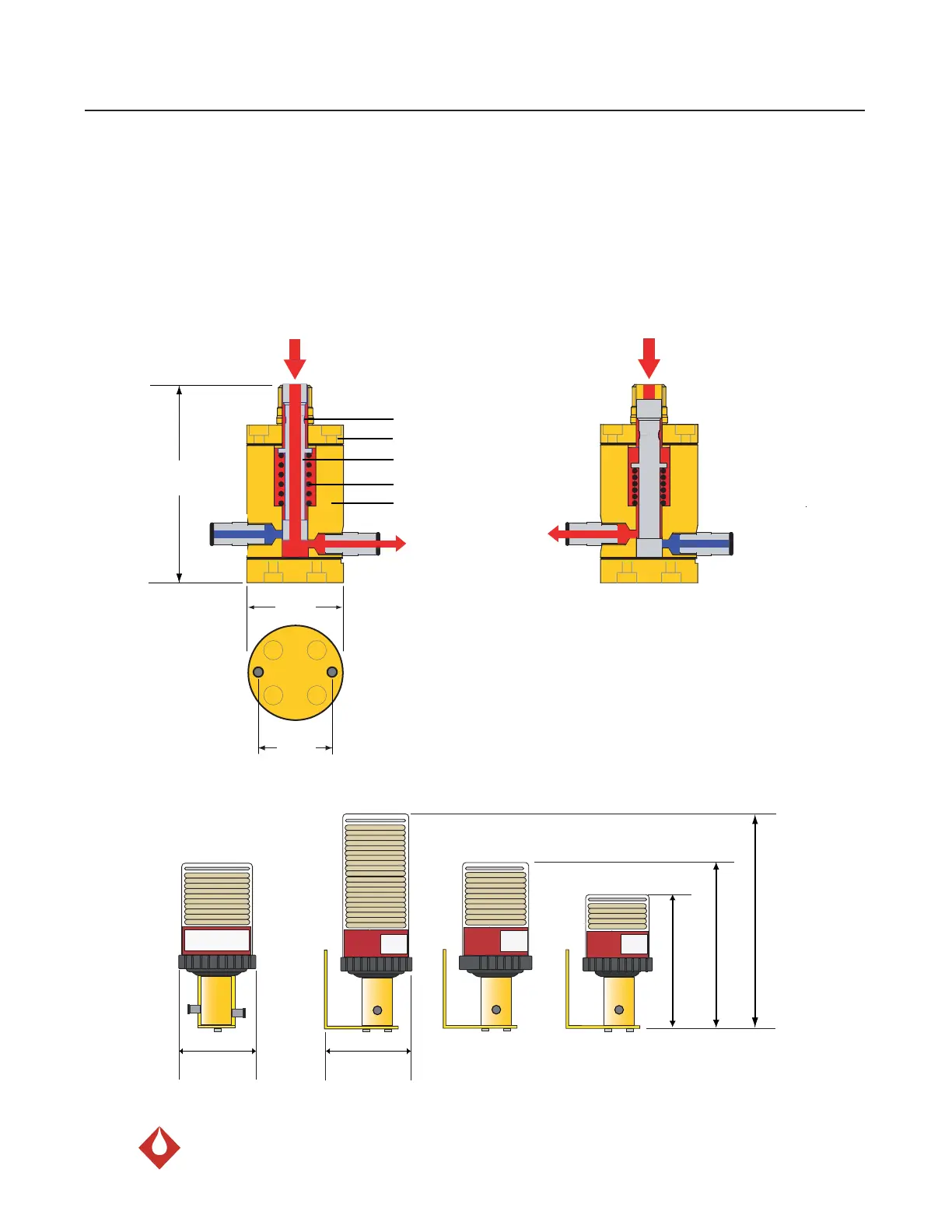

How It Works
The Valve Stem is maintained in the upper position by the spring. When the MEMOLUB® HPS ejects lubricant,
the MEMOLUB® HPS pump piston simultaneously pushes the Valve Stem downwards. Lubricant flows through
the hollow Valve Stem and, as shown in stage 1, out through Outlet 1. As the Valve Stem moves downwards,
Outlet 1 is closed and Outlet 2 opens allowing lubricant to flow through it, as shown in stage 2. Upon completion
of the output cycle the Return Spring pushes the Valve Stem into the upper position to complete the cycle.
MEI
MEMOLUB
MEI
MEI
7.5" (19cm)
8.75" (22.23cm)
12" (30.48cm)
10.16cm
4.00"
4.75"
12.07cm
Giga
Mega
Standard
MEMOLUB HPS 2 Point MEMOLUB System
SPLTIN-0305-PG4 Copyright © 2003 PLI, LLC All Rights Reserved
®
Stage 1
SPLITTER MEMO
31mm
1.22"
40mm
1.57"
84mm
3.31"
Outlet 2
Outlet 1
Return Spring
Valve Stem
Cap
Discharge Port
Body
Stage 2
Outlet 2
Outlet 1
PLI, LLC
Power Lube Injection
PLI, LLC P.O. Box 044051 1509 Rapids Drive Racine, WI 53404
Telephone 800-635-8170 FAX 262-637-4090 e-mail pli@wi.net
MEMOLUB® HPS User's Guide Page 30 of 39 PLI, LLC
