MEMOLUB HPS - Adapters and Fittings List

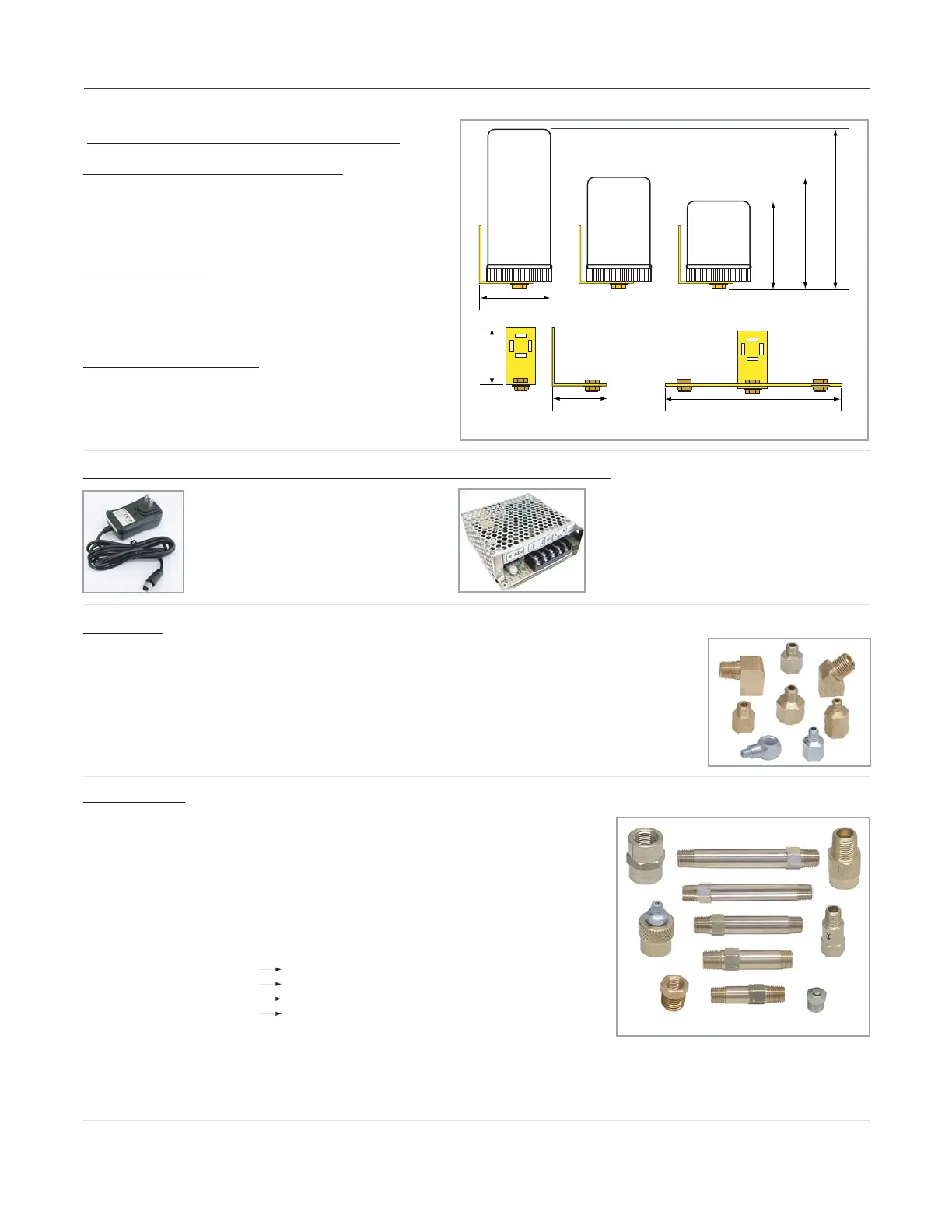

MEMOLUB® HPS Installation Parts List st
A-1 1/4" NPT(F) x 1/4-28 Straight (M), Brass
A-2 1/4" NPT(F) x 1/8" NPT (M), Brass
A-3 1/4" NPT(F) x 1/4" NPT(M) x 90°, Brass
A-4 1/4" NPT(F) x 1/4" NPT(M) x 45°, Brass
A-5 1/8" NPT(F) x 1/8" NPT(M) x 45°, Brass
A-6 1/8" NPT(F) x 1/4-28 Straight (M), Steel
A-7 1/2" NPT(F) x 1/4" NPT(M), Steel
A-8 1/4" NPT(F) x 1/4" NPT(M), Brass
Adapters
Mounting Brackets and Dust Covers
Mounting Bracket with Dust Cover
LDCS-2 Standard Model 120
LDCM-2 Mega Model 240
LDCG-2 Giga Model 480
Dust Cover Only
DCS-1 Standard Model 120
DCM-1 Mega Model 240
DCG-1 Giga Model 480
Mounting Bracket Only
MLLB-1 Bracket for 1 lubricator
MLLBK-1 Bracket for 2 or 3 lubricators
Power Supply Options (used with the MEMOLUB® EPS lubricators)
B4N-1.375H 1/4" NPT(M) x 1/4" NPT(M) x 1.375", Brass Hex Nipple
B4BN-1H 1/4 BSPT(M) x 1/4" NPT(M) x 1", Brass Hex Nipple Adapter
B4BN-2 1/4 BSPT(M) x 1/4" NPT(M) x 2", Brass Hex Nipple Adapter
B4BN-2.5 1/4 BSPT(M) x 1/4" NPT(M) x 2.5", Brass Hex Nipple Adapter
B4BN-3 1/4 BSPT(M) x 1/4" NPT(M) x 3", Brass Hex Nipple Adapter
B4BN-3.5 1/4 BSPT(M) x 1/4" NPT(M) x 3.5", Brass Hex Nipple Adapter
B4BN-4.13 1/4 BSPT(M) x 1/4" NPT(M) x 4.13", Brass Hex Nipple Adapter
BUSHB4NM8NF 1/8" NPT(F) x 1/4" NPT(M), Brass Bushing
CKV-1 1/4"NPT(F) 1/4"NPT(M), 3 psi cracking pressure, Check Valve
CKV-2 1/8"NPT(M) 1/8"NPT(F), 3 psi cracking pressure, Check Valve
CKV-3HP 1/4"NPT(F) 1/4"NPT(M), 5 psi cracking pressure, HP Check Valve
CKV-4 1/4"NPT(F) 1/4"NPT(M), 15 psi cracking pressure, Check Valve
COUPLB4C 1/4" NPT(F) x 1/4" NPT(F), Brass Coupler
OPMAINTADPT Maintenance Adapter
RV-1 1/8" NPT(M) x 1 PSI Cracking Pressure, Relief vent
Other Parts
7"
8.125"
11.875"
5"
12"
3.75"
4"
INPARTS-0203-PG1 Copyright © 2003 PLI, LLC All Rights Reserved
LDCG-2
LDCG-2
LDCS-2
MLLB-1 MLLBK-1
#OPEPS110AC5V2A2
EPS Rack Mount Power
Connect a 110VAC power supply from your
machine or PLC to the rack mount power
transformer to run the MEMOLUB® EPS
lubricator.
#OPEPS110AC5V2A
EPS Plug in Power
Run the MEMOLUB® EPS lubricator
off any 110VAC outlet with the plug
in power transformer.
A-2
A-1
A-4
A-3
A-10
A-6
A-9
A-12
COUPLB4C
B4BN-4.13
B4BN-3.5
B4BN-3
B4BN-2.5
B4BN-2
OPMAINTADPT
BUSHB4NM8NF RV-1
CKV-2
CKV-1
A-9 1/8" NPT(F) x 1/8 BSPT(M), Brass
A-10 1/8" NPT(F) x 1/4-28 Straight (M) x 90°, Steel
A-11 1/8 BSPT(F) x (8M x 1.0)(M), Brass
A-12 1/8" NPT(F) x (8M x 1.25)(M), Brass
A-13 1/8 BSPT(F) x 1/8 NPT(M), Brass
A-15 1/8" NPT(F) x 1/8 BSPT(M), Steel
A-16 1/8" NPT(F) x (6M x 1.0)(M)PP, Steel
A-17 1/8" NPT(F) x (6M x .75)(M)PP, Steel
MEMOLUB®HPS User's Guide Page 32 of 39 PLI, LLC
