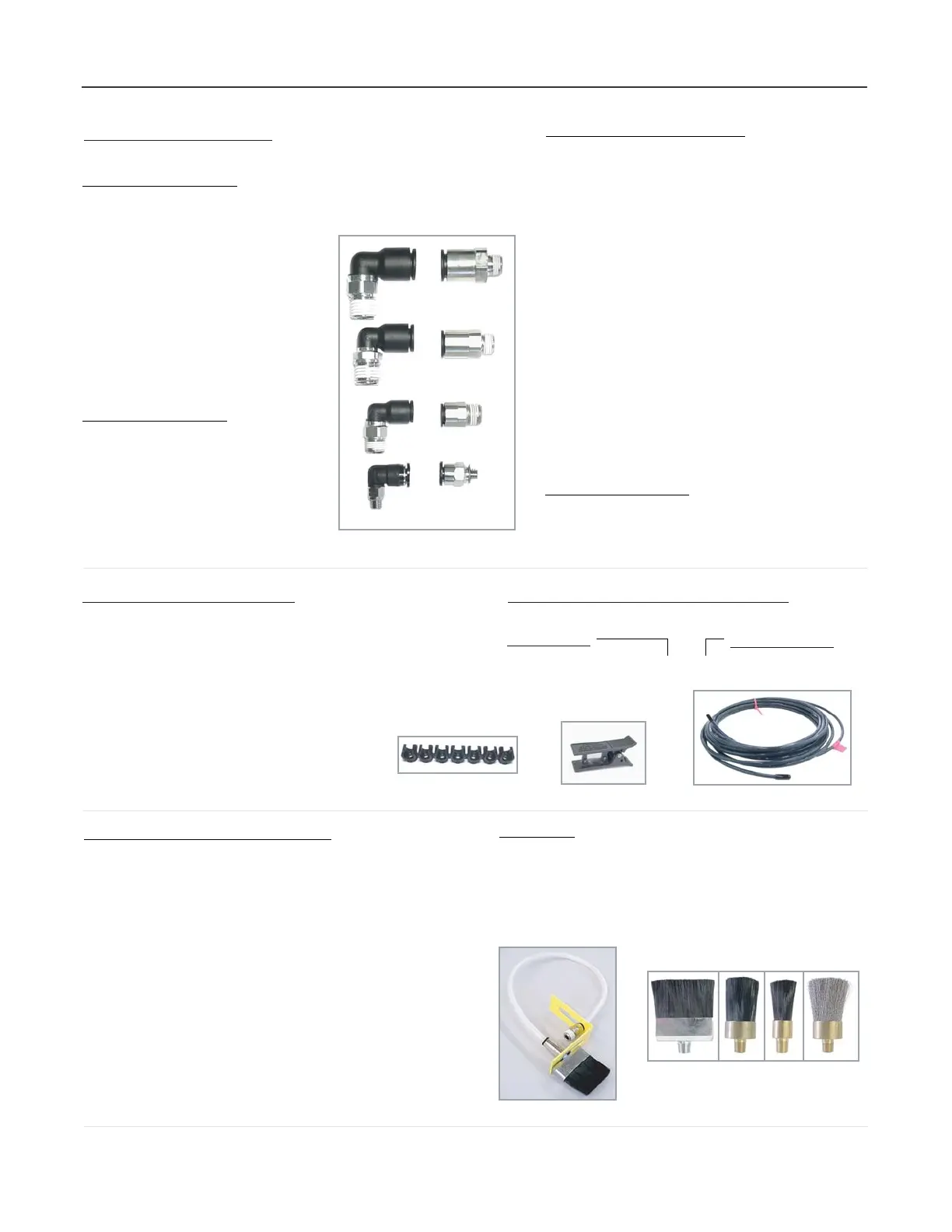

1/4" OD Tube Fittings:
3009-56-11 1/8"NPT(F) x 90°
3014-56-11 1/8"NPT(F), Straight
3014-56-14 1/4"NPT(F), Straight
3109-56-10 1/8BSPT(M) x 90°
3109-56-11 1/8"NPT(M) x 90°
3109-56-14 1/4"NPT(M) x 90°
3171-56-20 10-32UNF(M), Straight
3175-56-11 1/8"NPT(M), Straight
3175-56-14 1/4"NPT(M), Straight
Push-in Tube Fittings
5/16" (8mm) OD Tube Fittings:
3009-08-11 1/8"NPT(F) x 90°
3009-08-14 1/4"NPT(F) x 90°
3014-08-11 1/8"NPT(F), Straight
3014-08-14 1/4"NPT(F), Straight
3106-08-00 8mmOD x 8mmOD Tube to Tube, Straight
3109-08-10 1/8BSPT(M) x 90°
3109-08-11 1/8"NPT(M) x 90°
3109-08-13 1/4BSPT(M) x 90°
3109-08-14 1/4"NPT(M) x 90°
3168-08-06 8mmOD(F) x 6mmOD(M) Expander
3169-08-13 G1/4BSPP(M) x 90°
3169-08-17 G3/8BSPP(M) x 90°
3175-08-10 1/8BSPT(M), Straight
3175-08-11 1/8"NPT(M), Straight
3175-08-13 1/4BSPT(M), Straight
3175-08-14 1/4"NPT(M), Straight
3805-08-10 1/8BSPT(M), Straight Stainless Steel
3805-08-11 1/8"NPT(M), Straight Stainless Steel
3805-08-14 1/4"NPT(M), Straight Stainless Steel
3889-08-10 1/8BSPT(M) x 90° Stainless Steel
3889-08-11 1/8"NPT(M) x 90° Stainless Steel
3889-08-14 1/4"NPT(M) x 90° Stainless Steel
Tubing and Accessories
Nylon tubing is sold two ways; pre-filled in 5 foot increments from
5 to 30 feet, or empty in any length from 1 to 100 feet.
TB6MM 6mm OD Nylon Tubing
TBP5600 1/4" OD Nylon Tubing
TBP5800A 5/16" (8mm) OD Nylon Tubing
TBP6000 3/8" OD Nylon Tubing
TB3000-71-00 Nylon Tubing Cutter
TBCLIP-08 5/16" (8mm) OD Installation Clip
TB5800CP 5/16" OD Copper Tubing
3/8" OD Tube Fittings:
3109-60-11 1/8"NPT(M) x 90°
3109-60-14 1/4"NPT(M) x 90°
3175-60-11 1/8"NPT(M), Straight
3175-60-14 1/4"NPT(M), Straight
Plug 'n Lube™ pre-filled tubing
TB - XXX - XX - (Lubricant name)
Tubing O.D.
Tubing Length
6MM = 6mm OD
056 = 1/4" OD
58A = 5/16" OD
060 = 3/8" OD
Chain Oil Brush Assemblies
Chain Oil Brush Assembly includes a brush, 18" length
of 5/16' OD nylon tubing and 2 push-in tube fittings.
We recommend using a check valve (part # CKV-2) with
all Chain Oil Brush Assemblies. Mounting brackets are
also available for easy installation.
CA-1 Chain Oil Assembly with 2" Flat Nylon Brush
CA-1S Chain Oil Assembly with 2" Flat Stainless Brush
CA-2 Chain Oil Assembly with 5/8" Round Nylon Brush
CA-2S Chain Oil Assembly with 5/8" Round Stainless Brush
CA-3 Chain Oil Assembly with 1" Round Nylon Brush
CA-3S Chain Oil Assembly with 1" Round Stainless Brush
OPLBKT-2 Oil brush mounting bracket
OPBRUSH5/8RD 5/8" Round Nylon Brush
OPBRUSH1RD 1" Round Nylon Brush
OPBRUSH2FLAT 2" Flat Nylon Brush
OPBRUSH5/8RDSS 5/8" Round Stainless Steel Brush
OPBRUSH1RDSS 1" Round Stainless Steel Brush
OPBRUSH2FLATSS 2" Flat Stainless Steel Brush
Brushes
CA-1 with bracket
TBCLIP-08
TB3000-71-00
Sample: TB-58A-30-Mobilith AW-2
MEMOLUB® HPS Installation Parts List st
INPARTS-0203-PG2 Copyright © 2003 PLI, LLC All Rights Reserved
3109-60-11
3175-60-11
3109-08-14
3175-08-11
3109-56-11
3175-56-11
3109-06-6MMPC
3175-06-6MMPC
6mm OD Tube Fittings:
3101-06-19 M5(M), Straight
3106-06-00 6mmOD x 6mmOD Tube to Tube Straight
3109-06-10 1/8BSPT(M) x 90°
3109-06-11 1/8"NPT(M) x 90°
3109-06-14 1/4"NPT(M) x 90°
3109-06-6MPC M6(M) x 90°
3114-06-10 1/8BSPT(F), Straight
3114-06-13 1/4BSPT(M), Straight
3169-06-13 G1/4BSPP(M) x 90°
3175-06-10 1/8BSPT(M), Straight
3175-06-11 1/8"NPT(M), Straight
3175-06-6MMPC M6(M), Straight
3199-06-19 M5(M) x 90°
Just specify tubing O.D., length and lubricant desired.
2" Flat
Nylon
1"
Round
Nylon
5/8"
Round
Nylon
1"
Round
Stainless
Steel
MEMOLUB® HPS User's Guide Page 33 of 39 PLI, LLC
