POWER SOURCE

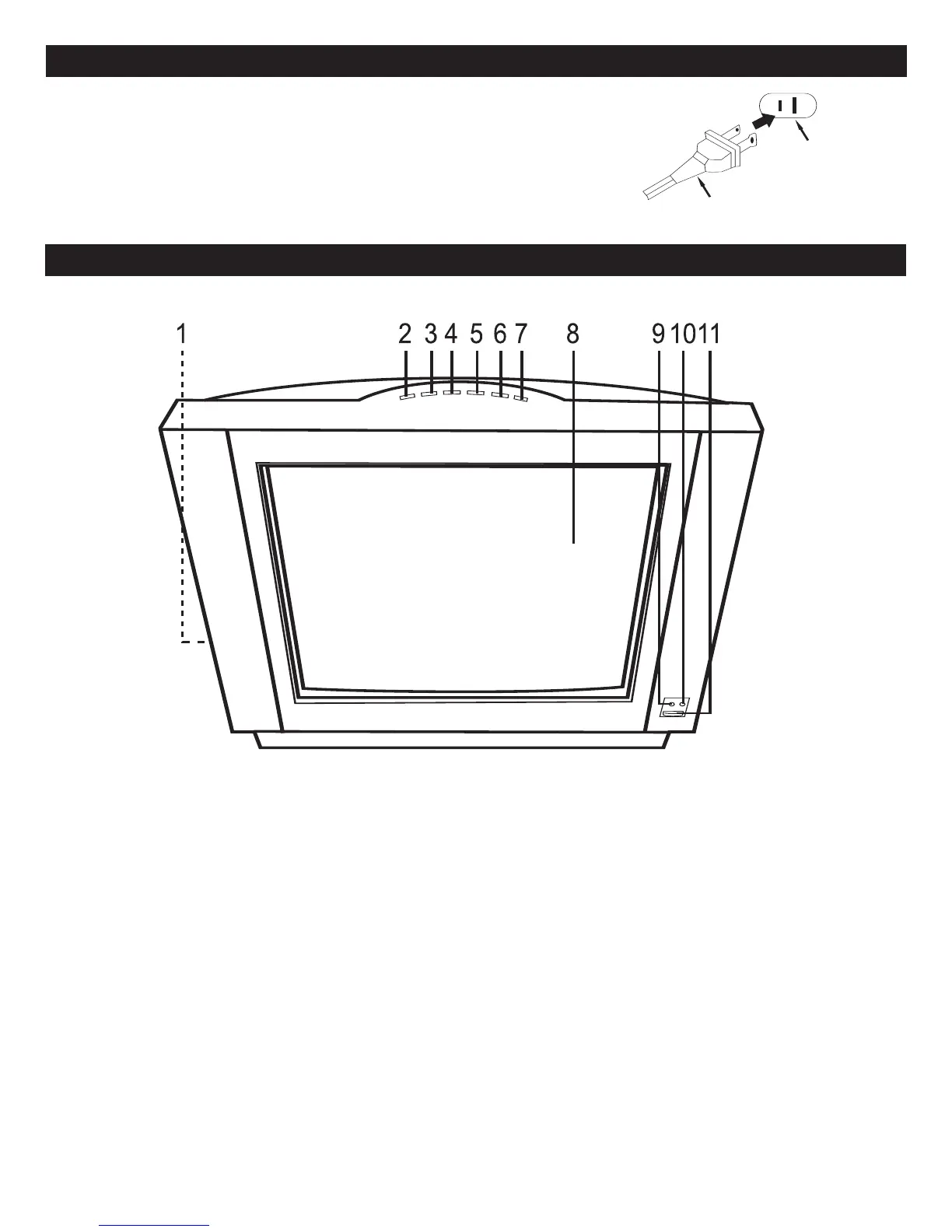

LOCATION OF CONTROLS
1. Audio 1 IN/Video 1 IN/Headphone Jacks
(Side of Unit)
2. MENU Button
3. TV/AV Button
4. VOLUME Down Button
5. VOLUME Up Button
6. CHANNEL Down Button
7. CHANNEL Up Button
8. Display
9. Remote Sensor
10.Power Indicator–Standby light red, Power On
light green
11. Power Button
FRONT
Insert the AC plug (with the 2 blades) into a conveniently located AC outlet having
120V, 60Hz.
N
OTE:
T
he AC plug supplied with the unit is polarized to help minimize the possibility
of electric shock. If the AC plug does not fit into a nonpolarized AC outlet, do not file
or cut the wide blade. It is the user’s responsibility to have an electrician replace the
obsolete outlet.
NOTE:
When setting the TV Menus, the Channel Up/Down buttons are used as Navigation Up/Down and the
Volume Up/Down buttons are used as Navigation Right/Left.
