Memorex MVT2137 User Manual

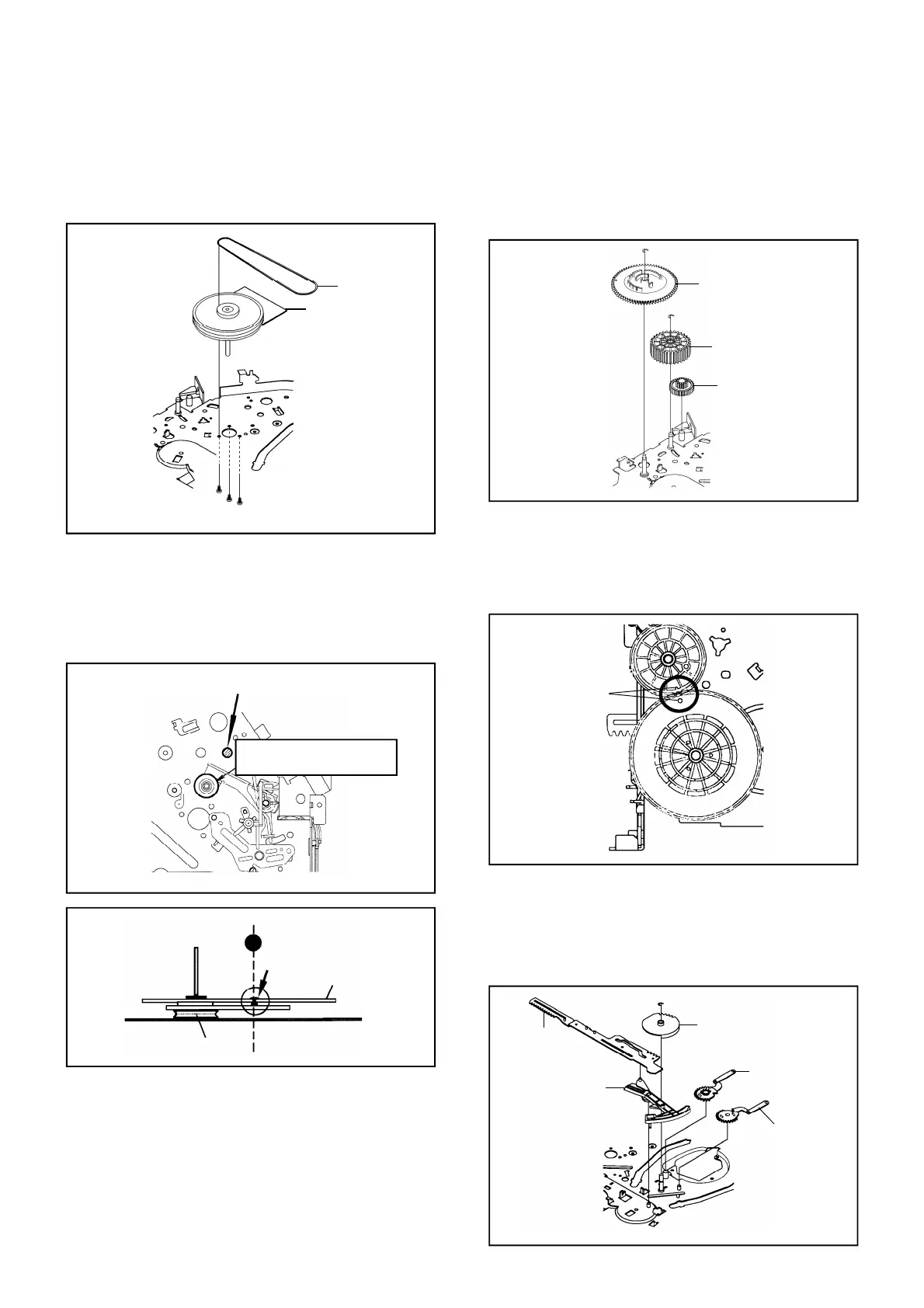

DISASSEMBLY INSTRUCTIONS
B2-5
Fig. 2-15-A
NOTE
In case of the Pinch Roller Cam and Main Cam
installation, install them as the circled section of Fig. 2-
15-B so that the each markers are met. (Refer to Fig.
2-15-B)
Fig. 2-15-B
2-15:
Remove the E-Ring (1), then remove the Main Cam.
Remove the E-Ring (2), then remove the Pinch Roller
Cam and Joint Gear.
1.
2.
MAIN CAM/PINCH ROLLER CAM/JOINT GEAR
(Refer to Fig. 2-15-A)
(1)
Main Cam
Pinch Roller Cam
Joint Gear
(2)
1.
Pinch Roller Cam
Main Cam
Marker
2-16: LOADING GEAR S/T ASS'Y (Refer to Fig. 2-16-A)
1.
2.
Remove the E-Ring (1) and remove the Main Loading
Gear.
Remove the Main Rod, Tension Lever, Loading Arm S
Ass'y and Loading Arm T Ass'y.
(1)
Main Rod
Main Loading Gear
Tension Lever
Loading Arm T Ass'y
Loading Arm S Ass'y
Fig. 2-16-A
2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14-A)
Remove the Capstan Belt.
Remove the 3 screws (1).
Remove the Capstan DD Unit.
1.
2.
3.
Fig. 2-14-A
€ Screw Torque: 4 ± 0.5kgf€cm
Capstan DD Unit
Capstan Belt
(1)
(1)
(1)
In case of the Capstan DD Unit installation, apply the
silicon bond (TSE3843-W) on the position Fig. 2-14-B
correctly. (If no silicon bond applied, abnormal noise will
be heard on the deck operation.)
(Refer to Fig. 2-14-B, C)
NOTE
1.
Fig. 2-14-B
Fig. 2-14-C
Capstan DD Unit
Main Chassis
Silicon Bond
Applied position of
silicon bond
Be careful not to apply the silicon
bond to the Pinch Roller.
