Memorex MVT2137 User Manual

Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
Disconnect the following connectors:
(CP801 and CP850).
Remove the CRT PCB in the direction of arrow.

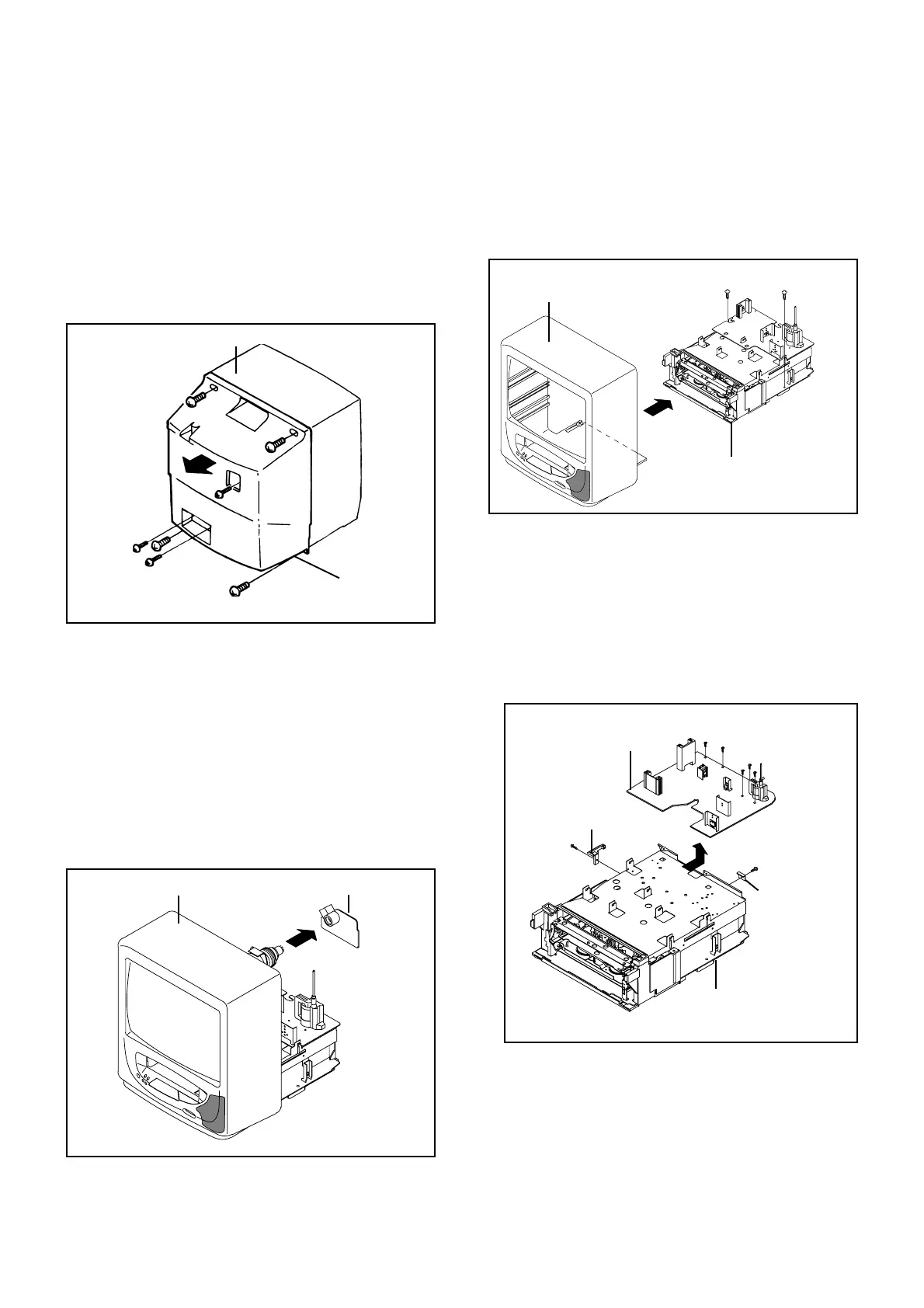

DISASSEMBLY INSTRUCTIONS
REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
B1-1
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
CRT PCB
Front Cabinet
Fig. 1-2
1.
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
2.
3.
4.
5.
Remove the 4 screws (1).
Remove the screw (2).
Remove the 2 screws (3) which are used for holding the
Back Cabinet.
Remove the AC cord from the AC cord hook (4).
Remove the Back Cabinet in the direction of arrow.
Fig. 1-1
Front Cabinet
(4)
(3)
(1)
(1)
(1)
(2)
(1)
(3)
1-2: CRT PCB (Refer to Fig. 1-2)
1.
2.
3.
1-3: TV/VCR BLOCK (Refer to Fig. 1-3)
1.
2.
3.
4.
1-4: MAIN PCB (Refer to Fig. 1-4)
1.
2.
3.
4.
5.
6.
7.
8.
Remove the screw (1).
Remove the Main PCB Holder.
Remove the 2 screws (2).
Remove the 3 screws (3).
Remove the screw (4).
Remove the TV-PCB Holder.
Disconnect the following connectors:(CP502 and CP820).
Remove the Main PCB in the direction of arrow.
(1)
(1)
Fig. 1-3
Remove the 2 screws (1).
Disconnect the following connectors:
(CP2201, CP4202, CP401 and CP403).
Unlock the support 2.
Remove the TV/VCR Block in the direction of arrow.
TV/VCR Block
Front Cabinet
Back Cabinet
Fig. 1-4
(2)
UP TO
RELEASE
TV- PCB Holder
Main PCB
(1)
Main PCB Holder
VCR Block
(3)
(3)
(3)
(2)
(2)
(4)
