Mendota FV34 - 4.11.14 VERTICAL THROUGH-THE-ROOF VENTING USING FOUR 90° ELBOWS

85-03-01107 FV34 DECOR Page 67
VERTICAL THROUGH-THE-ROOF VENTING USING FOUR 90
0
ELBOWS
In extreme situations, four 90
0
elbows may be required to reach a proper exit point for the vent system. Mendota has
spent considerable time and effort in the design of this fireplace and its venting system. Through this effort, Mendota
has been able to certify the use of Four 90
0
elbows when terminating vertically.
The use of Four 90
0
elbows must meet some minimum prerequisites.
Prerequisite #1: The vent system must terminate vertically using a vertical vent cap.
Prerequisite #2: There must be a minimum 18 inches of vertical starter section connected directly to the top of this
fireplace.
Prerequisite #3: For vertical starter sections less than 4 feet tall, you must reduce 6 feet off the maximum horizontal
run allowed per the Master Vent Chart.
H2
H1
V1

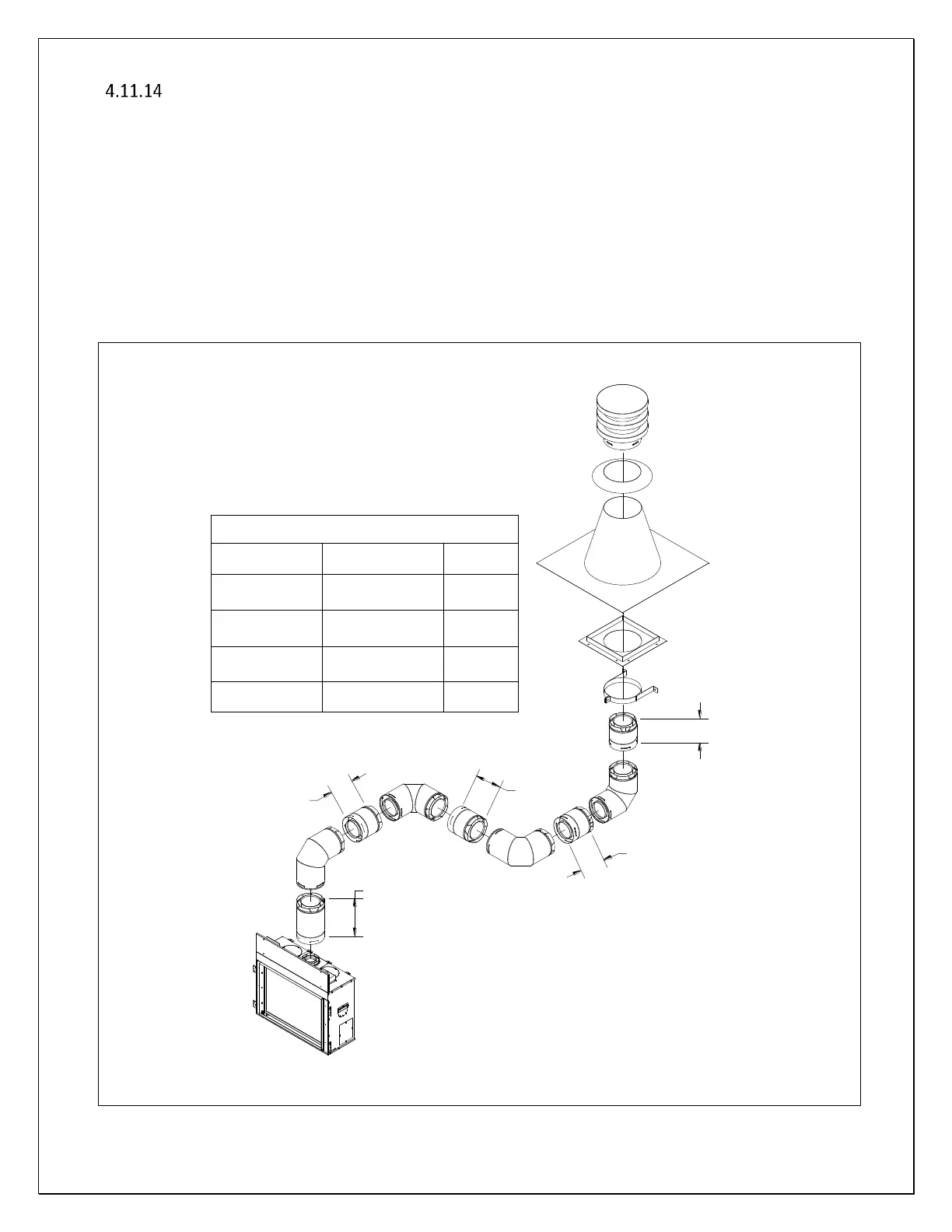

FOUR 90° ELBOWS, VERTICAL TERMINATION
4'
5'- 17'
4'
V1(12" MIN.)
3'
H1+H2+H3
5'
18'
12'
2'
25'
19'
26'
37'
V2 MAX
V2
H3
