Mendota FV34 - 6.7.3 Convection Air Blower System Parts; 6.7.4 Burner System Parts

85-03-01107 FV34 DECOR Page 89
Convection Air Blower System Parts
Burner System Parts
Item #
Part Number
Description
1
HA-78-00287
Burner Assembly
ITEM #
QTY
PART NO.
DESCRIPTION
4
3
50-06-00130
SPACER, FOR GROMMET
5
3
50-06-00129
GROMMET, RUBBER
6
3
50-03-00067
NUT, 10-24 KEPS, ZINC PLATED
7
3
50-01-00156
HHSMS, #8-18 X 1/2" TYPE AB, BLACK ZINC
10
1
15-02-00121
BLOWER

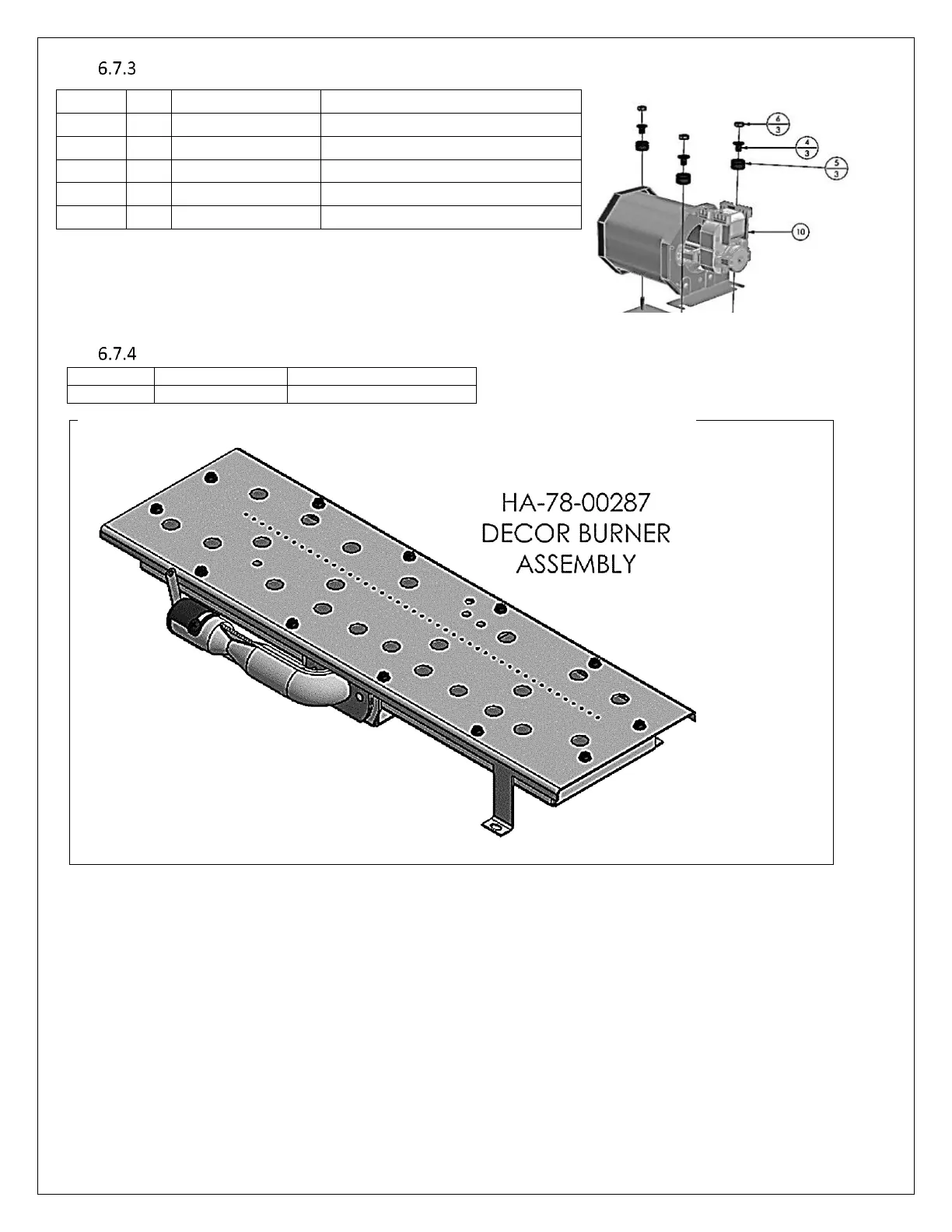

Figure 6-3 FV34 DECOR BLOWER ASSEMBLY
Figure 6-4 BURNER WELDMENT
