System Installation

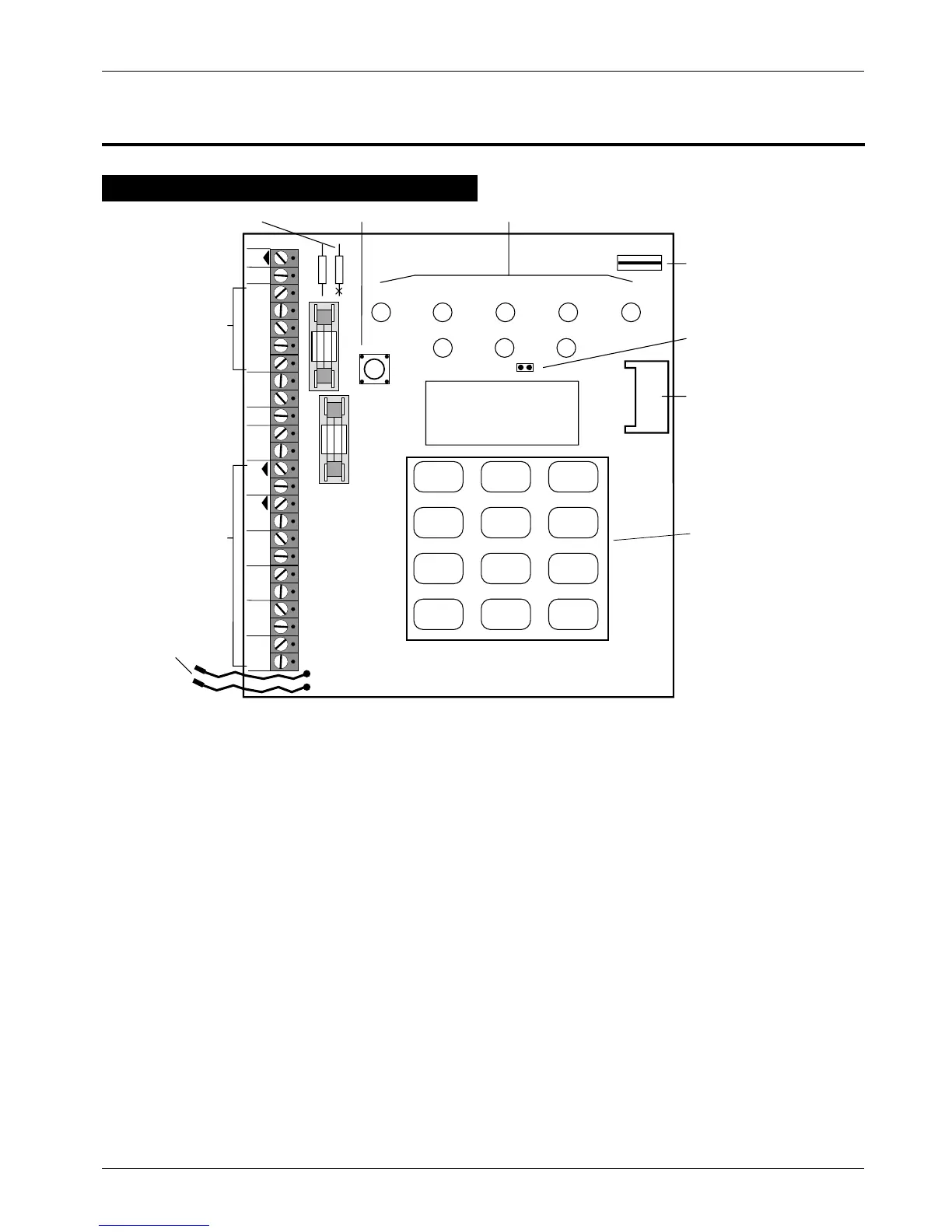

PCB Layout
Bell Fuse
This 1 Amp fuse protects the supply to the external
sounder/bell.
Aux Fuse
This 1 Amp fuse protects the supply to devices power
from the auxiliary 12V terminals.
Speaker Volume R37
Cut R37 to reduce the volume of the extension
loudspeakers.
Factory Restart Pins
If these pins are shorted during power-up all system
programming data is restored to the factory default
values, see page 6 for defaults.
Home Inhibit Link
Whenthelinkisopenthe(Alm-)terminalactivates when
analarmoccursduringafullorpartsetcondition.When
the link is closed the [ALM-] terminal activates only if an
alarm occurs during a full set condition.
Zones1-5Indicator LEDs
These red indicator LEDs indicate the alarm status of
zone1-5.Note these are not fitted on the TS410.
Unset Indicator LED
ThisgreenindicatorLEDisusedtoindicatethestatusof
the system set or unset. It also flashes when the mains
power is removed or when the user selects the user
program mode.
Tamp Indicator LED
ThisredLEDisusedtoindicateasystemtamperalarm,
it also flashes when the engineer program mode is
selected. Note this is not fitted on the TS410.
F/E Indicator LED
ThisredLEDisusedtoindicatethestatusofthefinalexit
zone. Note this is not fitted on the TS410.
496522 Issue A 3of10 TS400 & TS410
TS400 & TS410
A.C.
ALM
-
RST
-
TRG
-
STB
-
+H/O-
TMP
-
AUX
TAMPER
L/S
-
AUX 12V
+-
P. A .
ZONE 5
FIRE
ZONE 4
K'SW
ZONE 3
ACCESS
ZONE 2
ACCESS
ZONE 1
F/EXIT
Remote Keypad
Interface Connector
Keypad
(Not fitted on TS410)
Factory Restart Pins
Indicator LEDs
Home alarm
inhibit link
