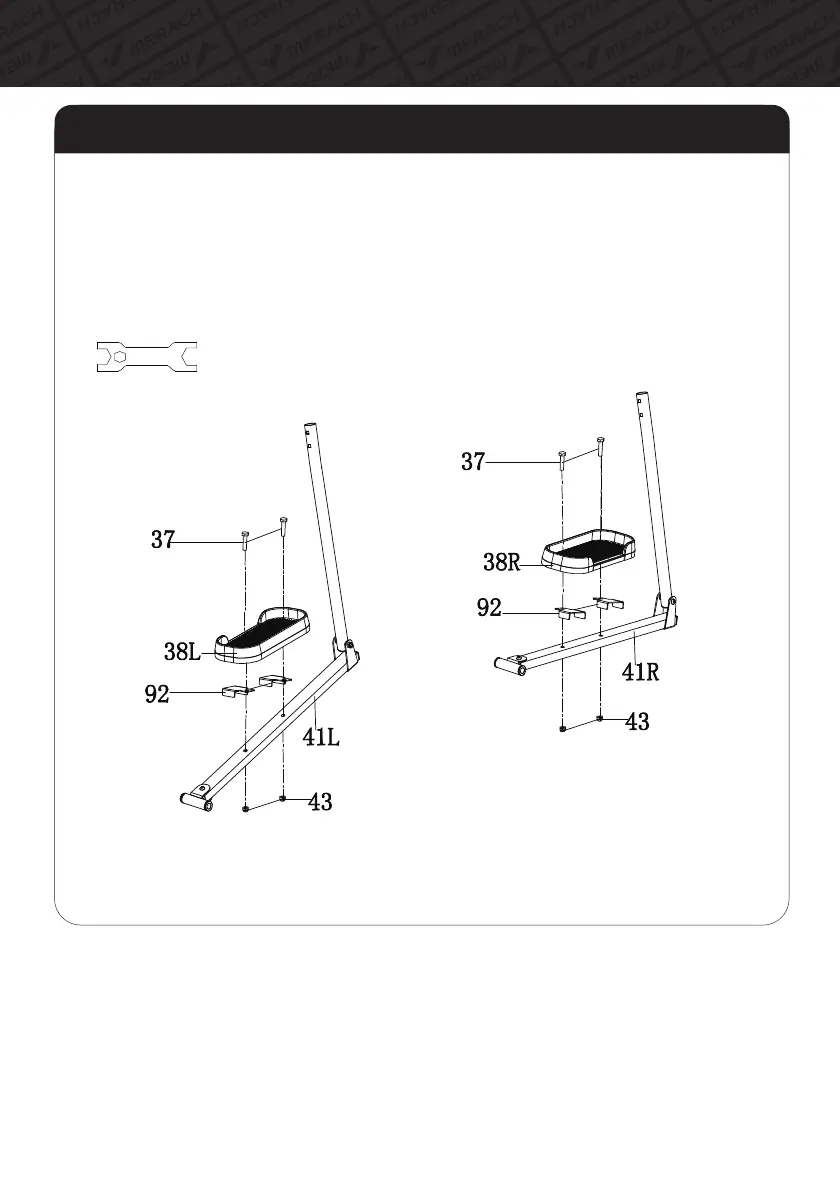

A. Assemble the Left Pedal(#38L) and the Pedal Backing Plate(#92) onto the Left Foot Pedal

Connecting Tube(#41L) with the Small Hexagon Head Bolt(#37) and Nylon Nut(#43).

B. Assemble the Right Pedal(#38R) and the Pedal Backing Plate(#92) onto the Right Foot Pedal

Connecting Tube(#41R) with the Small Hexagon Head Bolt(#37) and Nylon Nut(#43).

Step 3: Assemble the Pedals on the Foot Pedal Connecting Tube

Assembly Instructions
