Merach MR-E07 - Step 5: Connecting Pedal Tubes to Main Frame

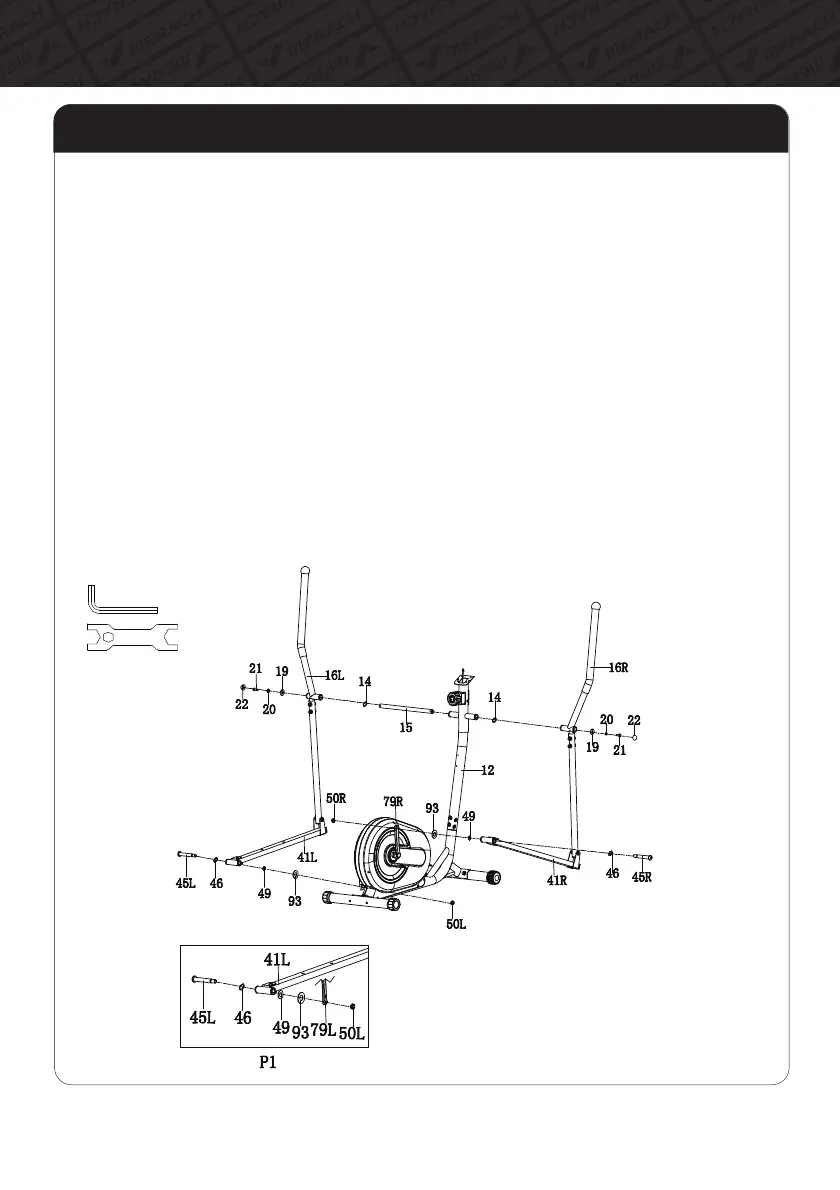

Step 5: Connect the Foot Pedal Connecting Tube to the Main Frame
A. Remove the pre-assembled Wave Washer(#14), Flat Washer(#19), Sparing Washer(#20) and
Outer Hexagon Bolt(#21) from the Long Axis(#15).
B. Insert the Long Axis(#15) into the Handlebar Post(#12) horizontally, and then assemble the
Wave Washer(#14), Left Handrail(#16L) and Right Handrail(#16R) on the Long Axis(#15)
separately.
C. Use the Multi-function Cross Wrench(#A) to tighten the Handrails onto the Handlebar
Post(#12) with Flat Washer(#19), Sparing Washer(#20), Outer Hexagon Bolt(#21), and
finally close the Spherical Nut Cap(#22).
D. Use the Allen Key(#C) and Open Spanner(#D) to install the Left Foot Pedal Connecting
Tube(#41L) to the Left Crank(#79L) with the Left Pedal Screw Bolt(#45L), Wave Washer(#46),
Flat Washer(#49) and Plastic Flat Washer(#93). Meanwhile, screw up the Left Pedal Screw
Bolt(#45L) to the Left Crank(#79L) with hand, and then tighten it with Left Nylon Nut(#50L) as
show in Figure 1.
E. Install the Right Foot Pedal Connecting Tube(#41R) onto the Right Crank(#79R) in the same
way.
Note: The pedal bolt has right and left side.
Right "R" : Screw it in clockwise.
Left "L": Screw it in counter clockwise.
Turn the Left/Right Crank(#79L/R) to choose
an optimal angle to screw into the bolt easy.
