Section 5 - Maintenance
90-864195070 JUNE 2007 Page 91
Alpha Propeller Installation
NOTICE
Operating the engine with a loose propeller can damage the propeller, the drive, or drive
components. Always tighten the propeller nut or nuts to specification and check for
tightness periodically and at the required maintenance interval.
IMPORTANT: If reusing tab washer, carefully inspect tabs for cracks or other damage.
Replace tab washer if condition is questionable.

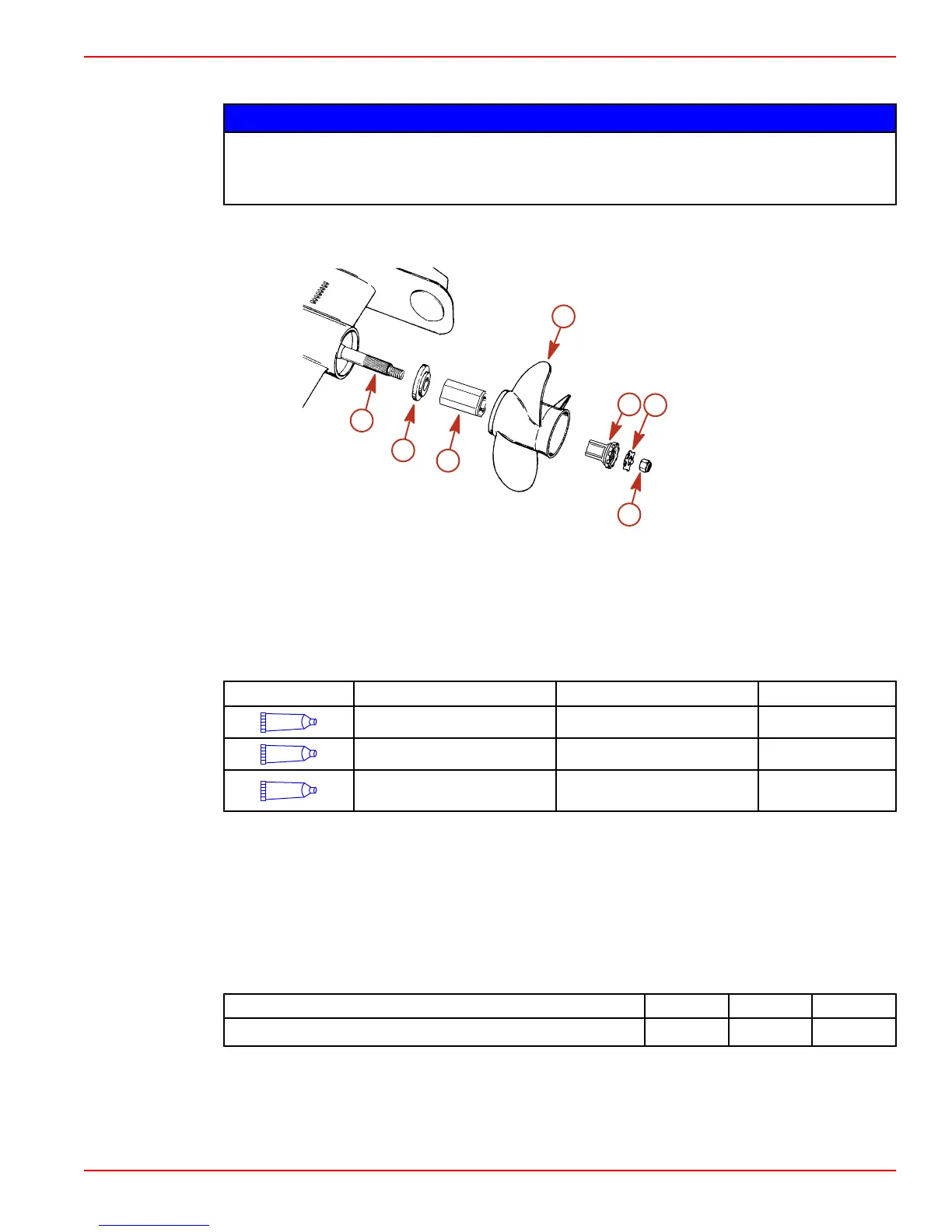

a
b
c
d
e
g
6215
f
a - Propeller shaft
b - Thrust hub
c - Flo‑Torq II drive hub
d - Propeller
e - Drive sleeve
f - Locking tab washer
g - Propeller nut
1. Apply a liberal coat of one of the following lubricants to the propeller shaft.
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft 92-802865Q02
94
Anti-Corrosion Grease Propeller shaft 92-802867Q 1
95
2-4-C Marine Lubricant with
Teflon
Propeller shaft 92-802859A1
2. Slide thrust hub onto propeller shaft, with stepped side toward propeller hub.
3. Install Flo‑Torq II Drive Hub into propeller.
NOTE: The drive sleeve is tapered and will slide fully into the propeller as the nut is
tightened and properly torqued.
4. Align splines and place propeller on propeller shaft.
5. Install drive sleeve and locking tab washer.
6. Install and torque the propeller nut.
Description Nm lb. in. lb. ft.
Propeller nut
1.
75 55
1. The propeller torque stated is a minimum torque value.
