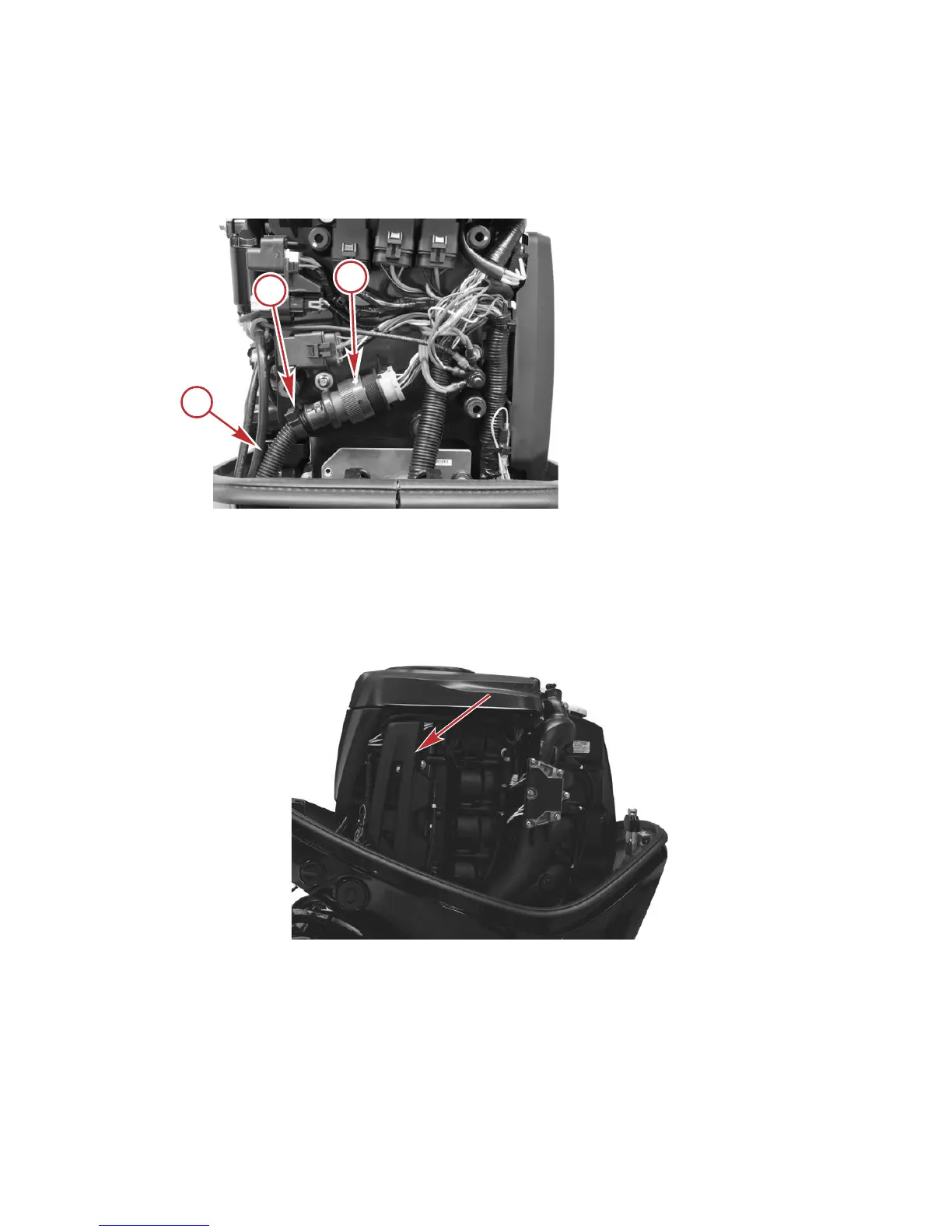

REMOTE WIRING HARNESS
Route the remote 14 pin boat harness through the rigging grommet. Remove
the harness cover and connect the remote harness to the 14 pin connector on
the engine harness. Secure the harness with the retainer.
a - Remote 14 pin boat
harness
b - Retainer
c - 14 pin connector
SMARTCRAFT HARNESS AND VESSEL HARNESS CONNECTION
1. If the boat is equipped with a SmartCraft and/or vessel (accessory)
harness, remove the ignition coil cover located on the port side of the
engine.
53826
a
b
c
53886
OUTBOARD INSTALLATION
eng 121
