10
Storage
The bottom drawer is for storing oven trays and other
cooking utensils.
To open, simply push the drawer in and release.
It can get very warm, so do not store anything in it that may
melt or catch re. Never store ammable materials in the
drawer. This includes paper, plastic and cloth items, such as
cookbooks, plastic ware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or
near the appliance.

Flammable materials may explode and result in re
or property damage.
The drawer can be removed completely for cleaning, etc.
To Remove the Storage Drawer
To open, simply push the drawer and release. The drawer will
open.

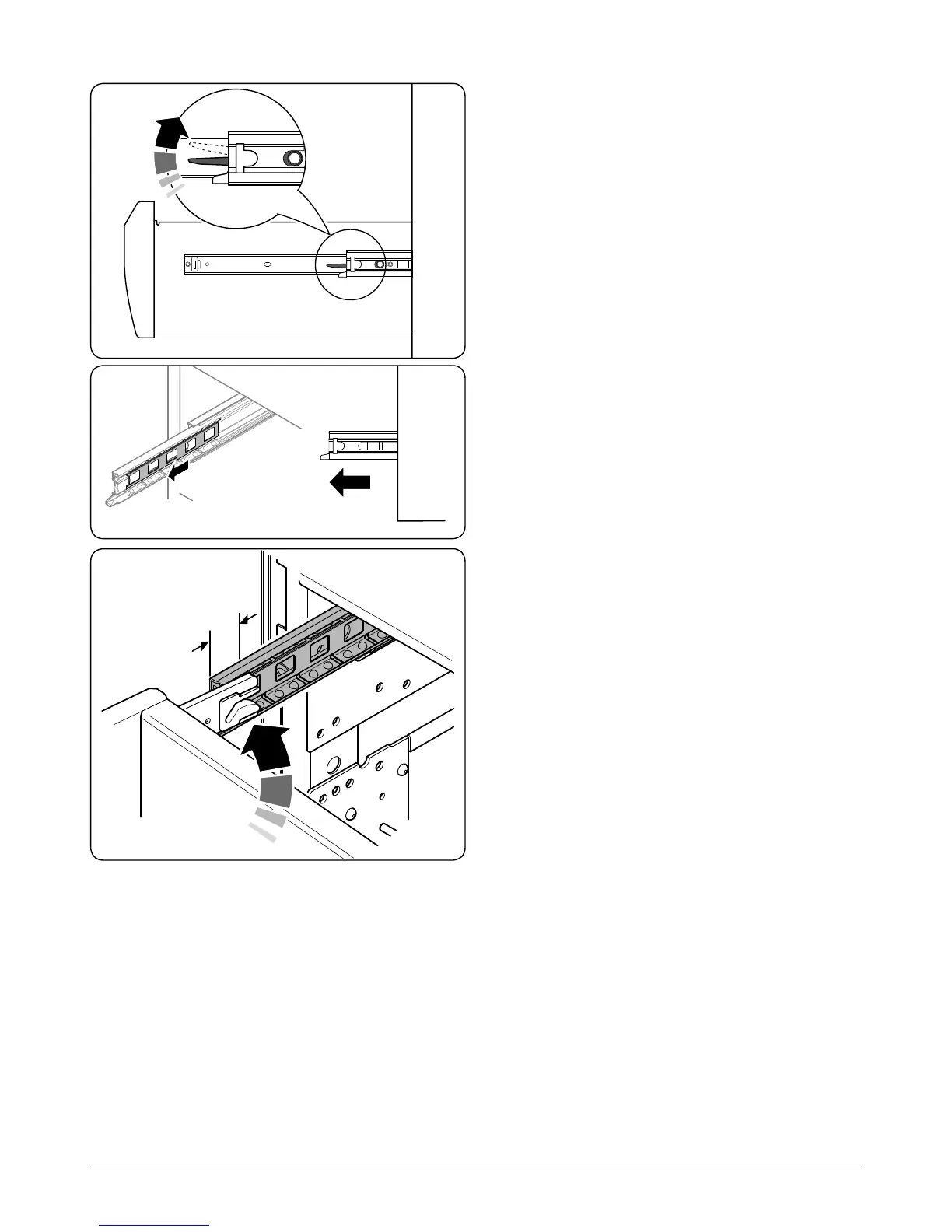

Push the ends of the plastic clips – down on the left-hand
side, up on the right-hand side – to release the catches
holding the drawer to the side rails (Fig.2-30). At the same
time pull the drawer forwards and away from the side rails.
For safety reasons slide the inner side rails back into the
cavity.
To Fit the Storage Drawer
Slide the inner side rails out until fully extended (Fig.2-31).
Lift the drawer at its sides and locate one of the drawer rails
(approximately 15 mm) onto an inner side rail (Fig.2-32).
Rotate the drawer to locate the remaining drawer rail onto
the opposite inner side rail.
Carefully slide the drawer back into the cavity. Some
resistance will be felt as the drawer rails locate fully onto the
inner side rails.
Fig.2-30
Make sure the inner
rail is forwards
Fig.2-31
15 mm
Approx.
Fig.2-32
