2. Cooker Overview

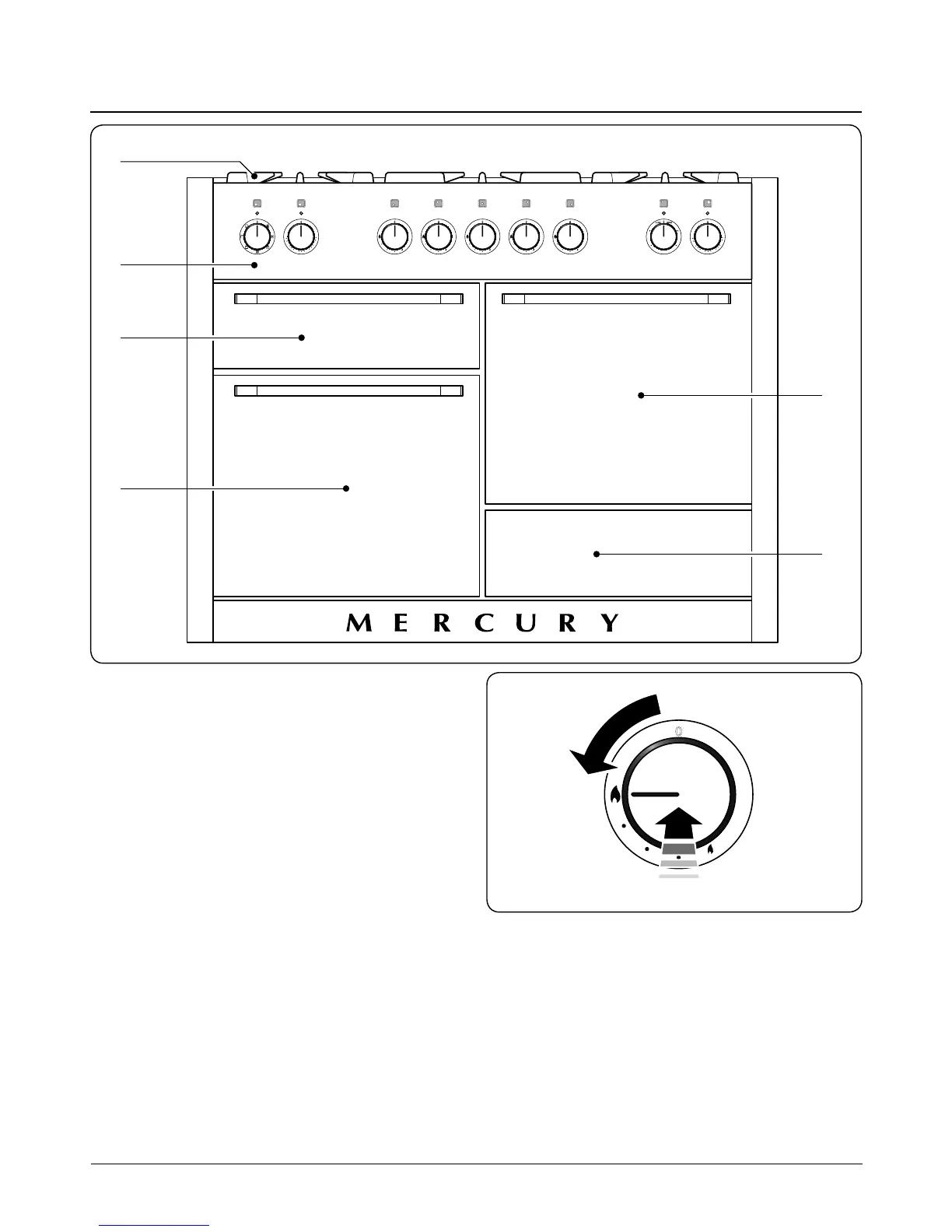

The 1200 dual fuel cooker (Fig.2-1) has the following features:
A. 5 hotplate burners including 1 wok burner
B. A control panel
C. A glide-out grill
D. Main multi-function oven
E. Fan oven
F. Storage drawer
Hotplate Burners
The drawing by each of the central knobs indicates which
burner that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When a hotplate control knob is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, push in the selected burner control knob
and turn it to the high position, as indicated by the large
ame symbol (
) (Fig.2-2).
The igniter should spark and light the gas. Keep holding the
knob pressed in to let the gas through to the burner for about
ten seconds.
Fig.2-1
0
Fig.2-2
