2. To gain access to the bottom spark plug, remove the rear cowl
latch and rear cover. Remove the two screws securing the rear
cover and remove the rear cover. Remove the six screws
securing the rear cowl latch and remove the latch. Retain the
two hex nuts that are used to fasten the top two screws.

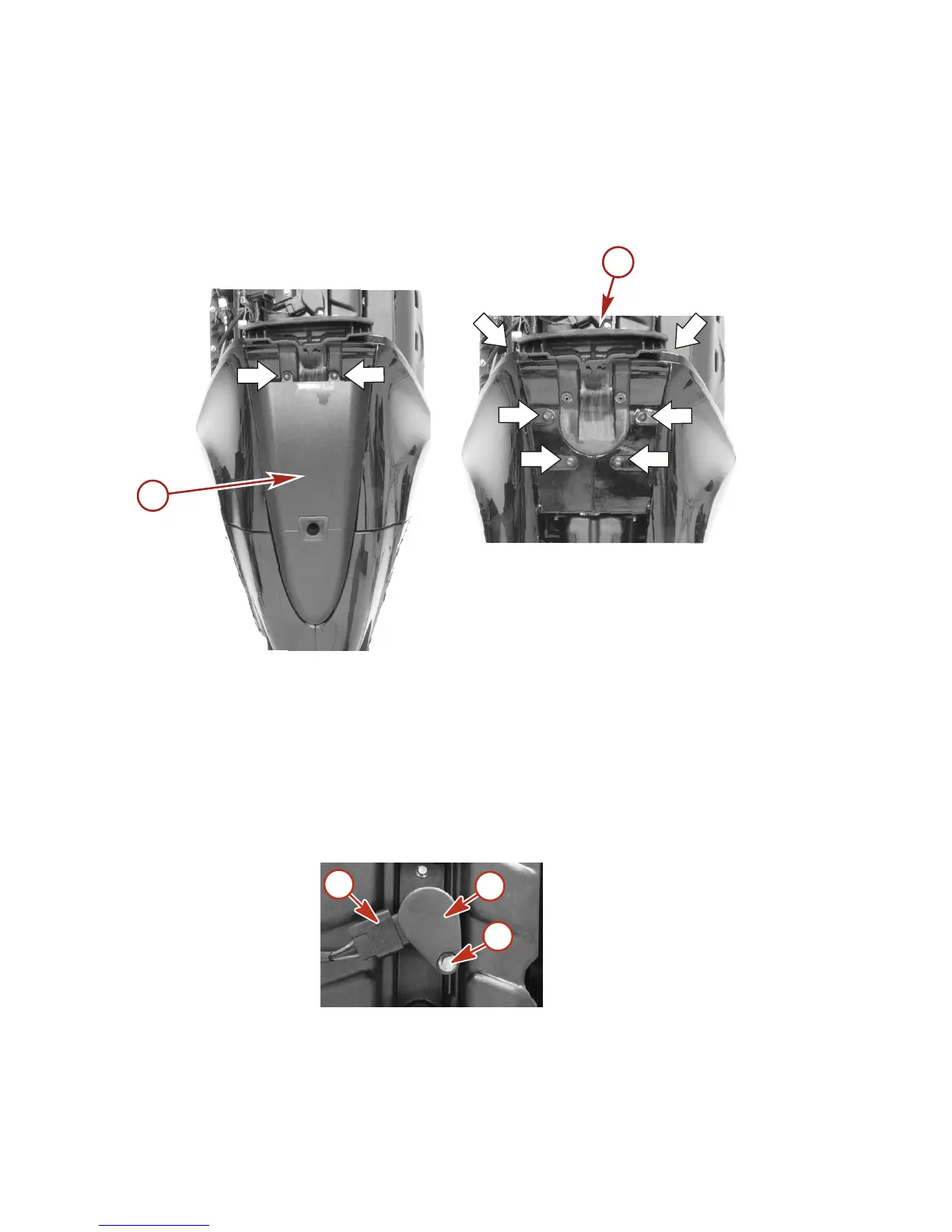

a - Rear cover b - Rear cowl latch
3. Disconnect the wiring harness connectors from the pencil
coils.
4. Remove the mounting bolts that are securing the pencil coils.
Pull the pencil coils from the spark plugs using a twisting
motion.
a
b
c
3658
a - Wiring harness
connector
b - Pencil coil
c - Bolt
