Mercury 2.5 Operation And Installation Manual

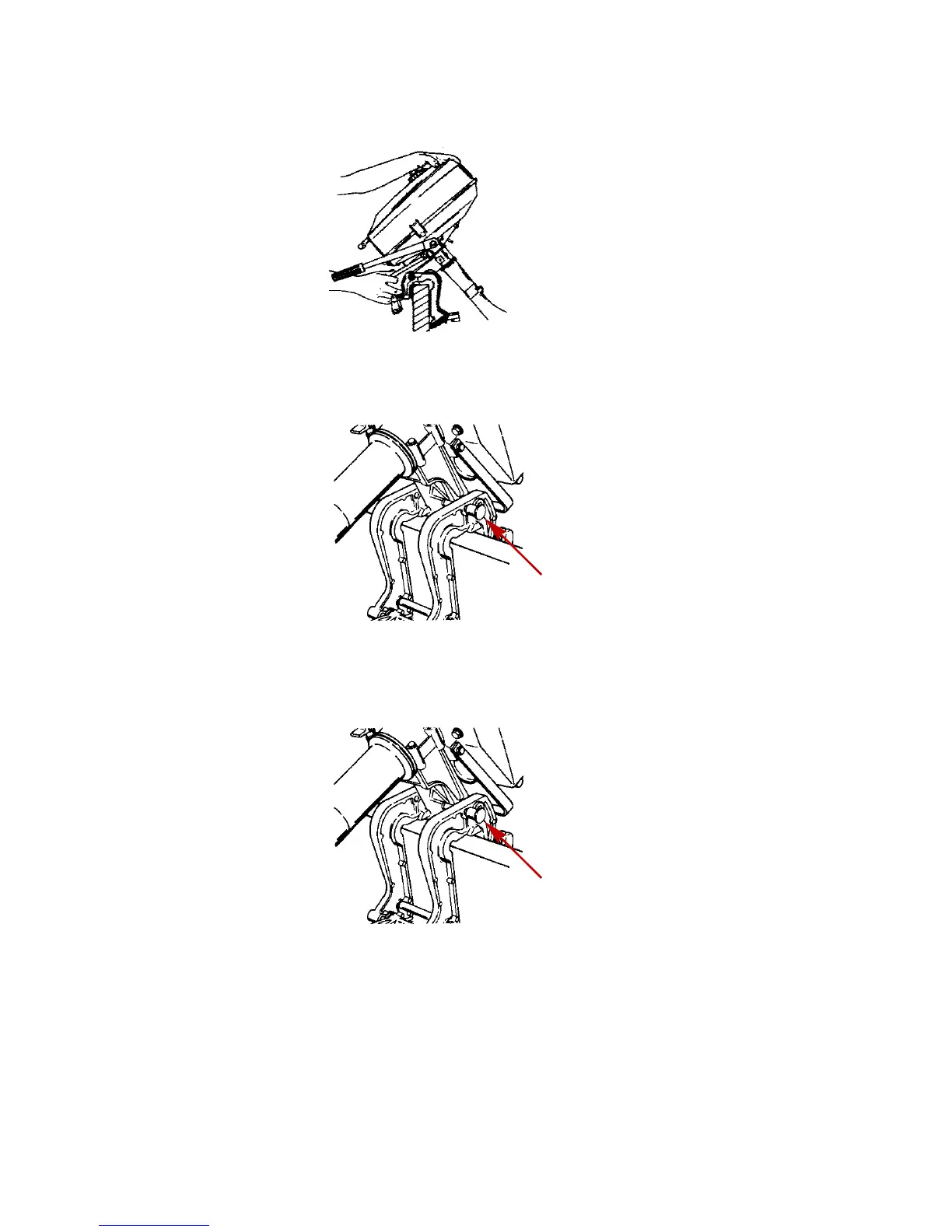

3. Take hold of the top cowl grip and raise outboard to the full up position.
28386
4. Push in the tilt support pin. Lower the outboard to rest on the tilt support
pin.
28387
LOWERING TO RUN POSITION
1. Lift the outboard and pull out the tilt support pin. Lower the outboard.
28387
2. Open the fuel tank vent and open the fuel shut‑off valve.
Setting The Operating Angle Of Your Outboard
The vertical operating angle of your outboard is adjusted by changing the
position of the tilt pin in the adjustment holes provided. Proper adjustment
allows the boat to achieve optimum performance, stability, and minimize
steering effort.
FEATURES AND CONTROLS
30 eng

Mercury 2.5 Specifications

General

Fuel Induction System	Carburetor
Ignition	CDI
Starting	Manual
Steering	Tiller
Cylinders	1
Recommended Fuel	87 Octane
Shaft Length	15 in (381 mm)
Horsepower	2.5 HP
Gear Shift	Forward, Neutral
