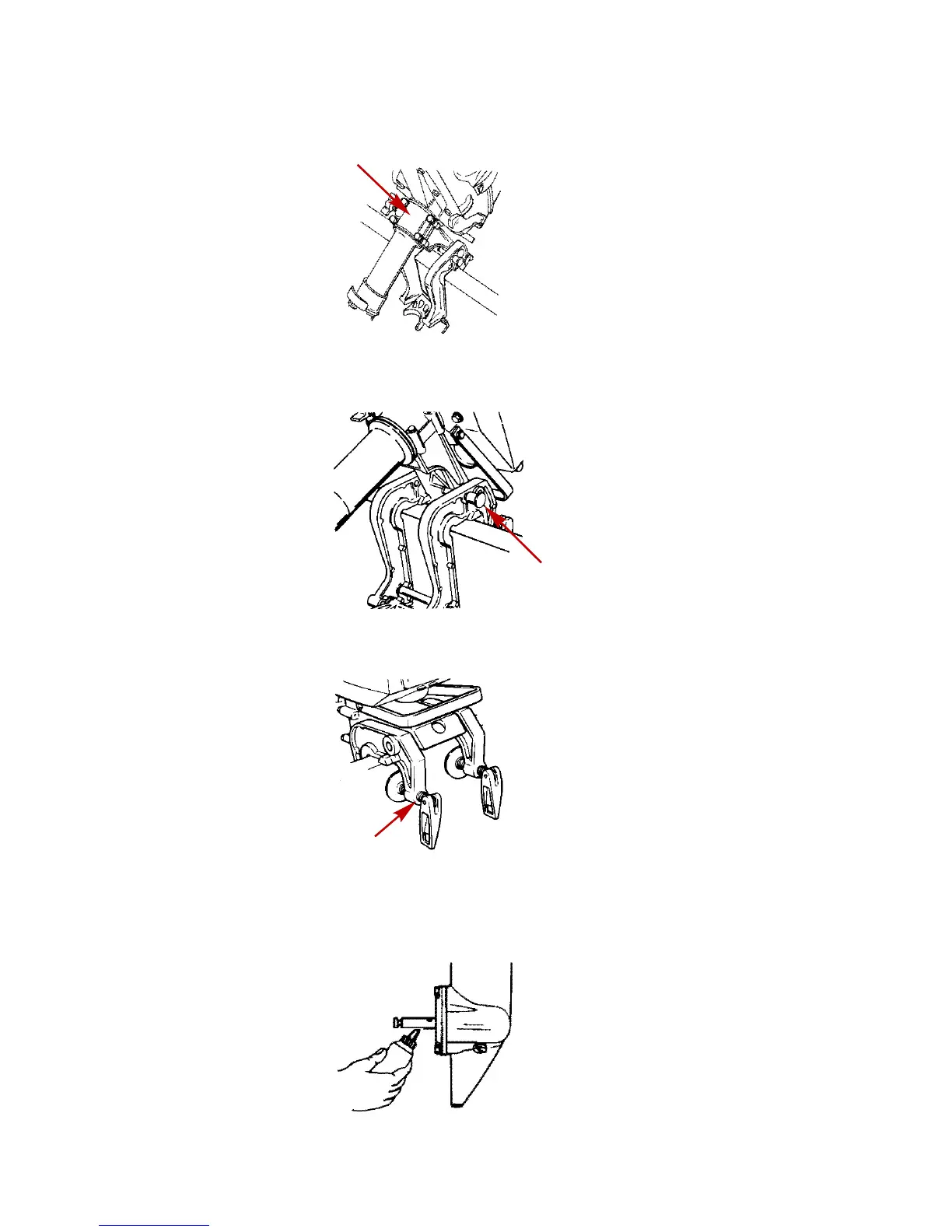

• Swivel bracket ‑ Remove four (4) bolts and rear cover and lubricate
the inner nylon bushings.
28714
• Tilt support pin.
28387
• Transom clamp screw threads.
28715
•
Propeller shaft ‑ Refer to Propeller Replacement for removal and
installation of the propeller. Apply 2‑4‑C with PTFE to the entire
propeller shaft to prevent the propeller hub from corroding to the shaft.
28707
MAINTENANCE
48 eng

Mercury 2.5 Specifications

General

Fuel Induction System	Carburetor
Ignition	CDI
Starting	Manual
Steering	Tiller
Cylinders	1
Recommended Fuel	87 Octane
Shaft Length	15 in (381 mm)
Horsepower	2.5 HP
Gear Shift	Forward, Neutral
