CHARGING & STARTING SYSTEM
Page 2B-50 90-883728 JULY 2001

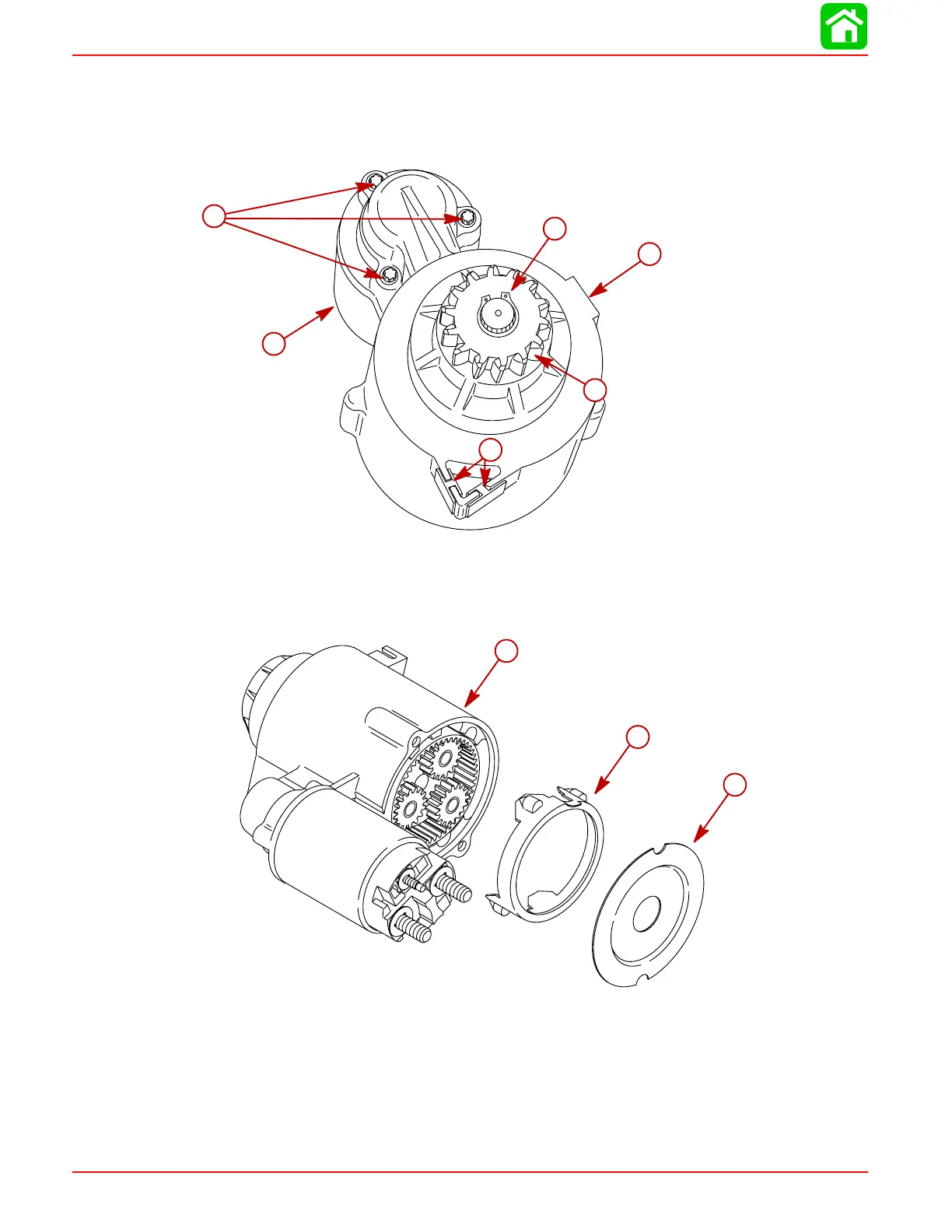

3. Attach solenoid arm to starter solenoid. Install starter solenoid in drive housing and
secure with 3 screws. Torque screws to 40 lb-in (4.5 N.m).
4. Install drive gear and secure with snap ring.
5. Reinstall rubber bumpers on housing.
58436
c
a
b
e
f
d
a-Drive Housing
b-Starter Solenoid
c-Screw (3) [Torque to
40 lb-in (4.5 N.m)
d-Drive Gear
e-Snap Ring
f-Bumpers
6. Install cushion and shield in drive housing.
58432
a
b
c
a-Shield
b-Cushion
c-Drive Housing
