CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-51
7. Install field frame over armature.
8. While holding brushes back, slide brush plate onto armature while aligning brush lead
grommet with slot in field frame.
9. Secure end plate to brush assembly with 2 screws. Torque screws to 30 lb-in (3.4 Nm)
NOTE: Prior to installing field frame assembly into drive housing, align slot in field frame
with plug in drive housing.

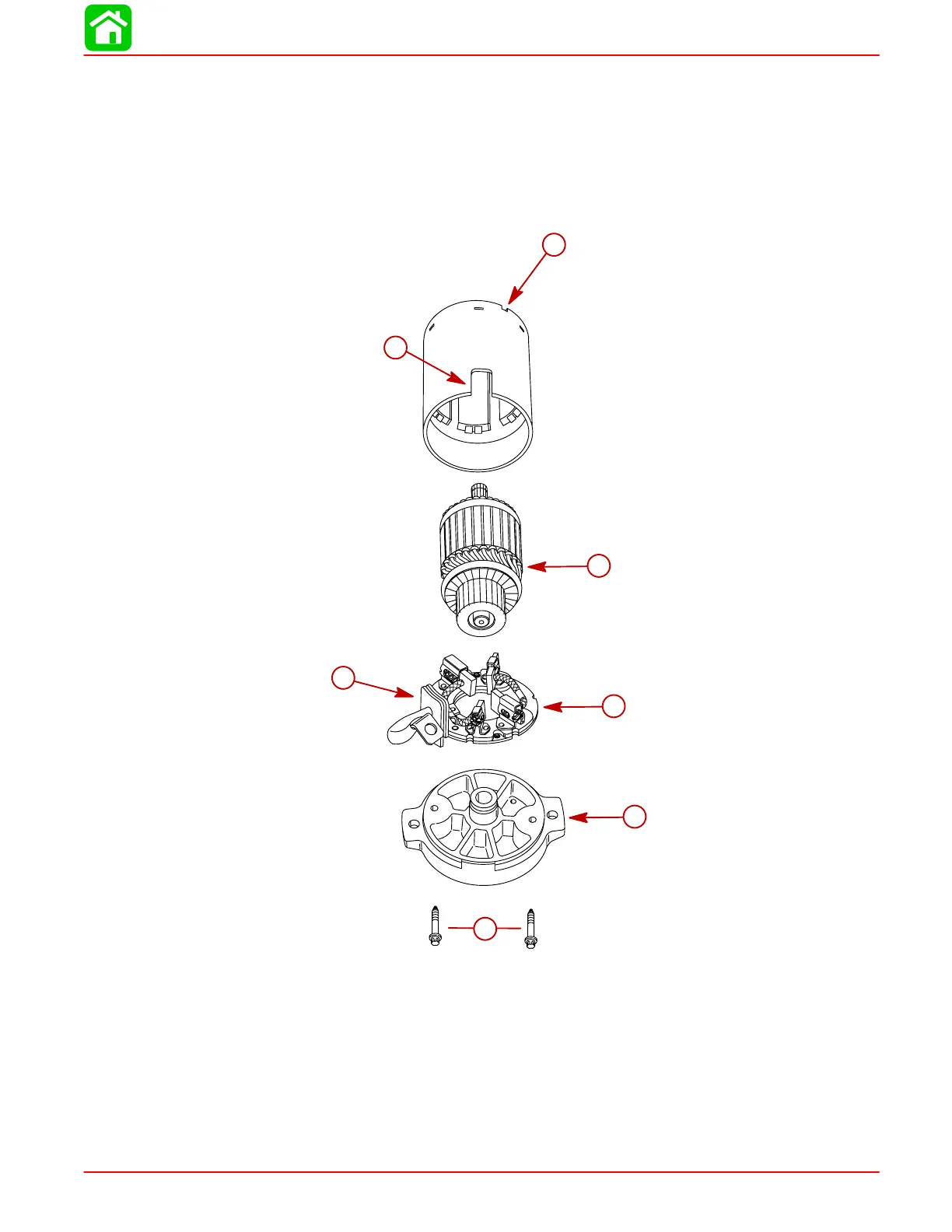

58435
a
b
c
d
f
e
g
a-Armature
b-Field Frame Grommet Slot
c-Brush Plate
d-Brush Lead Grommet
e-End Plate
f-Screws [Torque to 30 lb-in (3.4 Nm)]
g-Field Frame Plug Slot
