CHARGING & STARTING SYSTEM
Page 2B-52 90-883728 JULY 2001
10. Install field frame and end frame in drive housing.
11. Install through bolts and brush lead. Torque through bolts to 110 lb-in (12.5 Nm).
Torque brush nut to 55 lb-in (6 Nm).
58434
e
d
b
c
f
a

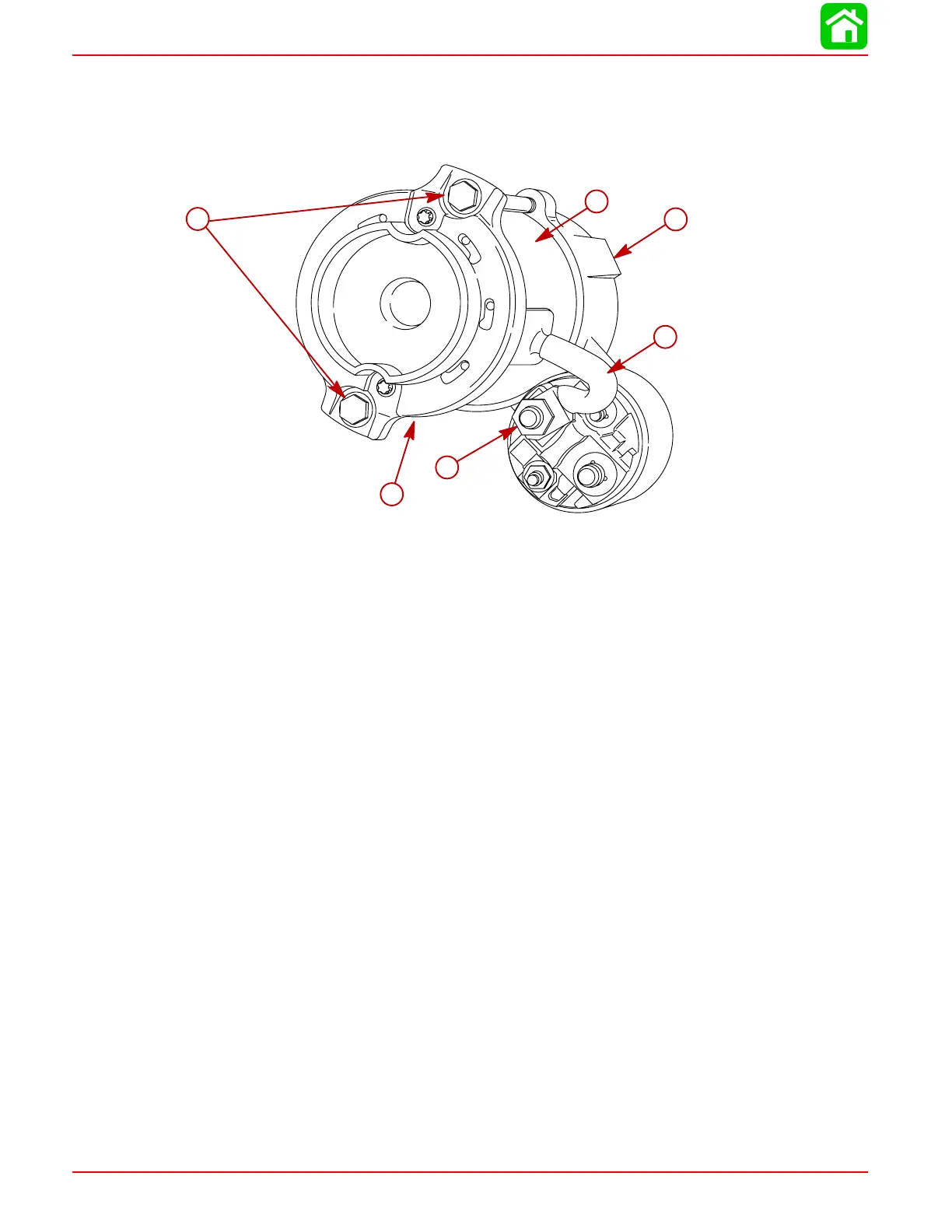

a-End Frame
b-Field Frame
c-Drive Housing
d-Through Bolts [Torque to 110 lb-in (12.5 Nm)]
e-Brush Lead
f-Brush Nut [Torque to 55 lb-in (6 Nm)]
