POWERHEAD
Page 4A-22 90-883728 JULY 2001
8. Slide outboard shift lever into neutral position.
9. Remove locknut and flat washer securing throttle cable and remove cable.
10. Remove locknut that secures shift cable latch assembly and remove latch, flat washer,
nylon wear plate, spring and shift cable from control cable anchor bracket.

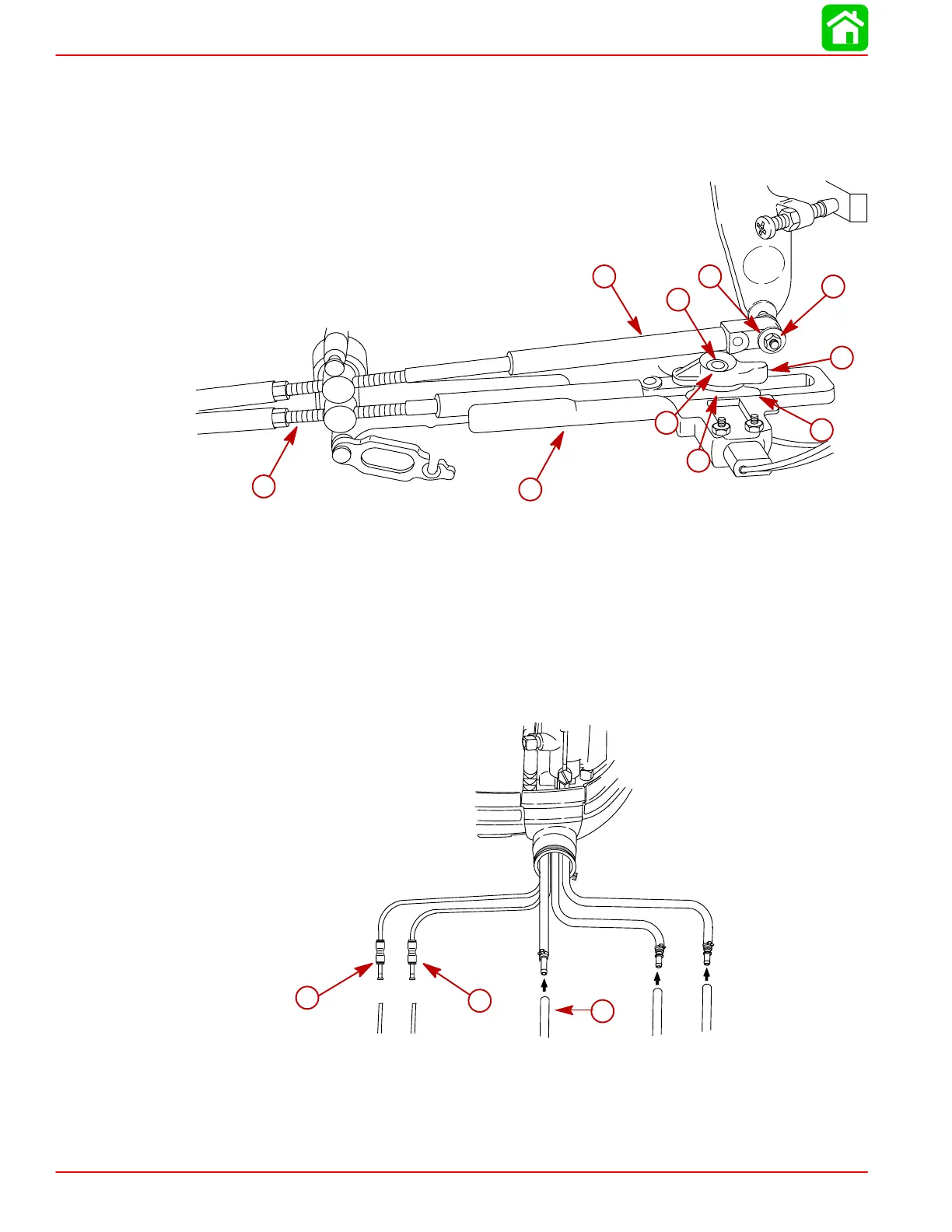

57838
a
b
d
e
f
g
h
i
c
j
a-Lock Nut (Throttle
Cable)
b-Flat Washer
c-Shift Cable Latch
d-Lock Nut (Shift Cable)
e-Flat Washer (Hidden
under nut)
f-Nylon Wear Plate
g-Spring (Hidden)
h-Shift Cable
i-Anchor Bracket
j-Throttle Cable
11. Disconnect input fuel line, water pressure hose and speedometer hose.
a
b
c
a-Input Fuel Hose
b-Water Pressure Hose (GRAY) (Analog Gauges)
c-Speedometer Hose (BLACK) (Analog Gauges)
