Mercury 225 User Manual

MAINTENANCE
46
20
20
20
20
30 30
30 30
30 30
5
ob01031
a
b
c
d
e
f
g
h
5
i
j

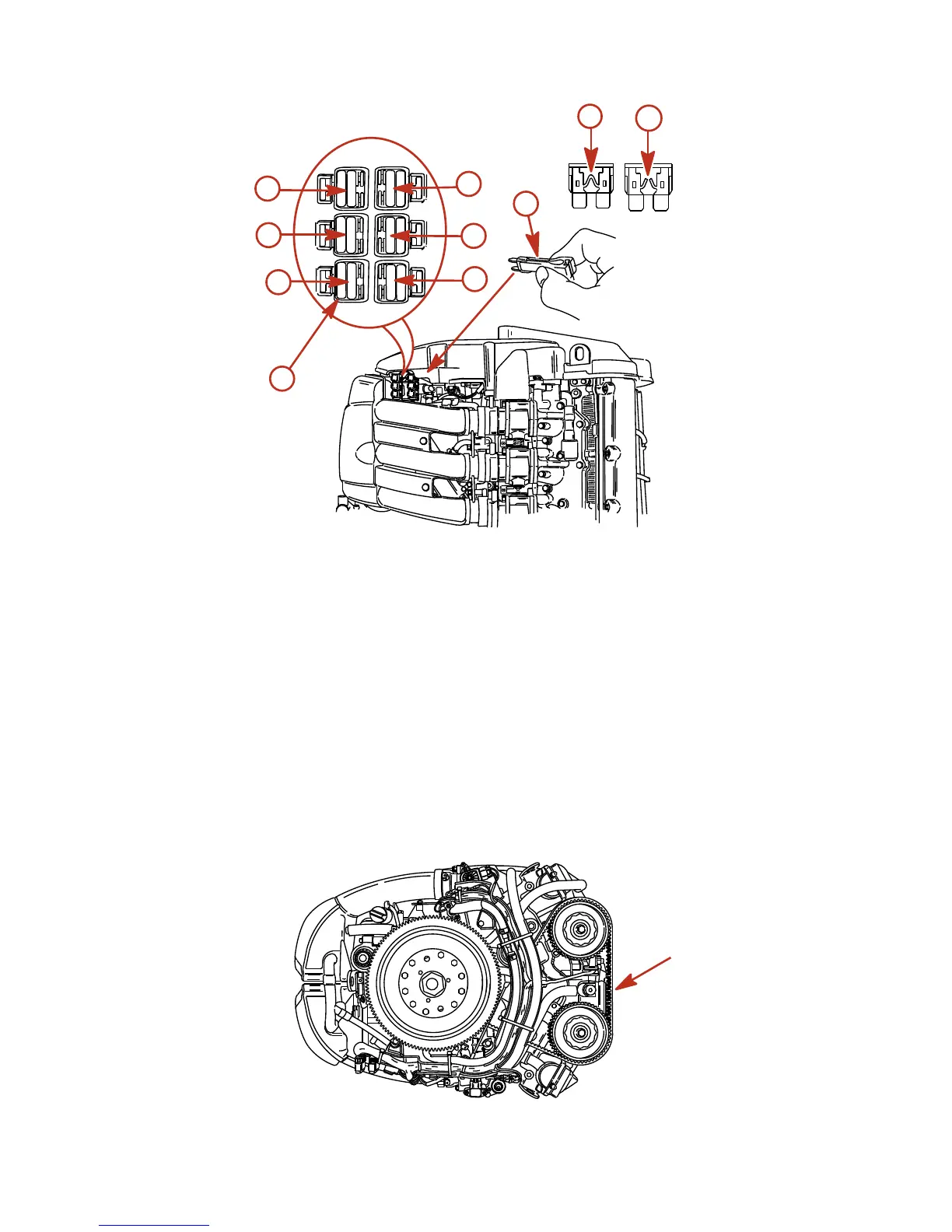

a - Spare fuses
b - Main fuse 2 - 30 amp fuse
c - Main fuse 1 - 30 amp fuse
d - Starter relay - 30 amp fuse
e - Fuel pump - 5 amp fuse
f - Main switch/trim switch - 20 amp fuse
g - Engine control unit/fuel injection pump - 20
amp fuse
h - Fuse puller
i - Good fuse
j - Blown fuse
Timing Belt Inspection
Inspect the timing belt and have it replaced by an authorized dealer if any of the following conditions are found.
1. Cracks in the back of the belt or in the base of the belt teeth.
2. Excessive wear at the roots of the cogs.
3. Rubber portion swollen by oil.
4. Belt surfaces roughened.
5. Signs of wear on edges or outer surfaces of belt.
ob01032

Mercury 225 Specifications

General

Fuel Induction System	Electronic Fuel Injection (EFI)
Horsepower	225 HP
Steering	Hydraulic Steering
Shaft Length	20"
Starting	Electric Start
Cylinders	V6
