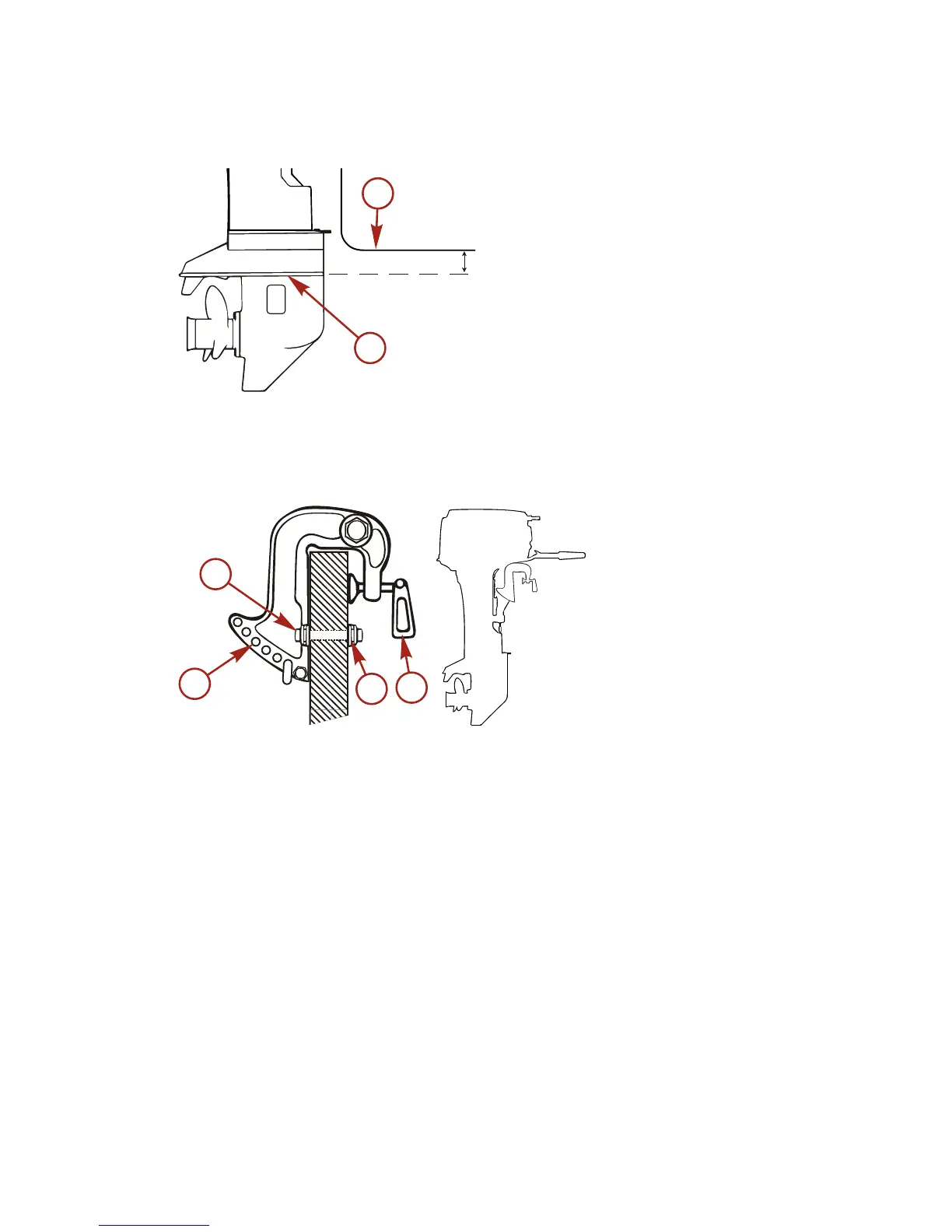

NOTE: Select an outboard motor that allows the clearance shown below.
a - Bottom of boat
b - Anti‑ventilation plate
4. After positioning the clamp brackets, attach it with the clamp screws then
drill two holes in the transom board, matching the holes in the clamp
bracket. Secure the engine with the supplied bolts and nuts. Be sure to
use the washers.
a - Trim position pin
holes
b - Bolt
c - Clamp screw
d - Nut
TRANSOM MATCHING
NOTE: Be sure that the anti‑ventilation plate of the outboard is below the water
surface when running at wide‑open throttle. In case the above condition cannot
be met due to a bottom shape of your boat, please consult the dealer.
