Mercury 250 Pro XS OptiMax

OUTBOARD INSTALLATION
124 eng

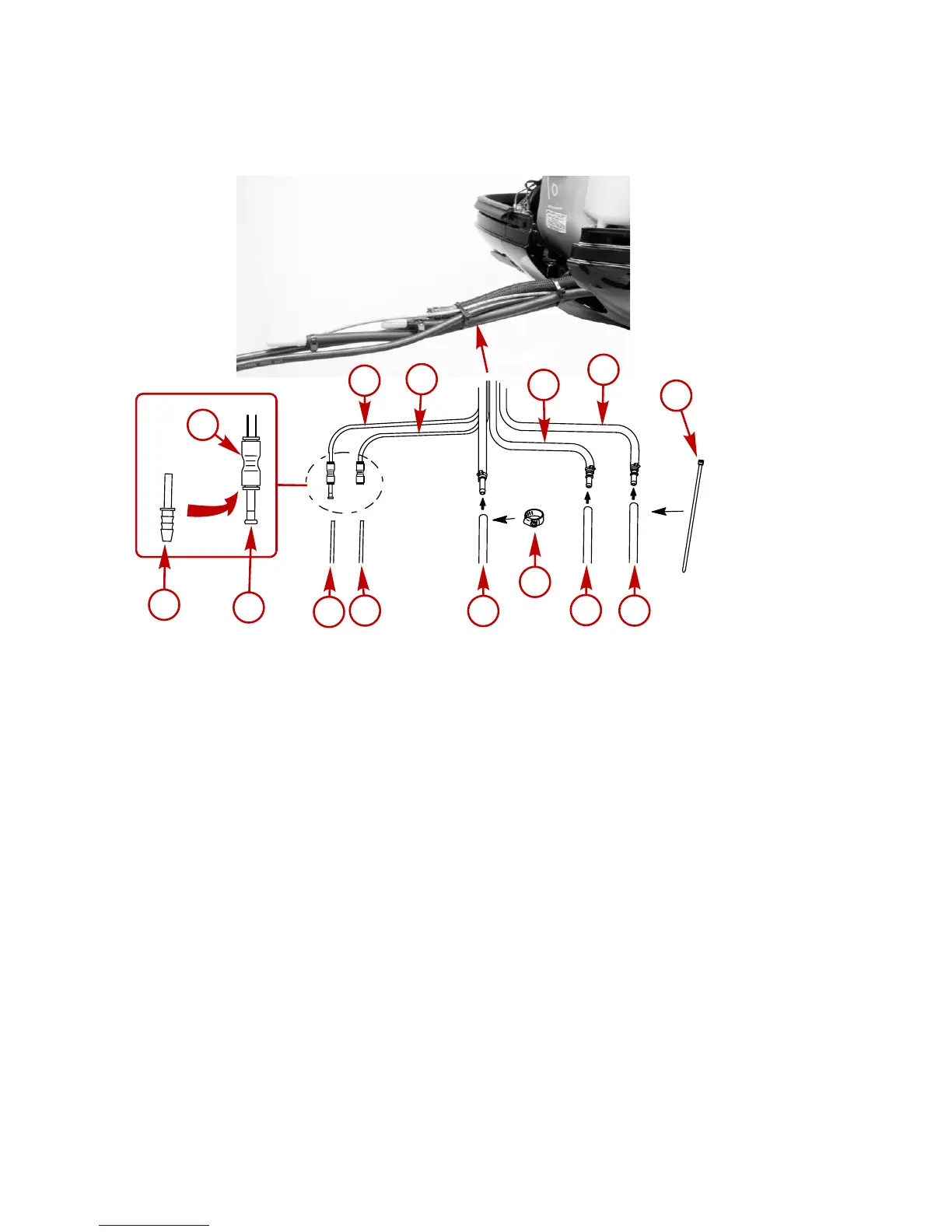

Make the water pressure gauge hose connection to the tubing as
shown.
a - Water pressure tube
b - Speedometer water pickup tube (if required)
c - Coupler
d - Plug
e - Barb hose fitting
f - Speedometer hose or tubing
g - Water pressure tube
h - Remote fuel hose
i - Hose clamp
j - Oil hose with blue stripe
k - Oil hose without blue stripe
l - Cable tie
c
e
d
g
f
b
a
h
i
j
k
l
j
k
