OUTBOARD INSTALLATION
eng 125
INSTALLING THE SHIFT CABLE - MODELS WITH 25.4 MM
(1.0 IN.) DIAMETER PROPELLER SHAFT
IMPORTANT: The shift cable is the first cable to move when the
remote control handle is moved out of neutral, so install/connect
it to the engine first.
Locating the Center Point of the Shift Cable
IMPORTANT: Locate the center point of the slack or lost motion
that exists in the shift cable for proper adjustment of the shift
cable.
1. Mark the forward position as follows:
a. Move the remote control handle from neutral into forward
and advance the handle to the full speed position. Ensure
the throttle control lever is touching the throttle control
lever stop screw.
b. Slowly return the handle back to the neutral detent
position.
c. Place a mark on the shift cable against the cable end
guide.

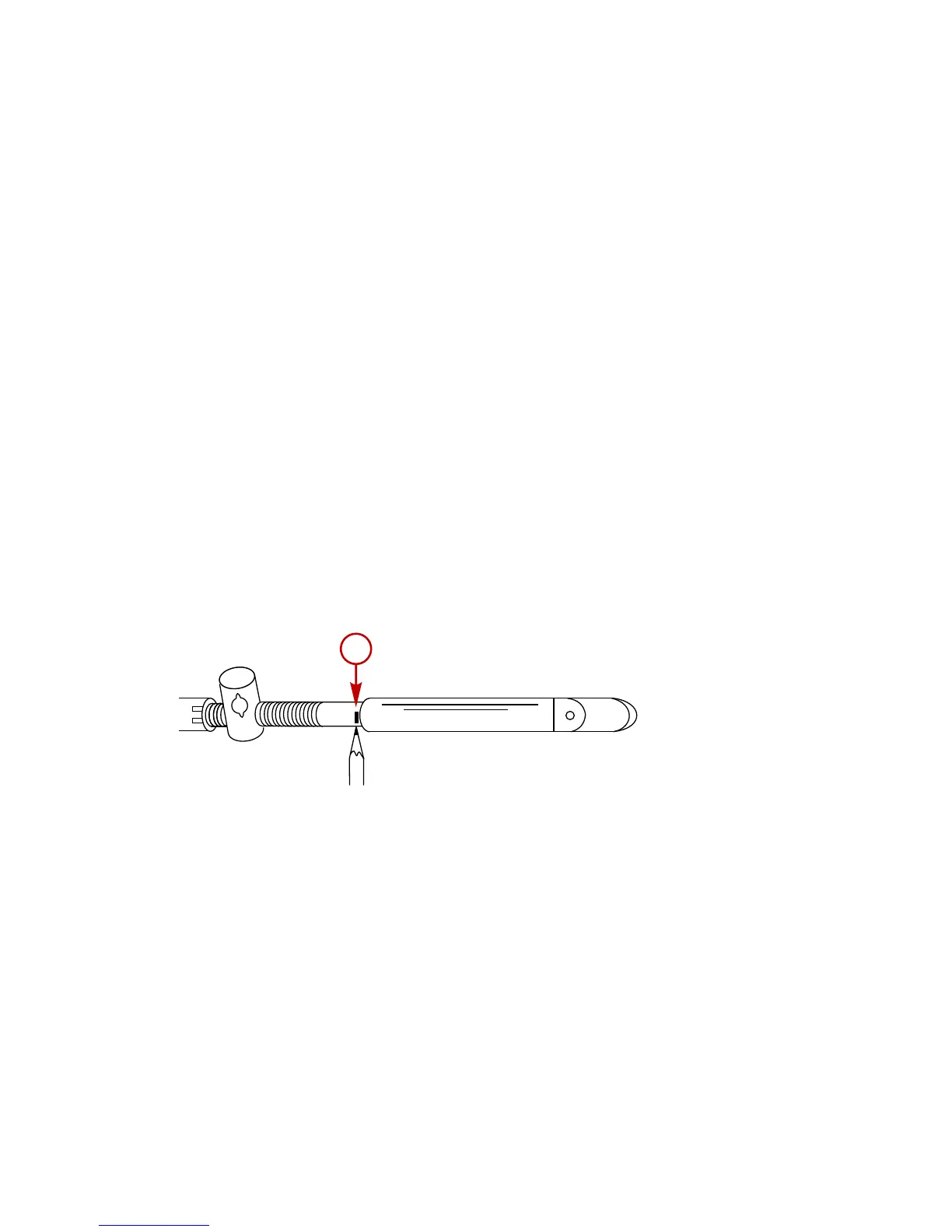

a - Forward position mark
2. Mark the reverse position as follows:
a. Move the remote control handle into reverse and
advance the handle to the full speed position. Ensure the
throttle control lever is touching the throttle control lever
stop screw.
b. Slowly return the handle back to the neutral detent
position.
