OUTBOARD INSTALLATION
eng 129
a. Move the remote control handle into reverse and
advance the handle to the full speed position. Ensure the
throttle control lever is touching the throttle control lever
stop screw.
b. Slowly return the handle back to the neutral detent
position.

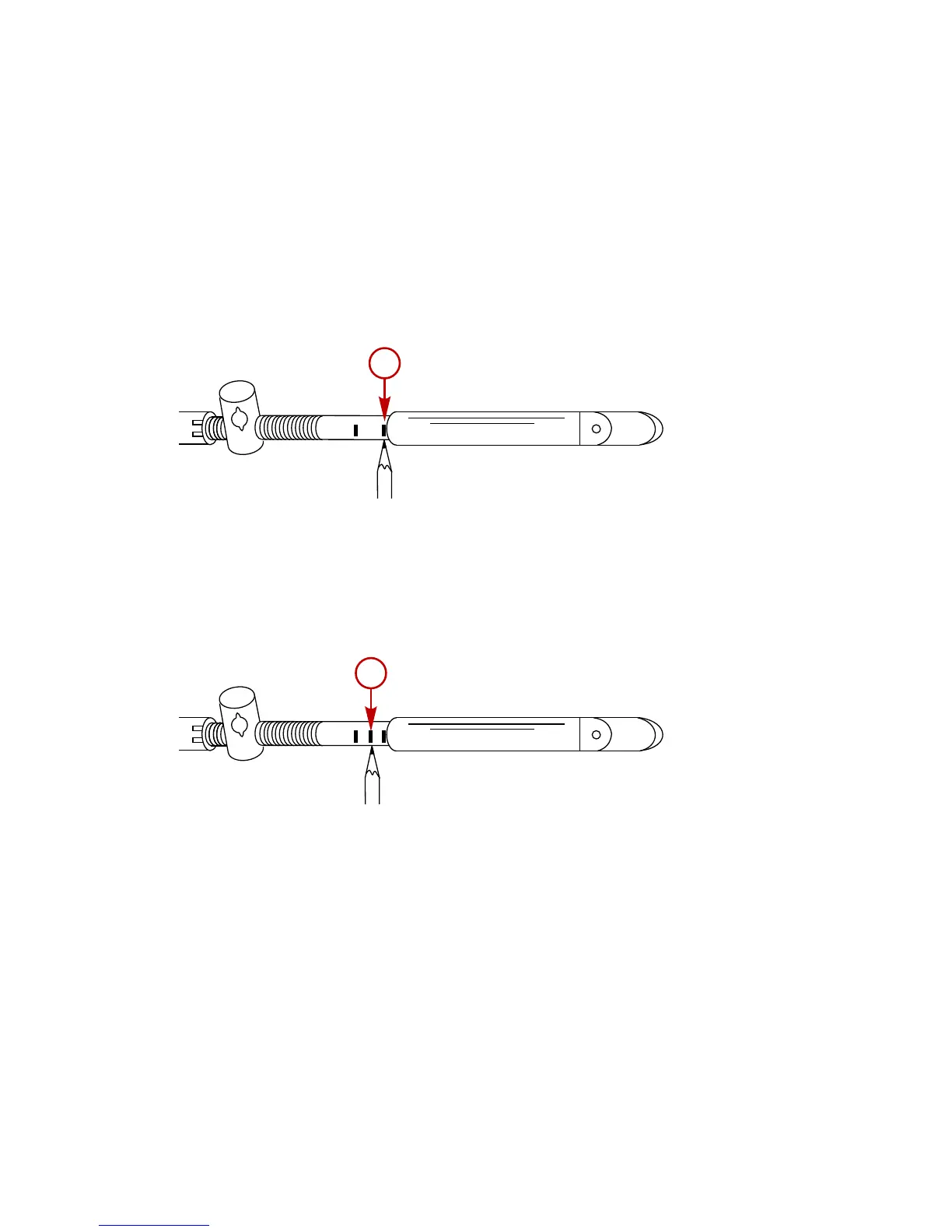

c. Place a mark on the shift cable against the cable end
guide.
a - Reverse position mark
3. Mark the center on the shift cable midway between the
forward and reverse marks.
a - Center mark (standard and counter rotation outboards)
4. Align the cable end guide against this center mark when
installing the cable to the engine.
5. Position the remote control and outboard into neutral
position.
6. Slide the shift cable retainer forward until resistance is felt,
then slide the cable anchor toward the rear until resistance
is felt.
4356
a
4361
a
