OUTBOARD INSTALLATION
130 eng

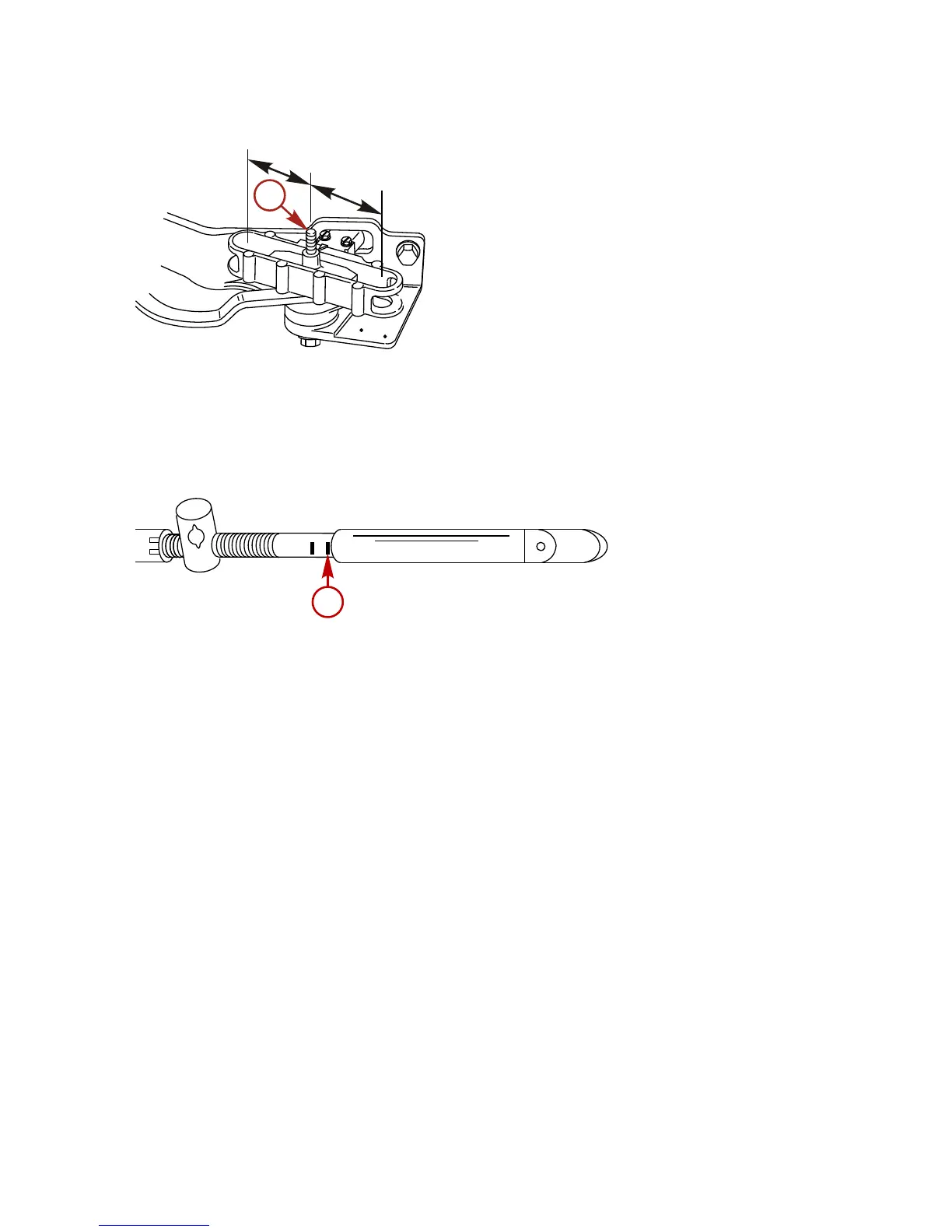

7. Center the anchor pin between these resistance points.
a - Anchor pin
Adjusting the Shift Cable
To adjust the shift cable:
1. Align the shift cable end guide with the center mark as
instructed in Locating the Center Point of the Shift Cable.
a - Center mark
2. Place the shift cable end guide on the anchor pin and adjust
the cable barrel so that it slips freely into the barrel holder.
2675
a
4362
a
