OUTBOARD INSTALLATION
136 eng

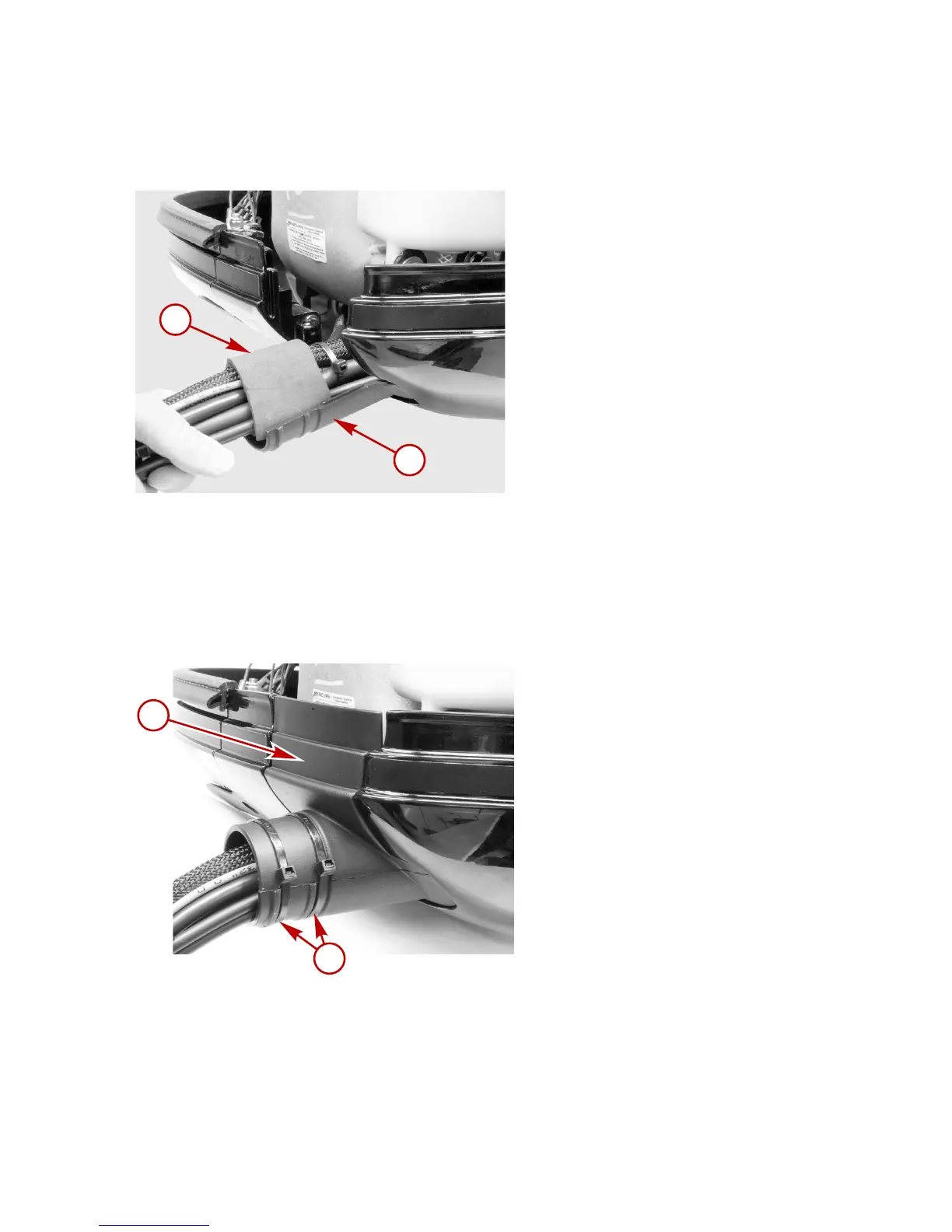

2. Place the neoprene wrap around the wiring, hoses, and
control cables, and place into the lower half of the front
clamp.
a - Neoprene wrap
b - Lower half of the front clamp
3. Join the top half of the front clamp with the bottom half.
Secure both halves together with cables ties.
a - Top half of the front clamp
b - Cable ties
4. Secure the front clamp into the bottom cowl with the retainer
and two screws.
a
b
29073
a
b
29074
