Section 1 - Getting to Know Your Power Package
90-8M0113856 eng DECEMBER 2015 Page 13

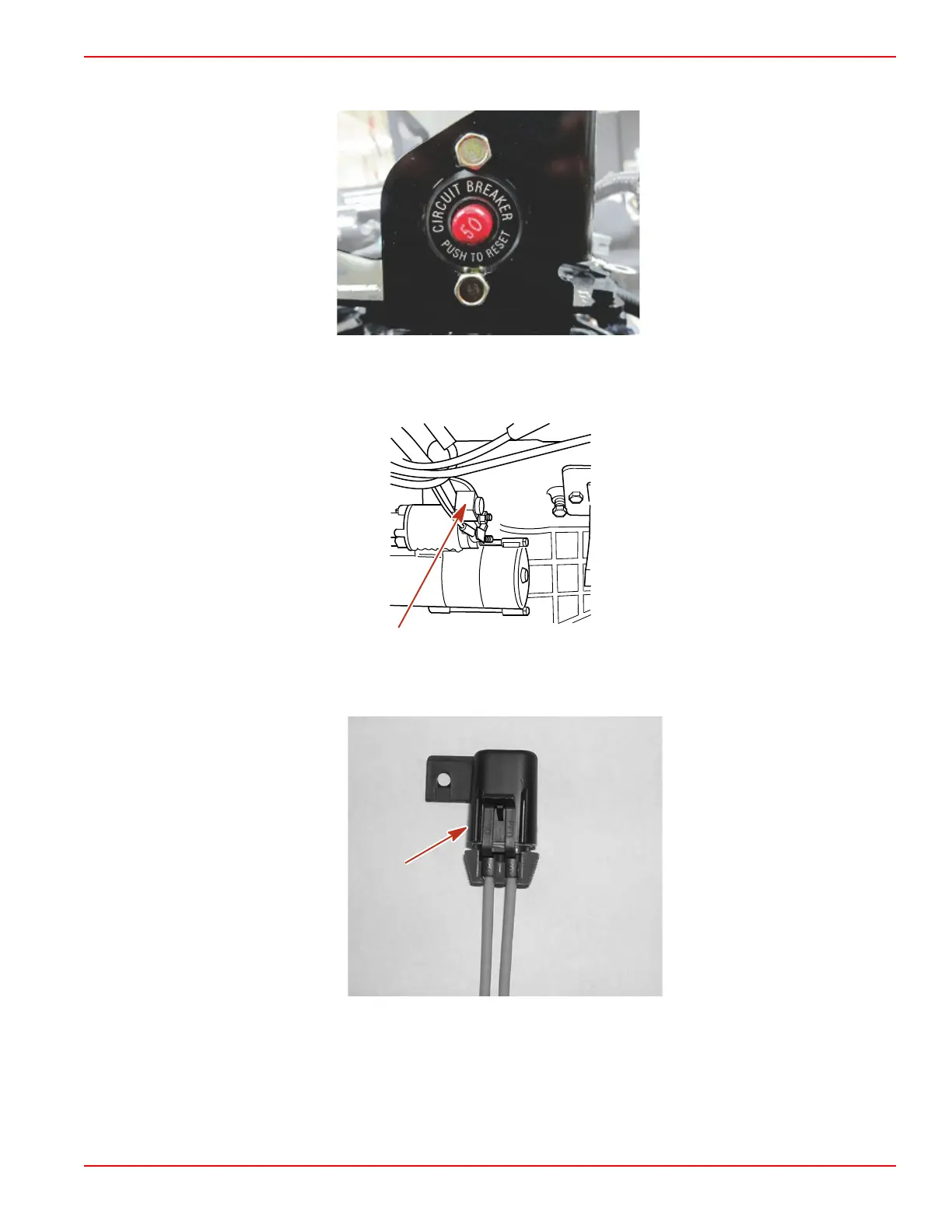

A circuit breaker protects the engine wiring harness and the instrumentation power lead. Reset the breaker by pushing the red
button.
Engine wiring harness and instrumentation circuit breaker
A 90‑amp fuse, located on the large post of the starter solenoid, protects the engine wiring harness if an electrical overload
occurs.
mc74907-1
Engine wiring harness fuse
A 15‑amp accessory fuse is located on the rear of the engine. This fuse protects the accessory circuits. A 20‑amp fuse is
located on the top of the engine to protect the TKS circuit.
7524
Accessory fuse
