Section 4 - Maintenance
Page 60 90-8M0113856 eng DECEMBER 2015

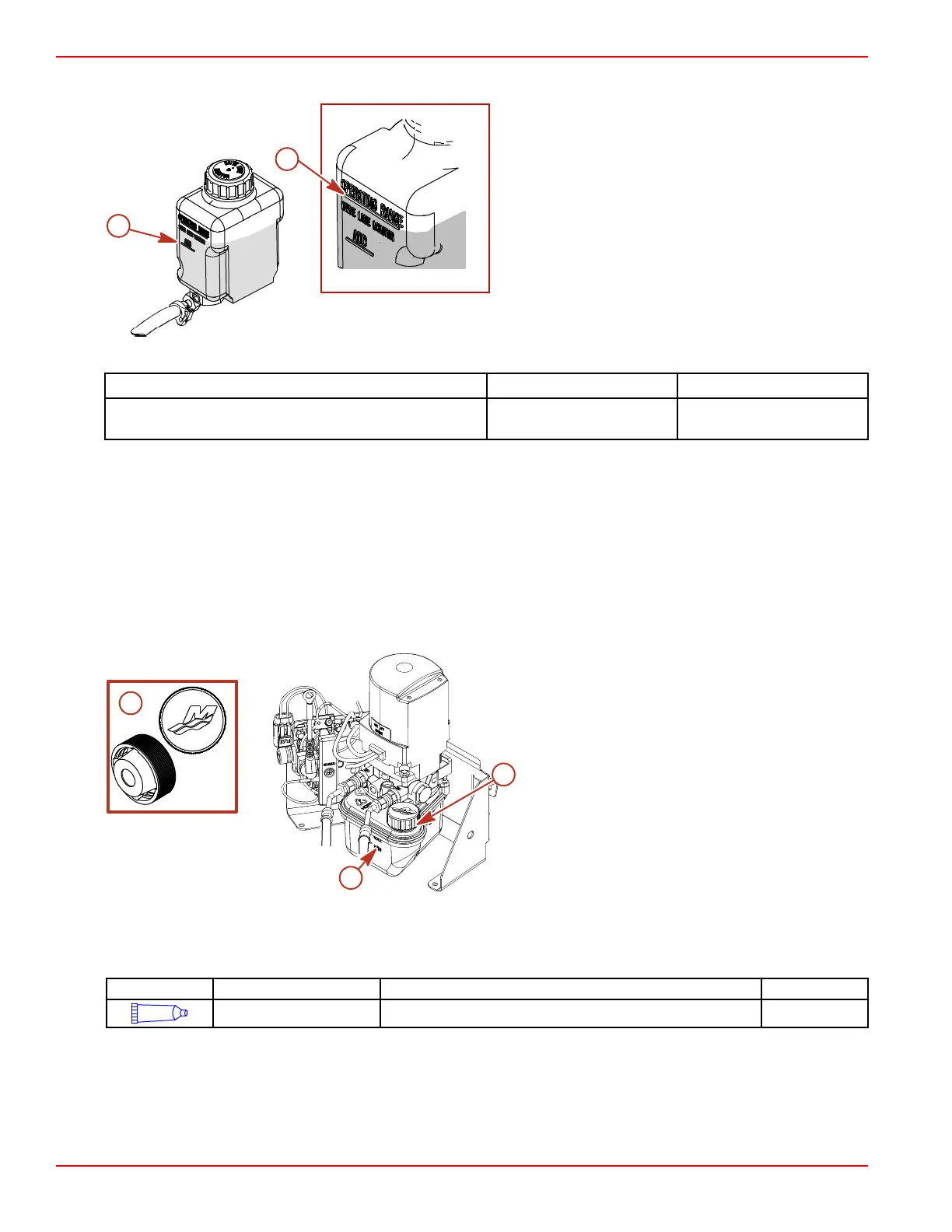

10. Ensure that the rubber gasket is inside the cap and install. Do not over tighten.
a - "ADD" mark
b - "OPERATING RANGE" mark
NOTE: Oil capacity includes the gear lube monitor.
Model
Capacity Fluid Type
Alpha One 1892 ml (64 oz)
High Performance Gear
Lubricant
11. Remove the pump from the oil fill and drain hole. Quickly install the sealing washer and oil fill and drain screw. Tighten
securely.
12. Recheck the oil level after the first use.
IMPORTANT: The gear lube level fluctuates during operation. Check when the engine is cold.
Power Trim Fluid
Checking
IMPORTANT: Check the oil level with the sterndrive unit in the full down/in position only.
1. Place the sterndrive unit in full down/in position.
2. Remove the fill cap from the reservoir.
a - Fill cap
b - Reservoir fill neck
c - "MIN" and "MAX" lines
3. Observe the oil level. Level must be between the "MIN" and "MAX" lines on the reservoir.
NOTE: Fill cap is vented.
4. Fill as necessary with the specified fluid.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering Fluid Power trim pump 92-858074K01
Filling
1. Remove the fill cap from the reservoir.
2. Add lubricant to bring level to the bottom of the filler neck.
19948
b
a
b
c
a
5573
