Mercury 300XS OptiMax User Manual

FEATURES AND CONTROLS
52
1. Engage the tilt support lever by pushing the metal stop and
rotating the knob to bring the support lever upward.
b
c
a

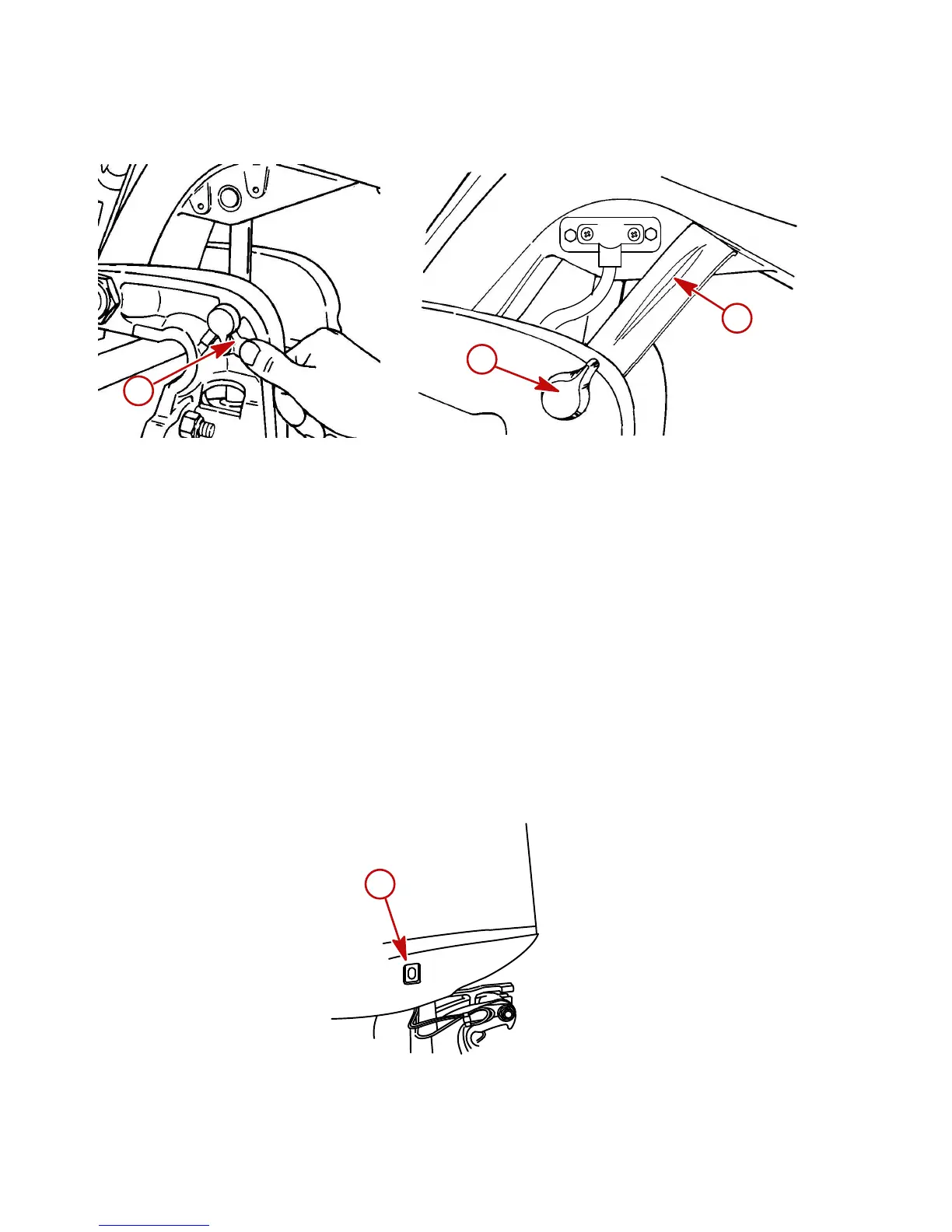

or33-1
a - Tilt support lever
b - Metal stop
c - Knob
2. Lower the outboard to rest on the tilt support lever.
3. Disengage the tilt support lever by raising the outboard off the
support lever and rotating the lever until it locks. Lower the
outboard.
Auxiliary Tilt Switch
This switch can be used to tilt the outboard up or down using the
power trim system.
or54-1
a
a - Auxiliary tilt switch

Mercury 300XS OptiMax Specifications

General

Engine Type	2-Stroke
Horsepower	300 HP
Alternator Output	60 amp / 756 watt
Gear Ratio	1.75:1
Starting System	Electric
Fuel System	2-Stage Direct Fuel Injection (DFI)
Weight	505 lbs / 229 kg
Cylinders	6
Steering	Hydraulic
Shaft Length	25"
