Mercury 300XS OptiMax User Manual

FEATURES AND CONTROLS
53
Manual Tilt Operation
If the outboard cannot be tilted using the power trim/tilt switch, the
outboard can be tilted manually.

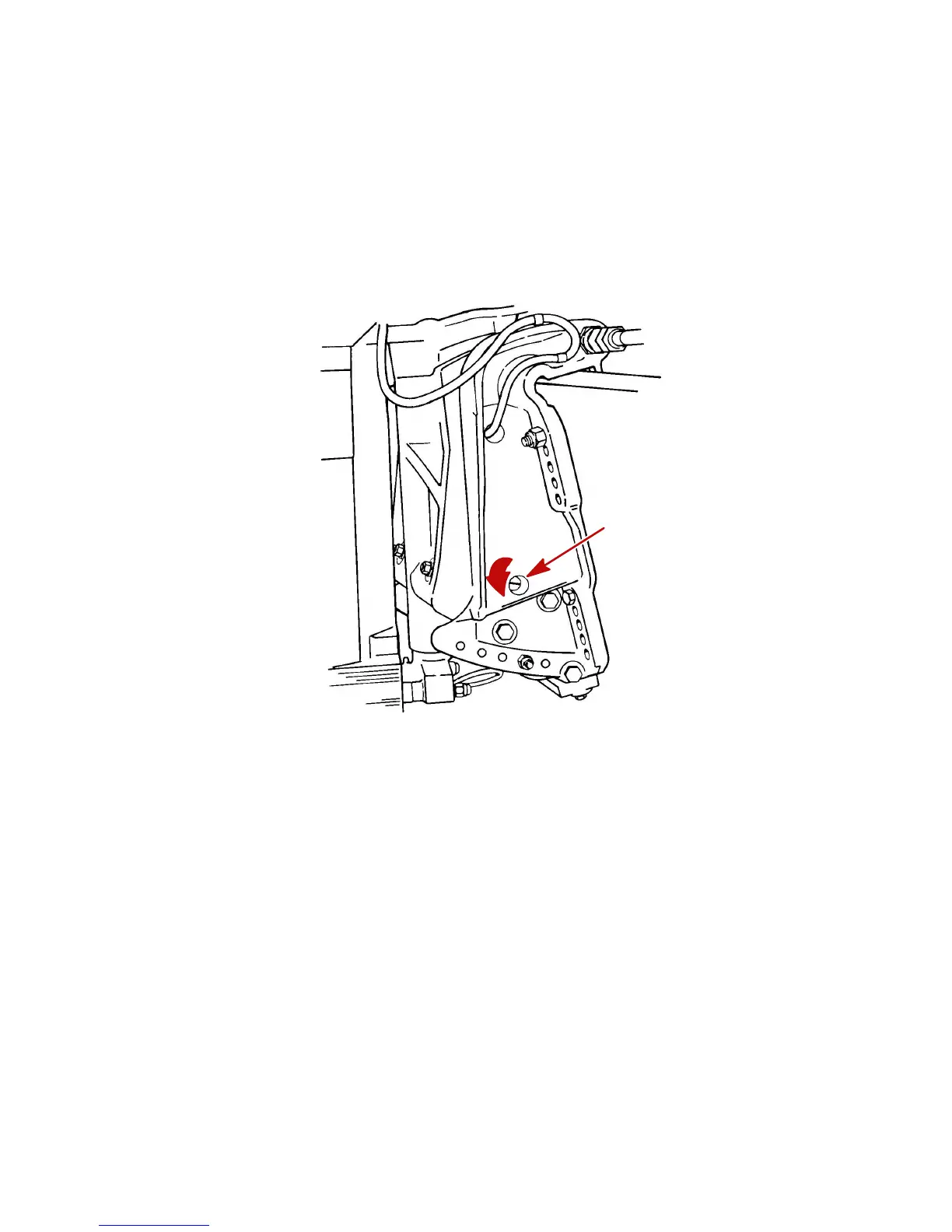

1. Turn out the manual tilt release valve three turns
(counter-clockwise). This allows manual tilting of the
outboard.
or34-1
2. Tilt the outboard to the desired position and tighten the manual
tilt release valve.
NOTE: The manual tilt release valve must be tightened before
operating the outboard to prevent the outboard from tilting up
during reverse operation.

Mercury 300XS OptiMax Specifications

General

Engine Type	2-Stroke
Horsepower	300 HP
Alternator Output	60 amp / 756 watt
Gear Ratio	1.75:1
Starting System	Electric
Fuel System	2-Stage Direct Fuel Injection (DFI)
Weight	505 lbs / 229 kg
Cylinders	6
Steering	Hydraulic
Shaft Length	25"
