Mercury 45 Operator's Manual

FEATURES & CONTROLS
35
ob00344

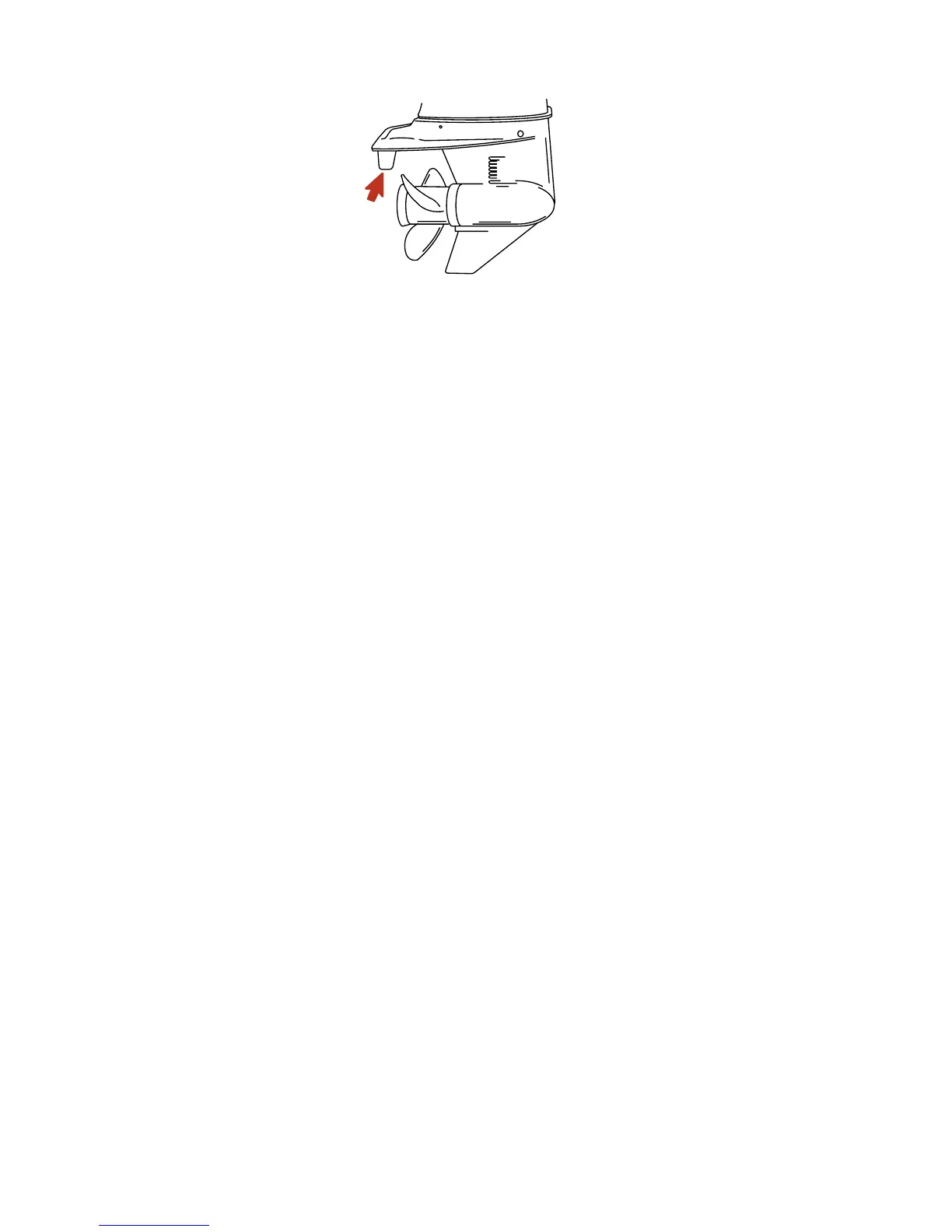

NOTE: Trim tab adjustment will have little effect reducing steering torque if the outboard is installed with the
anti‑ventilation plate approximately 50 mm (2 in.) or more above the boat bottom.
MODELS WITHOUT POWER TRIM
Operate your boat at normal cruising speed trimmed to desired position by installing the tilt pin in the desired tilt
pin hole. Turn your boat left and right and note the direction the boat turns more easily.
If adjustment is necessary, loosen trim tab bolt and make small adjustments at a time. If the boat turns more easily
to the left, move the trailing edge of trim tab to the left. If the boat turns more easily to the right move the trailing
edge of trim tab to the right. Retighten bolt and retest.
MODELS WITH POWER TRIM
Operate your boat at normal cruising speed, trimmed to desired position. Turn your boat left and right and note the
direction the boat turns more easily.
If adjustment is necessary, loosen trim tab bolt and make small adjustments at a time. If the boat turns more easily
to the left, move the trailing edge of trim tab to the left. If the boat turns more easily to the right move the trailing
edge of trim tab to the right. Retighten bolt and retest.

Mercury 45 Specifications

General

Horsepower	45 HP
Cylinders	3
Starting	Electric
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Exhaust	Through Prop
Shaft Length	20 in
